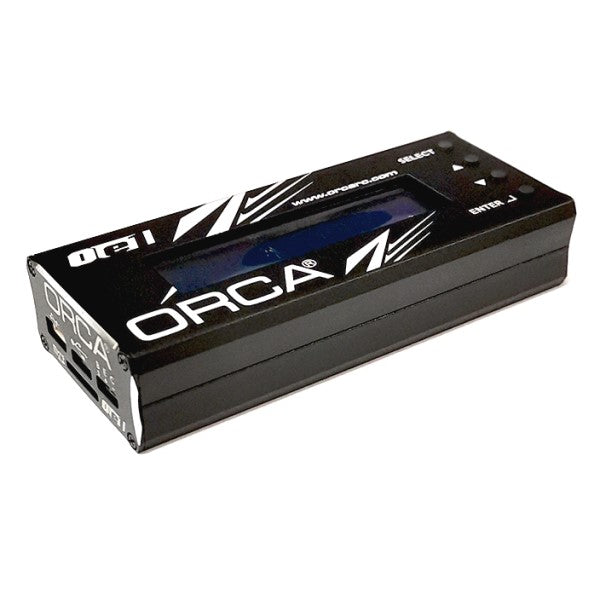

ORCA Program Card - for all OE1 series speed controllers #OR-PR19OE1CARD

Supports all ORCA "OE" series ESC's including;

• OE1
• OE101
• OE101S
• OE101 Stock Spec (OR-ES19OE1012S)
• OE1-1S
• OE1 WLE Worlds Limited Edition (OR-ES22OE1-WLE)
• OE1.2 (OR-ES22OE12-4C)
• Blinky Pro
• TOTEM 1S (OR-ES23TOTEM1S)
• TOTEM 2S (OR-ES22TOTEM2S)
• OE1-1S Mk 2 (OR-ES23OE11SM2)
• OE1 Mk 2 (OR-ES24OE1MKII)
• OE1 WLEB Blinky (OR-ES25OE1WLEB)


  Note:

  If you already have a OE1 program card and buy a new ORCA speed controller, it might be necessary to update your program card. Especially with new product releases this can happen.

  How to update your OE1 Program Card:

  This is a step by step guide how you can update your ORCA program card. You always have to update the program card first, before updating your speed controller.

  The latest firmware version you can find in the "Support" section on the ORCA website. Usually the latest version is right at the top:

  http://www.orcarc.com/firmware/

  1. Download the current firmware from the ORCA website and save it on a SD card with max. 32GB and FAT32 format.
  2. Insert the SD-Card into the ORCA program card and connect it to the speed controller with the included wire.
  3. Press and HOLD the ENTER button while you switch on the ESC.
  4. Now the program card displays the currently installed firmware version. Press ENTER again. Now you can select the firmware version you want to install.
  5. Select the firmware version and press again ENTER to start the update process.
  6. This will take around one minute. Once finished the program card is again ready to use.

  If you also want to update your ESC afterwards the process is very similar. The main difference is, that you do NOT have to hold the ENTER button while you switch on the ESC. Afterwards select firmware update on your program card. All the other steps are the same as above.
