Description

Features

Performance

• 1:12 scale shaft-driven 4WD truggy.
• High-performance 2845-4700KV 4-pole brushless motor.
• Programmable 60A brushless ESC.
• Supports 2S and 3S LiPo batteries.
• Maximum motor speed up to 60,000 RPM.
• 360A ESC burst current capability.
• XT60 battery connector.

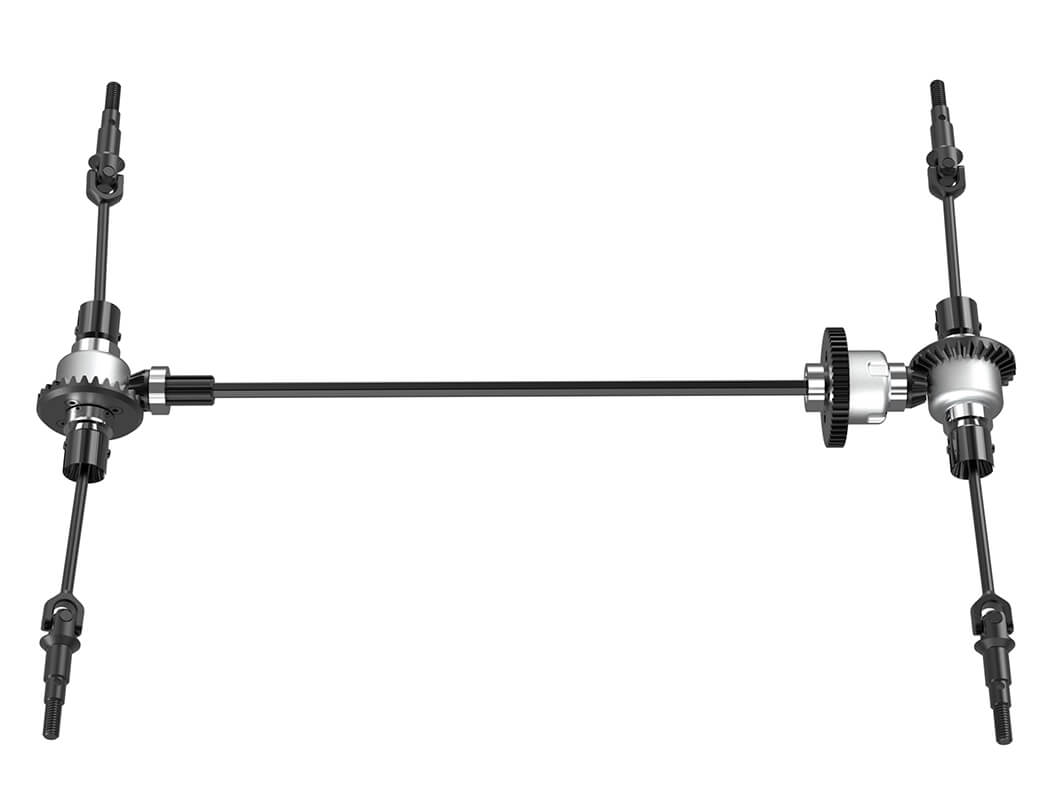

Heavy-Duty Drivetrain

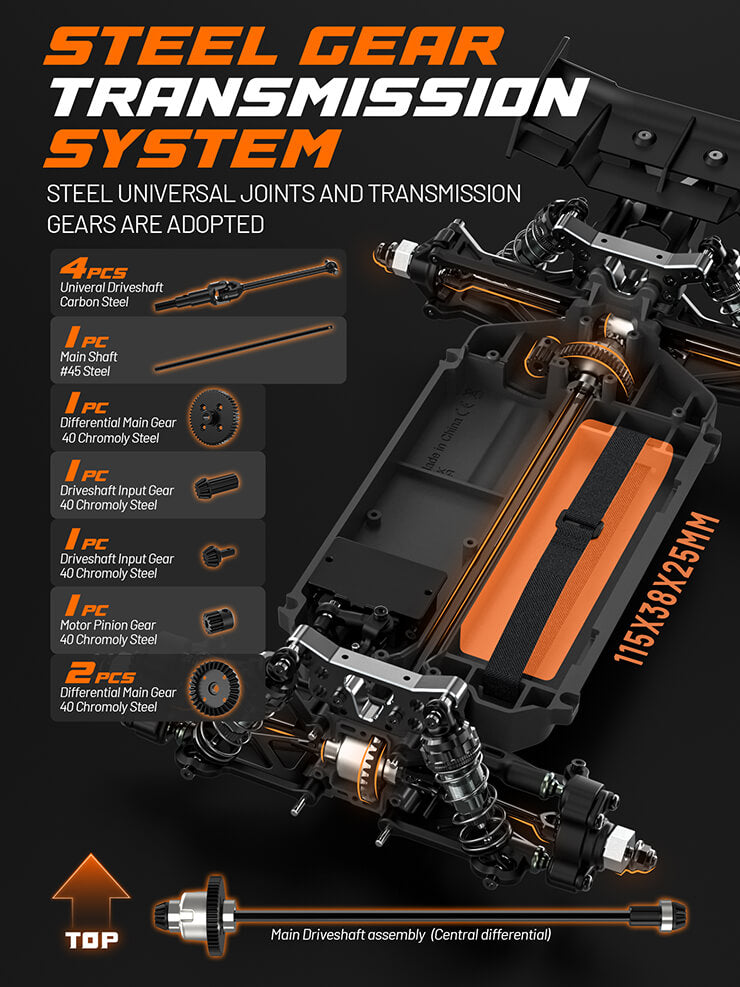

• Upgraded steel gear transmission system.
• 40Cr chromoly steel differential gears.
• 40Cr chromoly steel pinion gear.
• 40Cr chromoly steel transmission input gears.
• Steel universal joint driveshafts.
• Metal centre driveshaft.
• Metal differential sun and planetary gears.

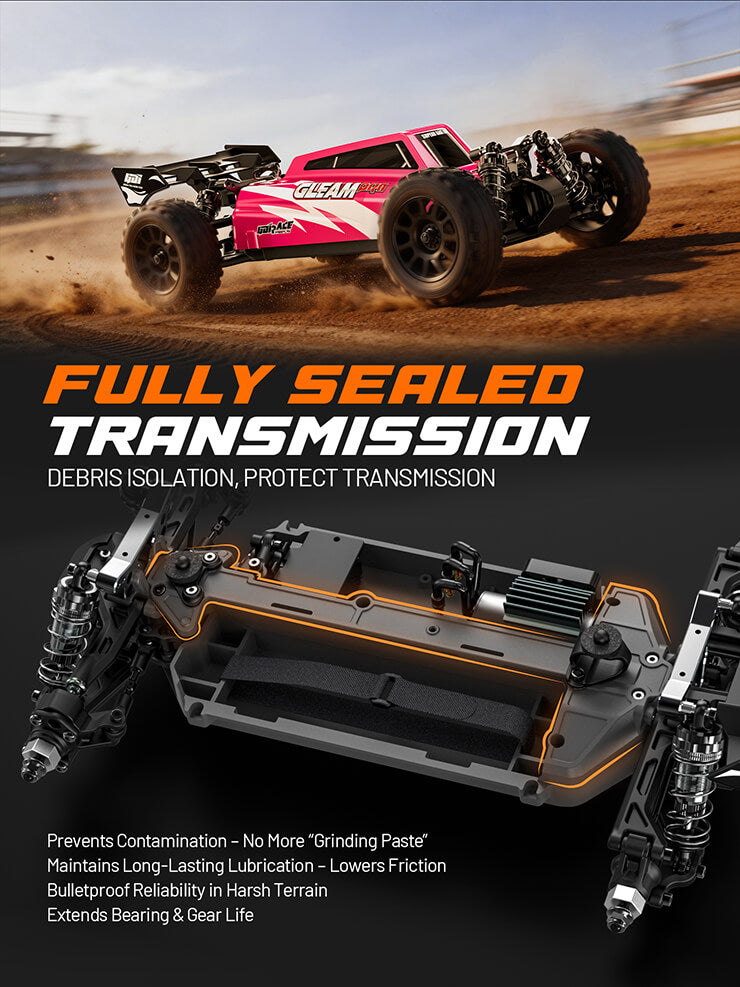

• Fully sealed transmission housing.
• Designed for improved durability under high-power brushless operation.

Maintenance-Friendly Design

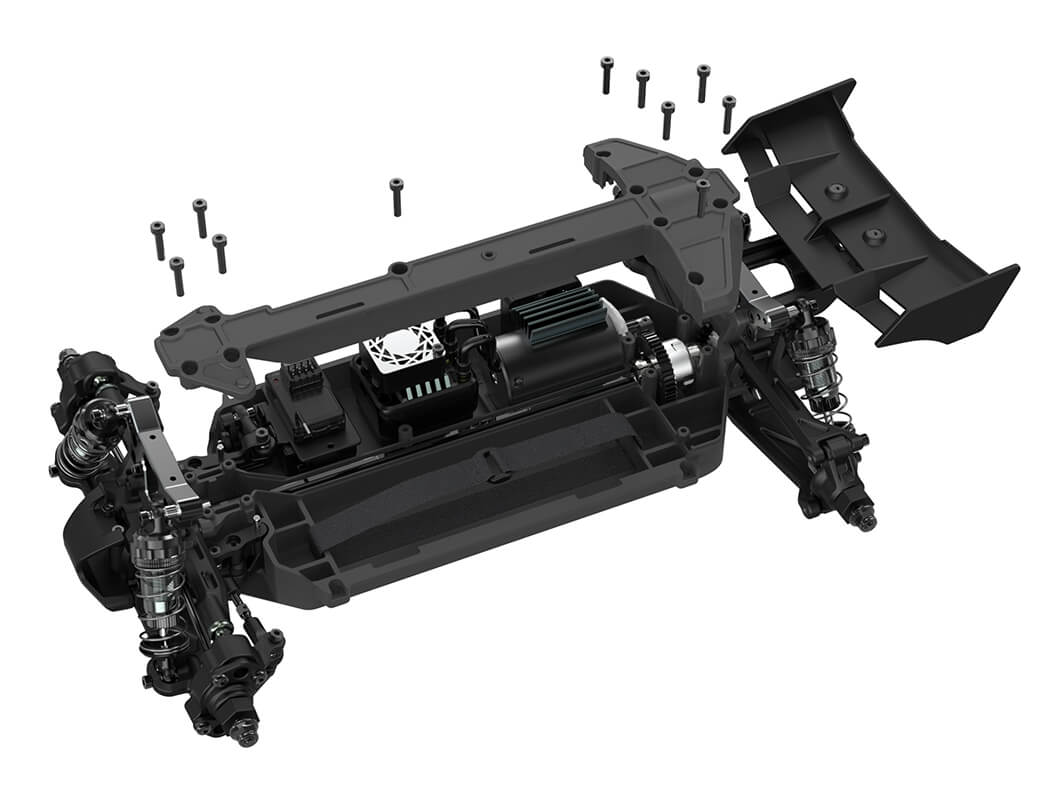

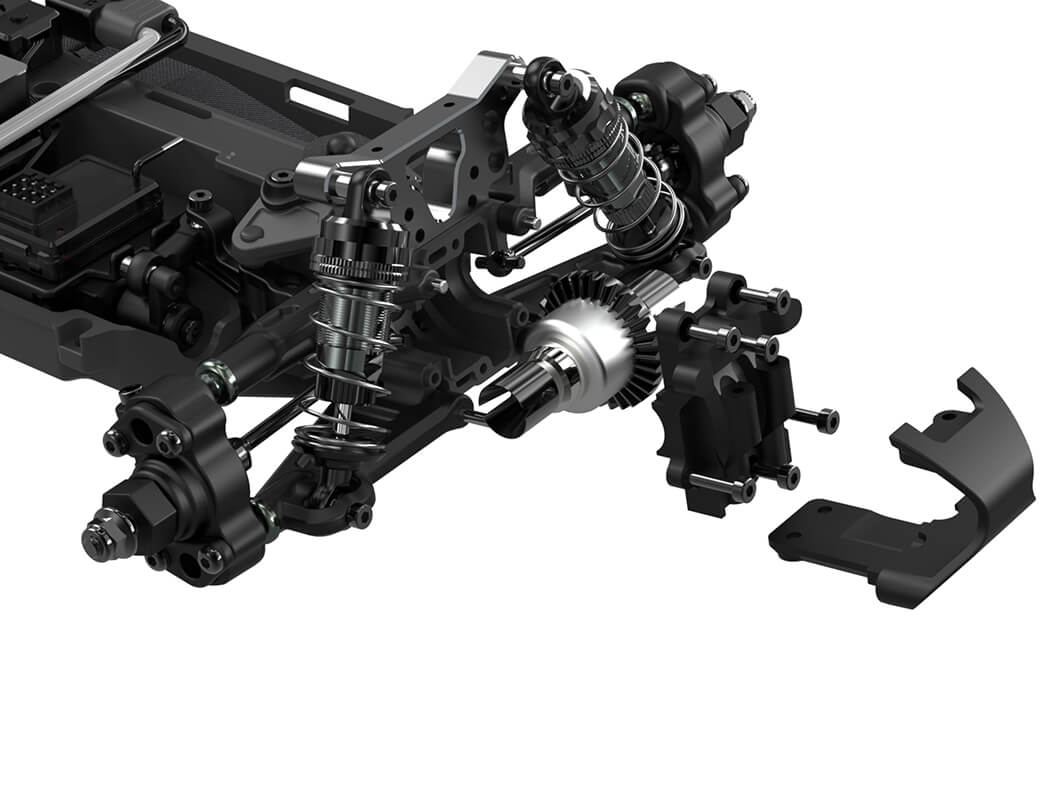

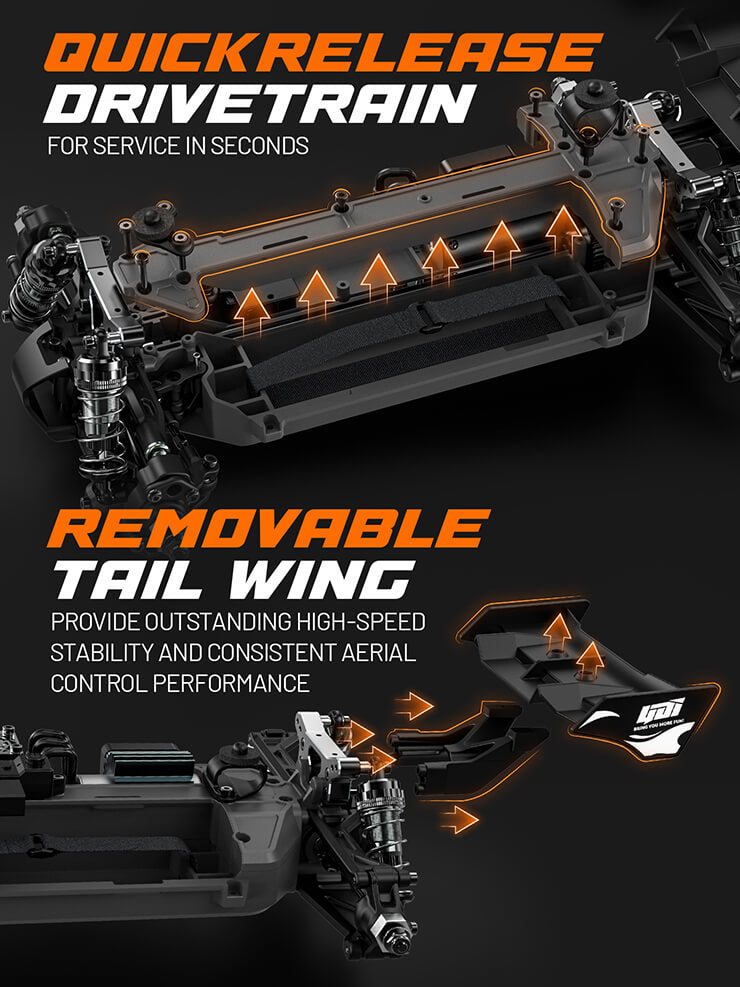

• Quick-release centre drivetrain system.

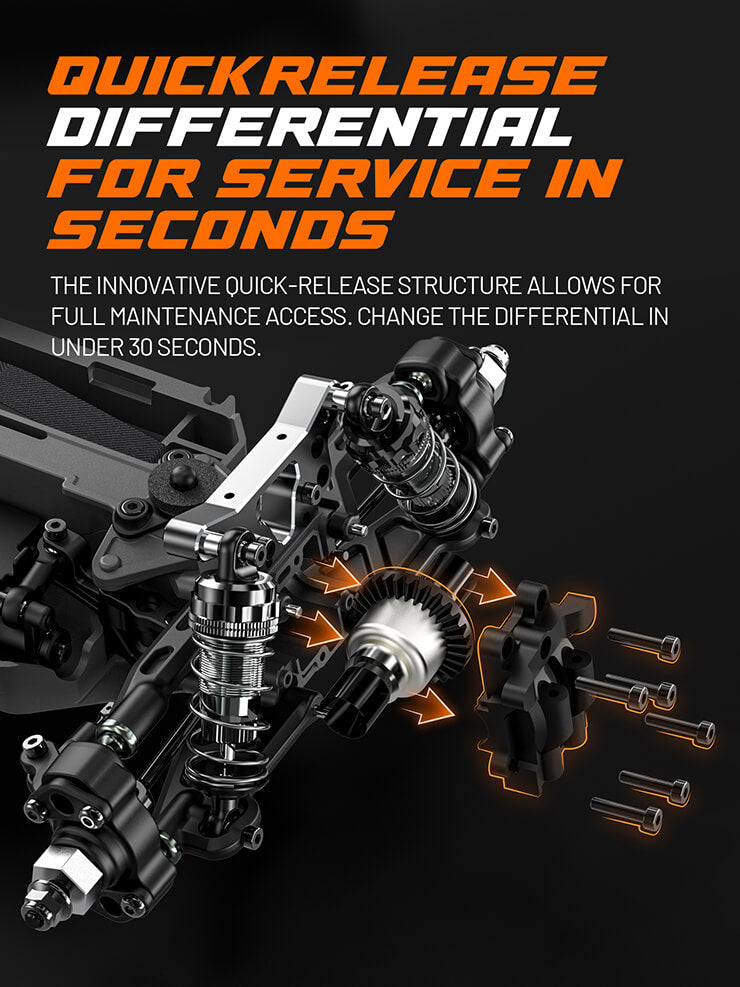

• Differential removal and servicing in under 30 seconds.
• Modular drivetrain layout for simplified maintenance.
• Easy access to key drivetrain components.
• Removable rear wing assembly.

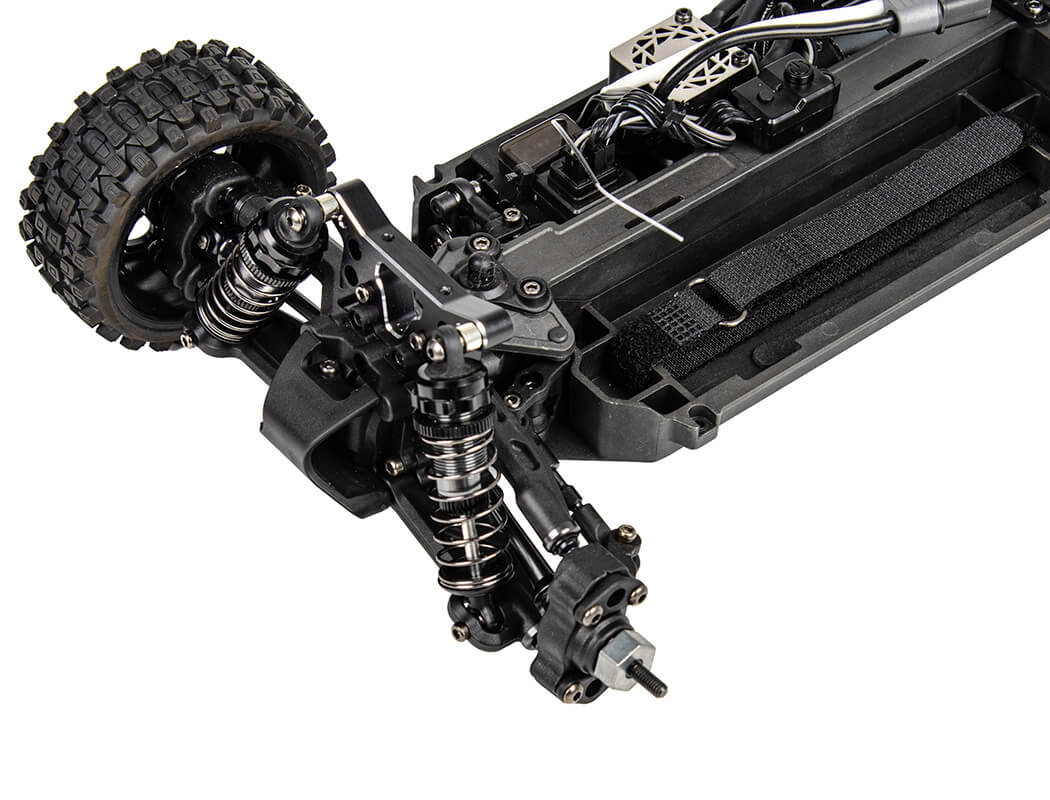

Suspension & Handling

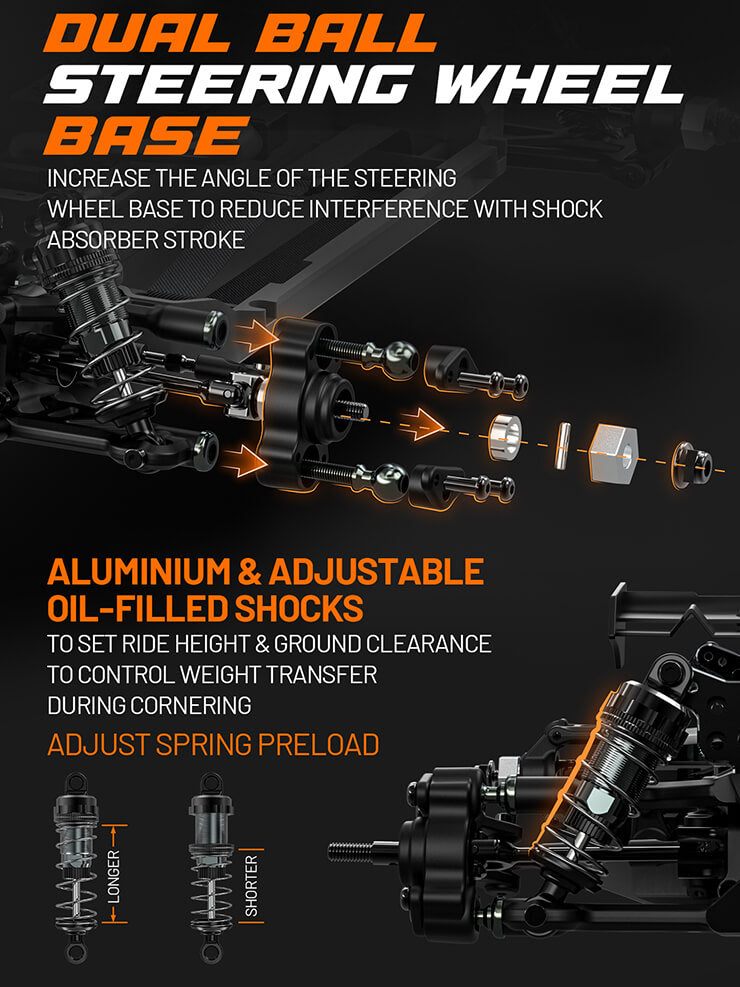

• Adjustable aluminium hydraulic oil-filled shock absorbers.
• Adjustable spring preload.
• Ride height adjustment capability.
• Dual ball steering system for increased steering angle.
• Adjustable metal steering linkages.
• Wide stance for improved stability.
• Durable nylon suspension arms and bumpers.

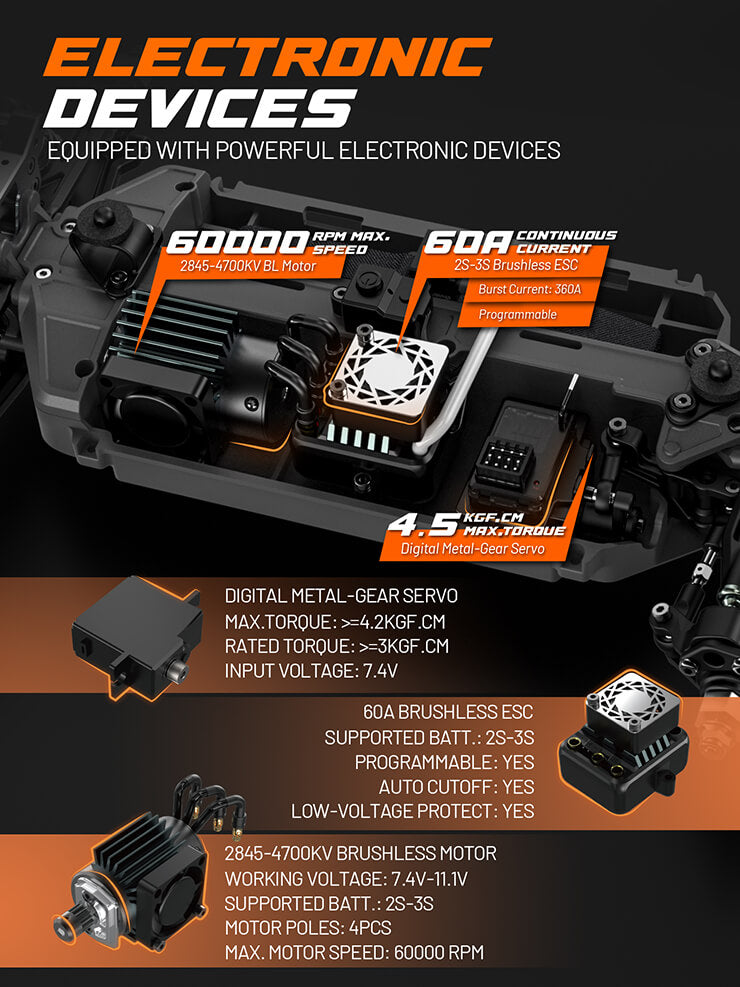

Electronics & Control

• 17g digital metal-geared steering servo.

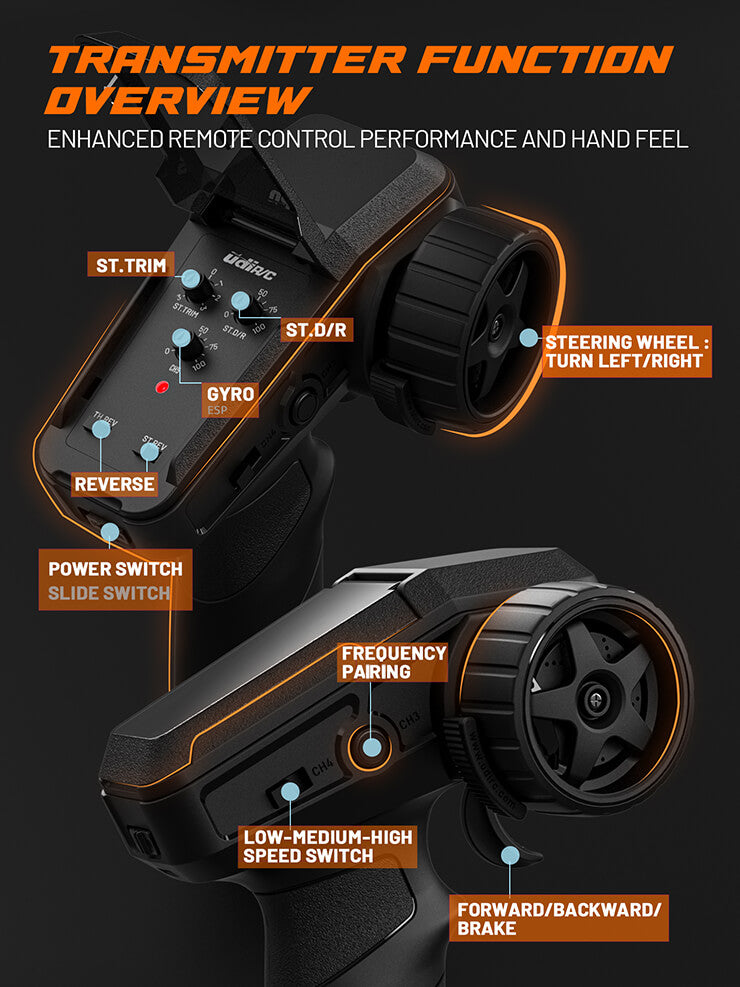

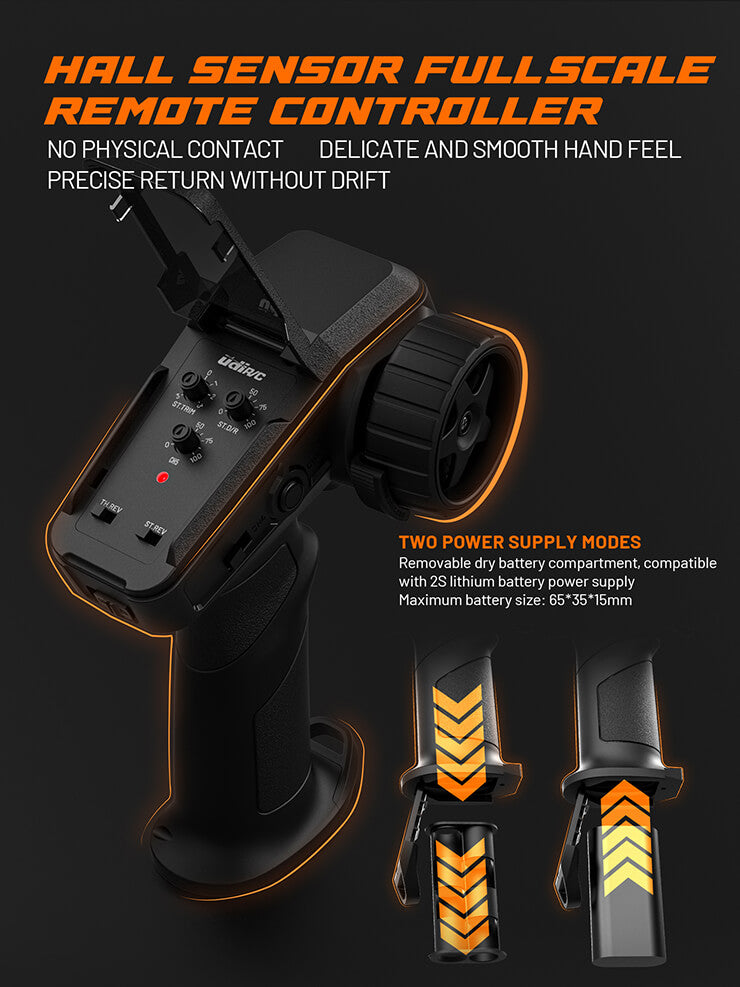

• Hall-sensor steering wheel transmitter.
• Integrated gyro adjustment.
• Steering trim adjustment.
• Steering dual-rate adjustment.
• Forward, brake and reverse functions.
• Low, medium and high-speed modes.
• Precision contactless steering wheel control.

Specifications

Scale: 1:12
Drive System: Shaft-Driven 4WD
Length: 345mm
Width: 193mm
Height: 103mm
Wheelbase: 228mm
Track Width: 168mm
Tyre Diameter: 66mm
Tyre Width: 26mm
Wheel Hex: 12mm
Motor: 2845-4700KV Brushless
ESC: 60A Brushless ESC
ESC Battery Support: 2S–3S LiPo
Servo: 17g Digital Metal Gear
Battery Connector: XT60
Main Gear: 38T 0.8M Steel
Motor Pinion: 10T 0.8M Steel
Differential Ring Gear: 30T 1M Steel
Differential Bevel Gear: 10T 1M Steel
Differential Sun Gear: 16T 0.8M Metal
Differential Planet Gear: 8T 0.8M Metal
Driveshafts: Steel Universal Joint Type
Main Shaft: Metal
Shocks: Adjustable Aluminium Hydraulic
Shock Length: 76.3mm Extended / 58.3mm Compressed
Battery Tray Size: 115 x 38 x 25mm
Radio System: UA42-E Hall Sensor Transmitter
Bodyshell Material: PC
