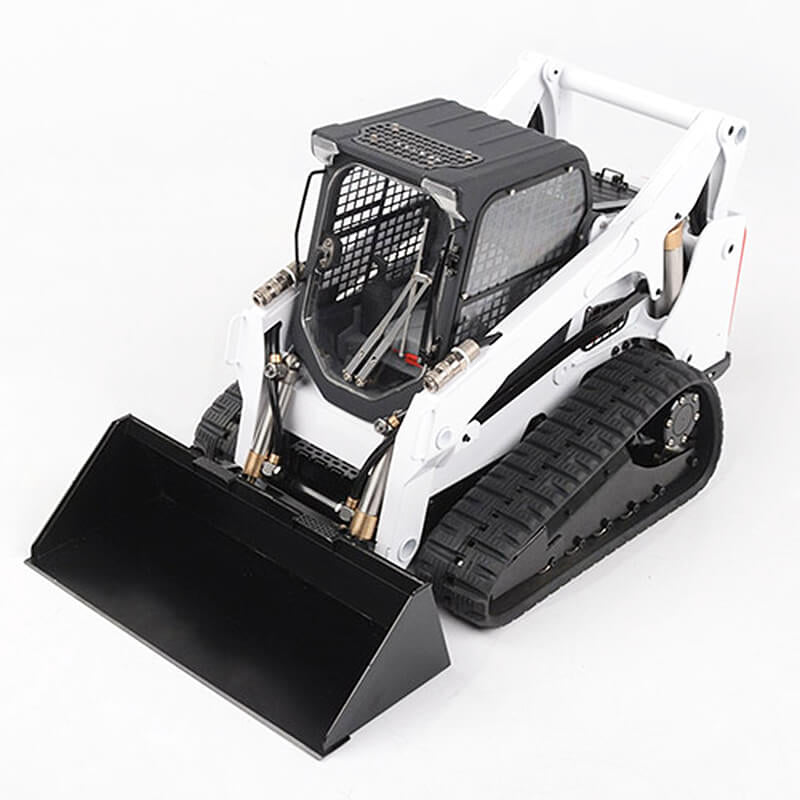

RC4WD 1/14 SCALE R350 COMPACT TRACK LOADER RTR

Specifications

• CNC Machined Metal Parts
• Molded Steel Bucket
• 6 Channel 2.4Ghz Radio
• Optimized Steel Hydraulic System
• Scale Operator Station (can fit a driving figure)
• Crawler Travel System
• Heavy Duty Hoses
• Powder-coated in White, Grey and Red
• Brushless System (Hydraulic)
• Lipo Cutoff
• Scale Interior
• Transmission Ratio: 1:109
• Battery Size:90 x 45 x 20mm / 3.54 x 1.77 x 0.78in
• Bucket Capacity: 155 x 65 x 42mm / 6.10 x 2.55 x1.65in
• Maximum Bucket Force: 1.5kg / 6.83lbs
• Scale: 1 : 14
• Length: 284mm / 11.1in
• Width: 156mm / 6.14in
• Height: 157mm / 6.18in
• Maximum Bucket Height: 235mm / 9.25in
• Maximum Bucket up and down Angle: 11 to 103 degrees
• Weight: 3.1kg / 6.8lbs
• Operating Oil Pressure: 3Mpa

What's Included

• 1 x 1/14 Scale R350 Compact Track Loader RTR

Required To Complete

• 4 x AA Batteries for Radio
• 5000mAh 7.4V 50C 2S1P Short-Size Lipo Battery Pack with T Style Plug
• Compatible Battery Charger

Notes

• While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
• ESC Supports bullet Connector
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
• Battery Size should be within 90x45x20MM (LxWxH)
