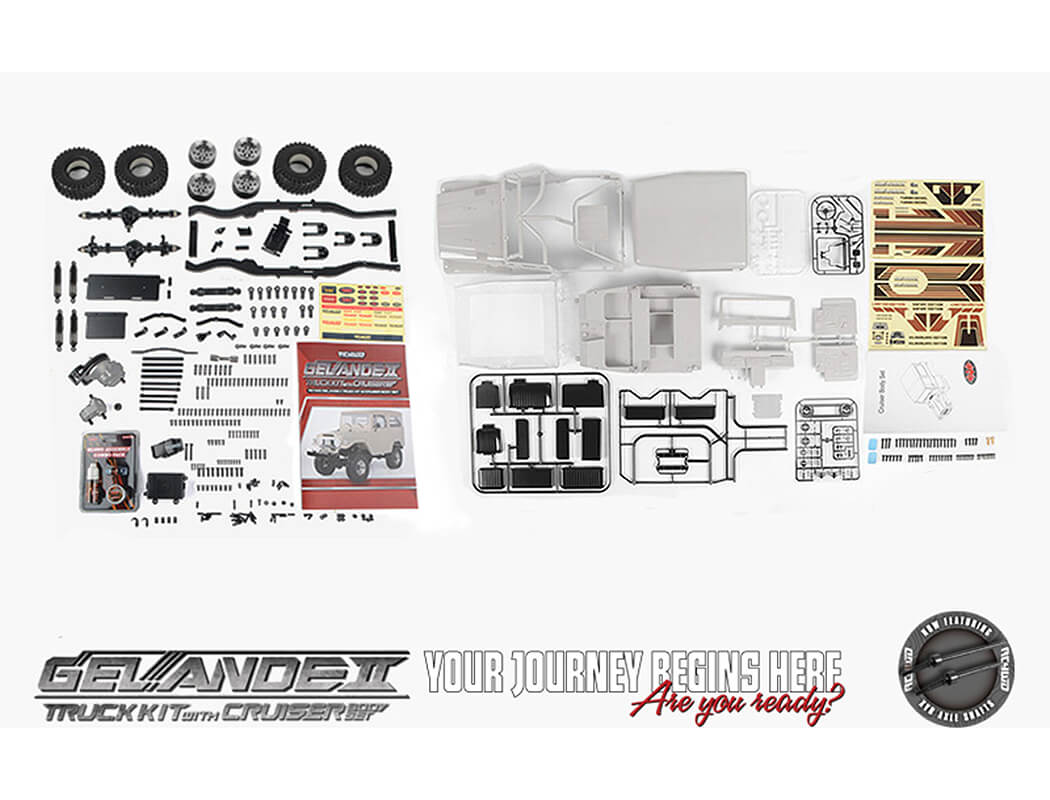

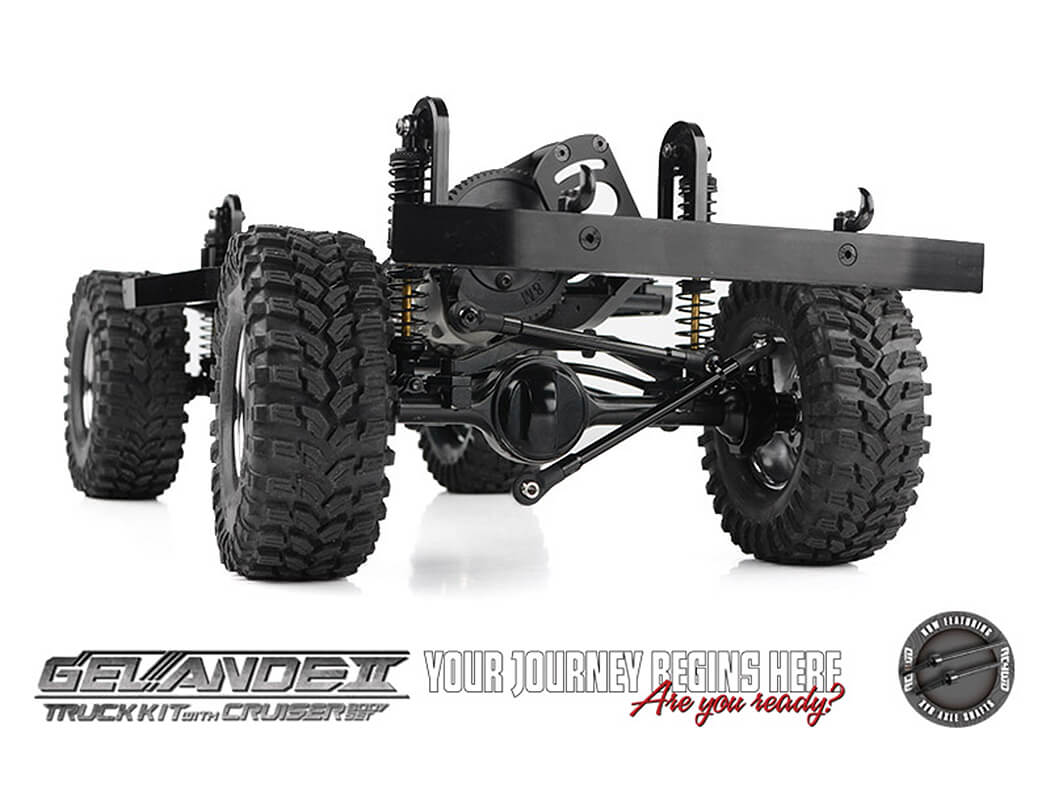

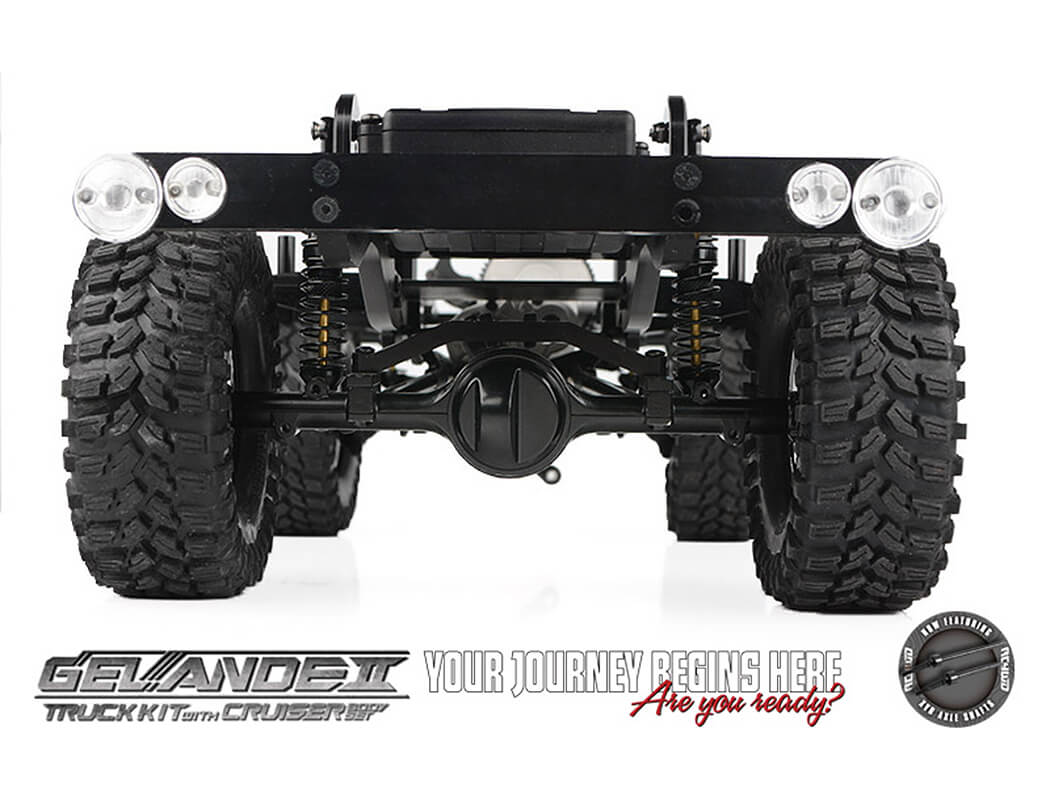

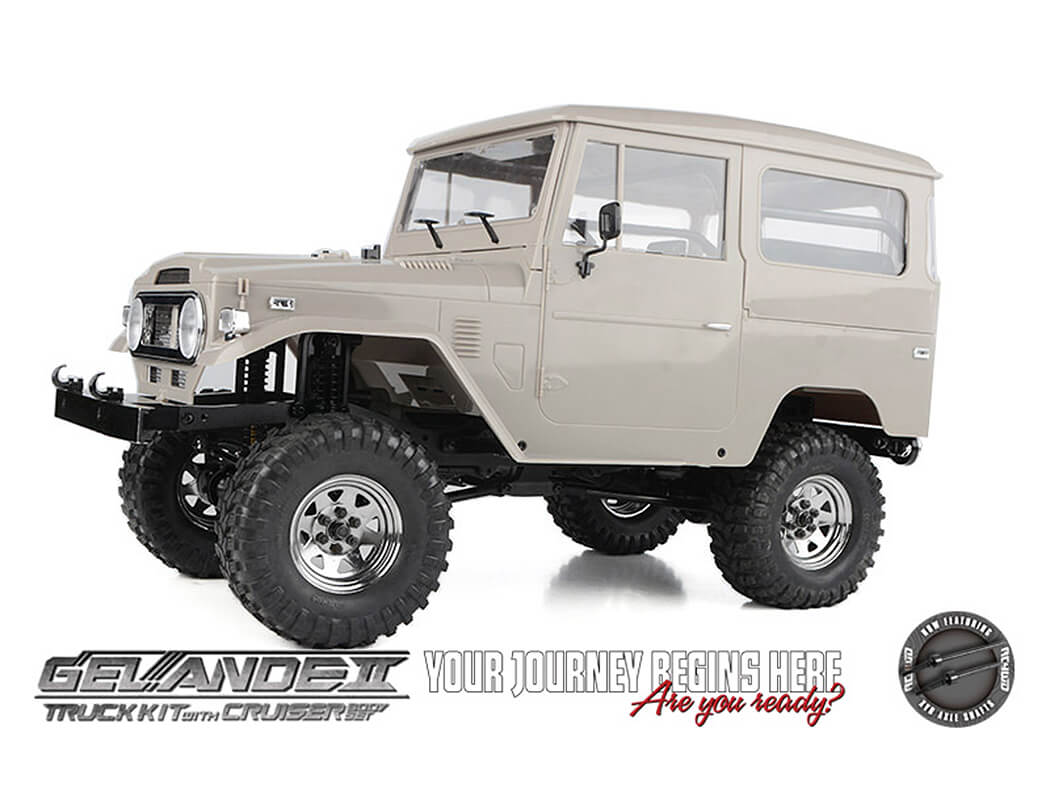

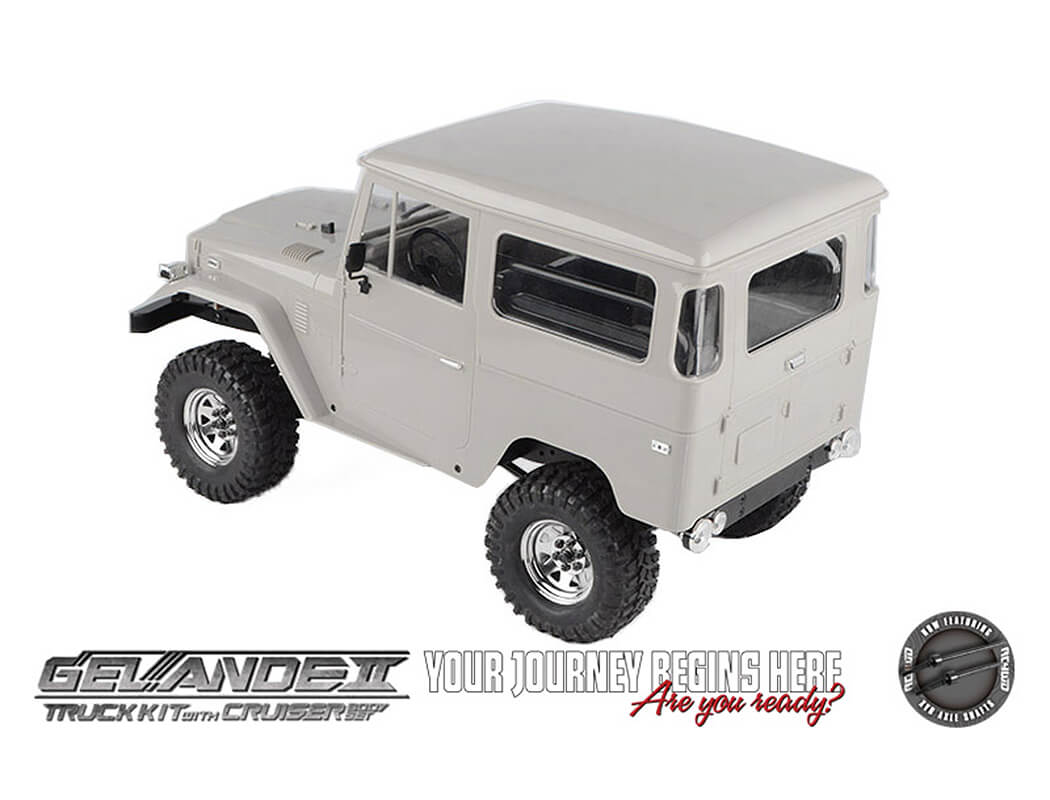

RC4WD GELANDE II TRUCK KIT WITH CRUISER BODY SET 2025

Description

Features

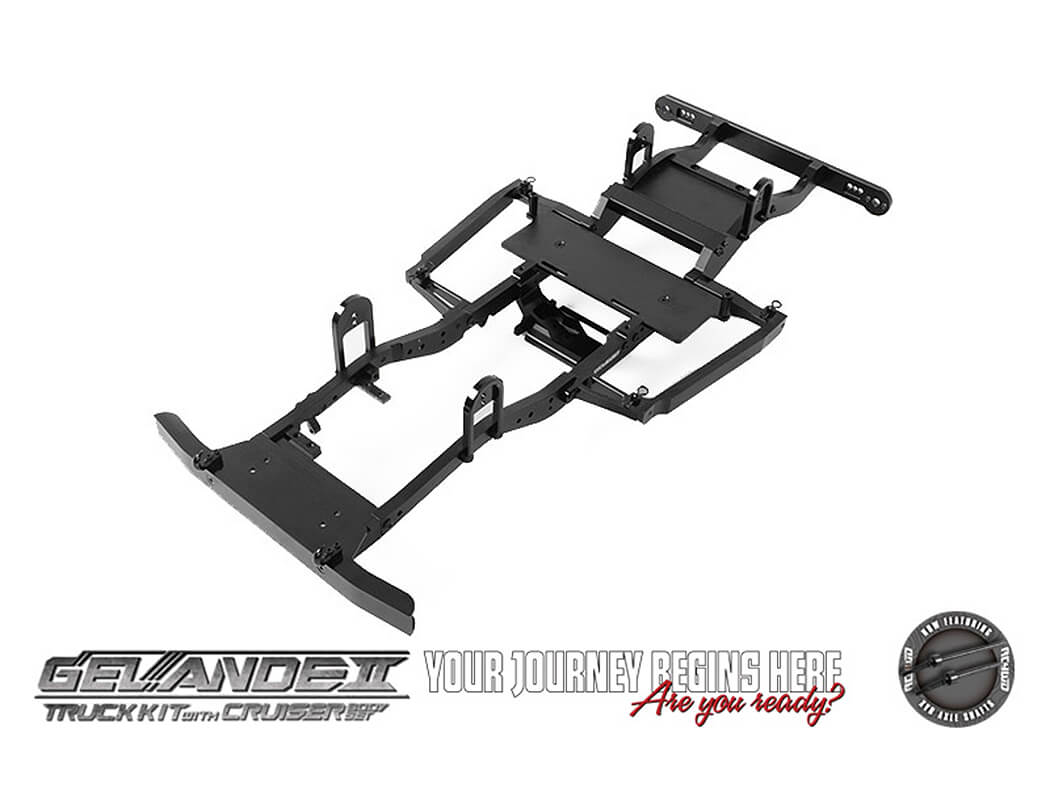

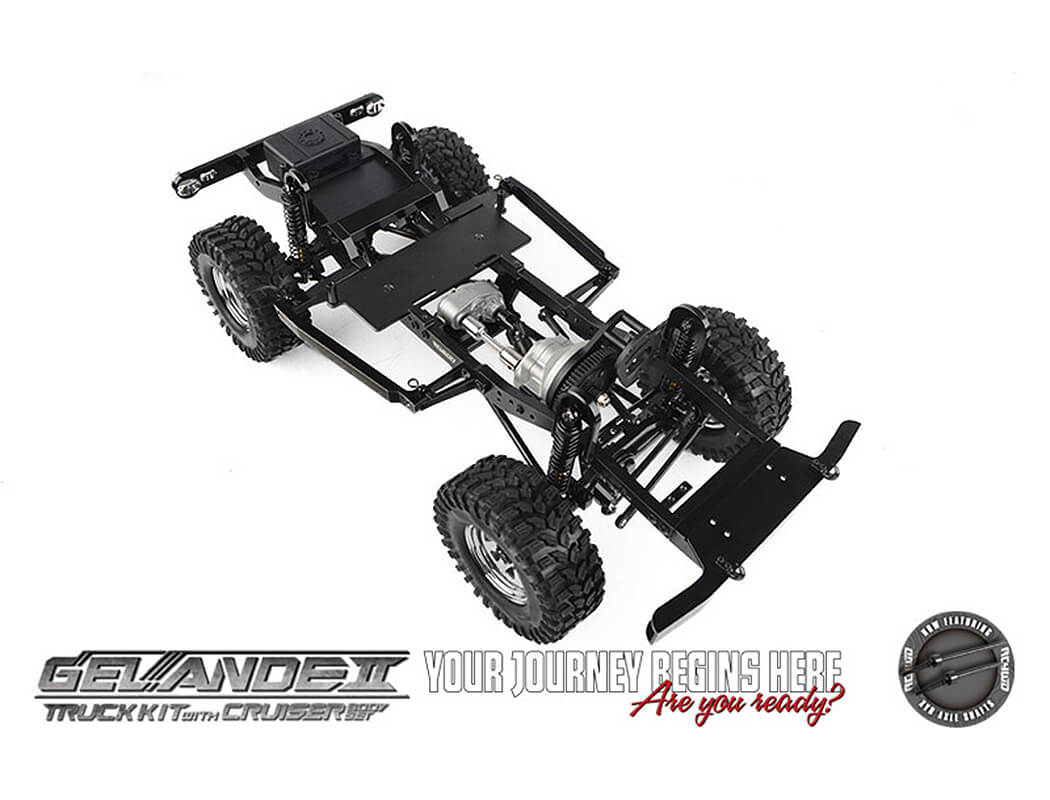

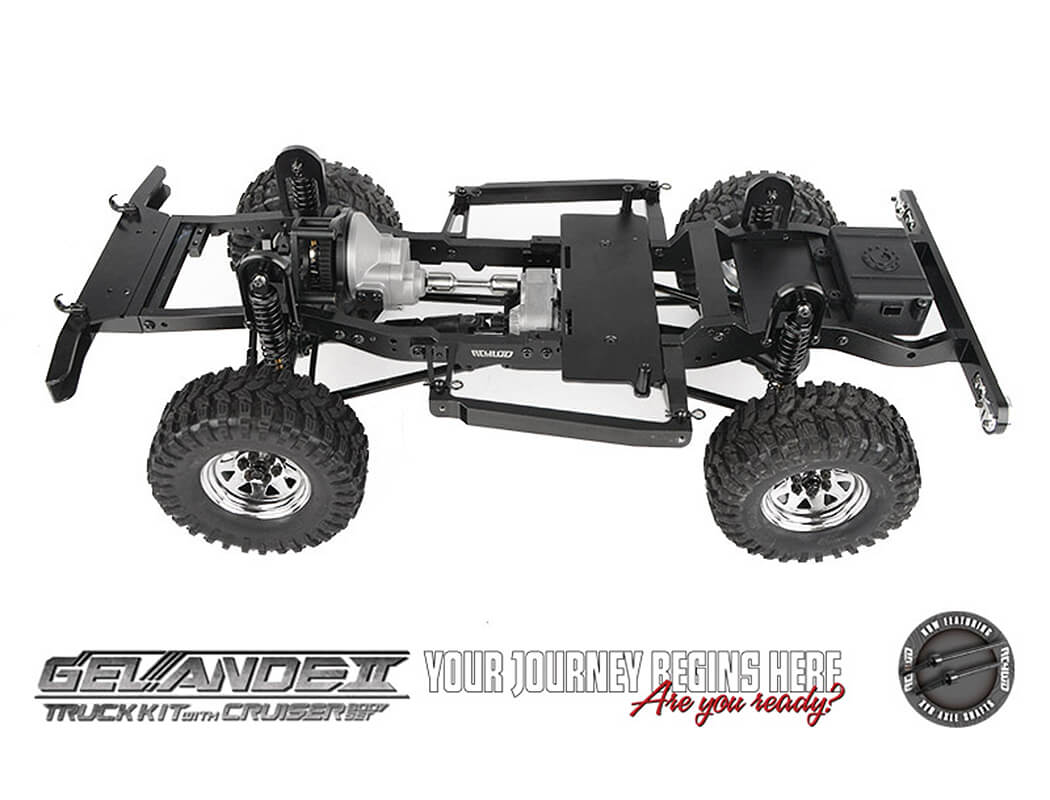

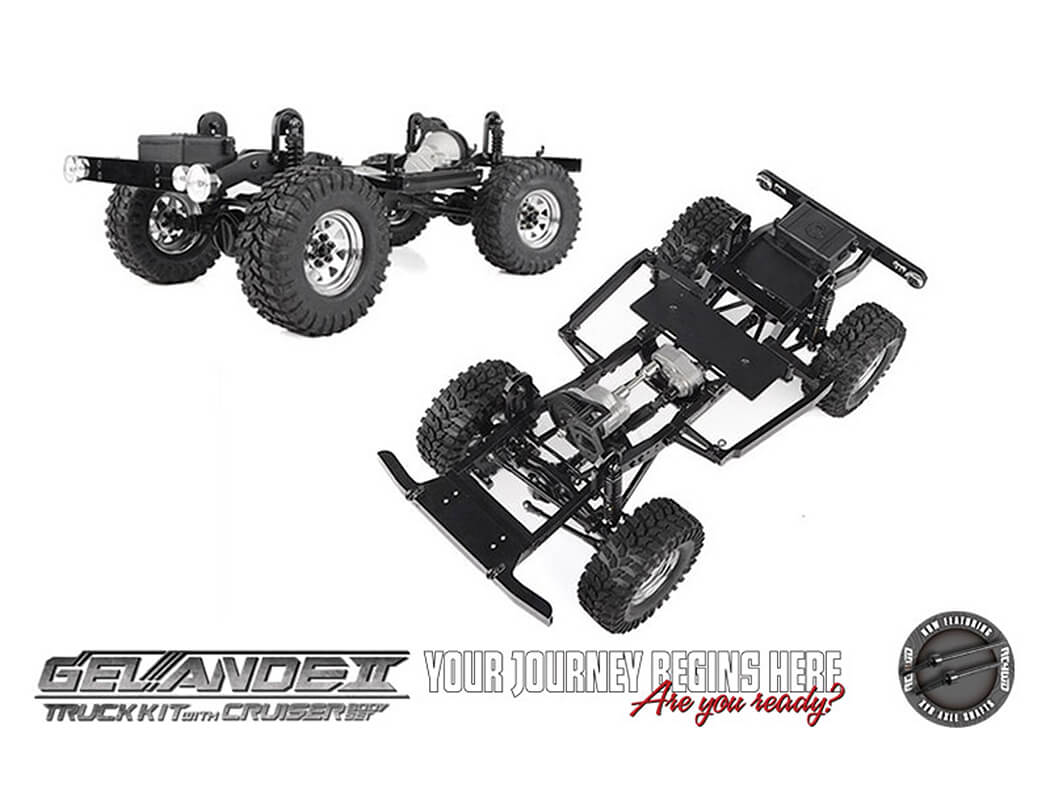

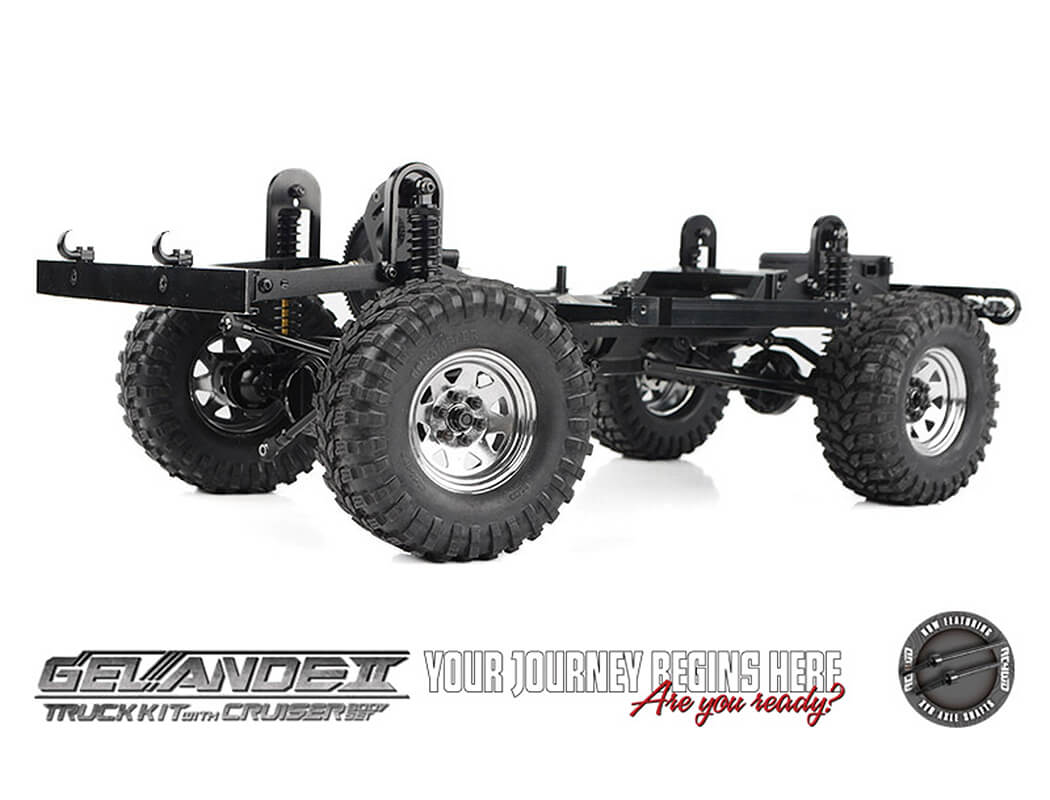

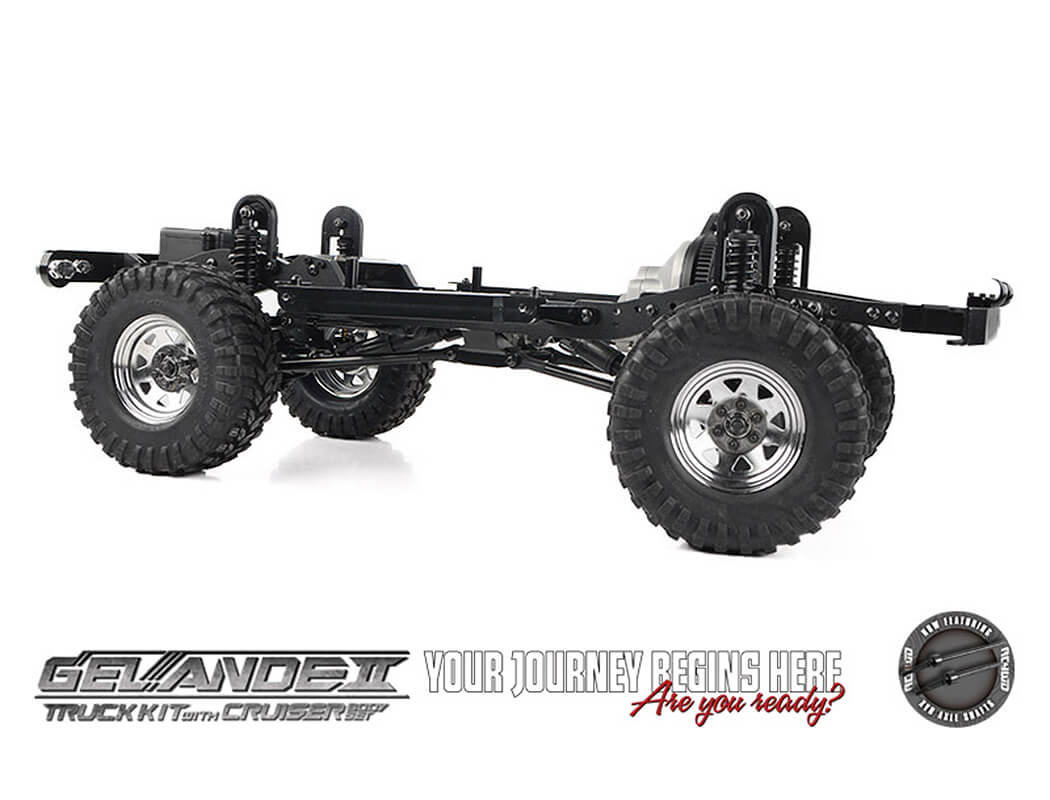

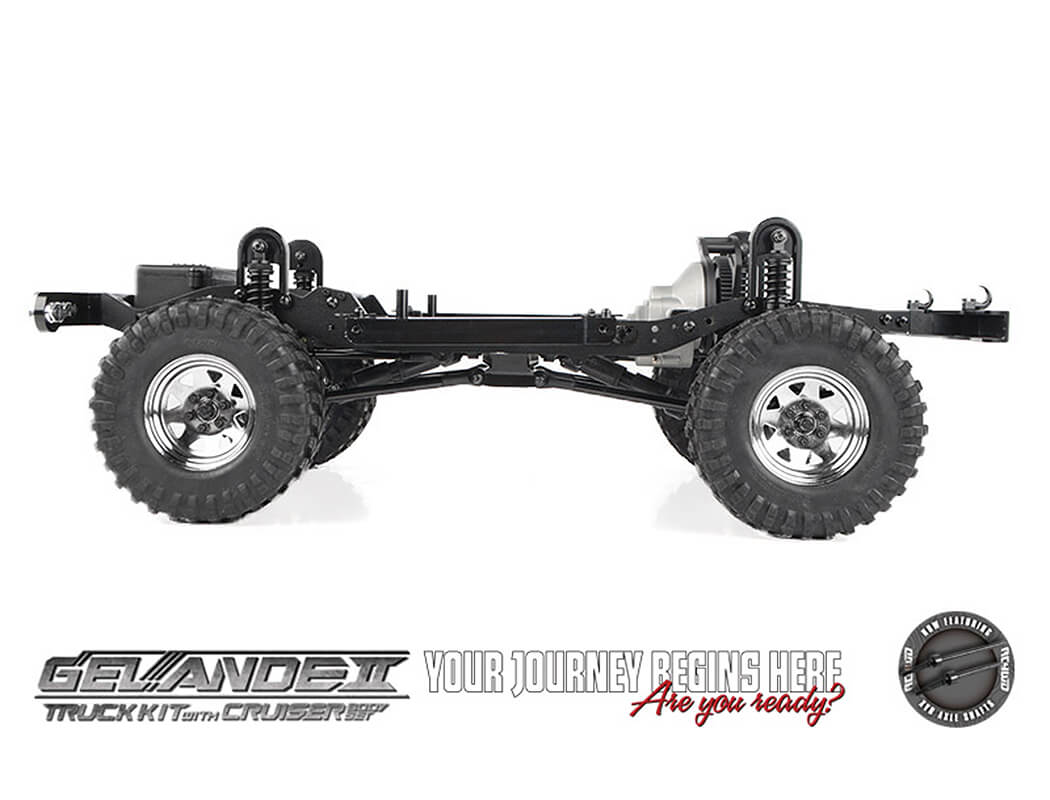

• Realistic Billet Aluminium Ladder Frame Chassis.
• Plastic Punisher Shaft V2.
• R3 Scale Single Speed Transmission.
• Center Mounted Realistic 4x4 Transfer Case.
• Yota II Ultimate Scale Cast Axle V2 (XVD).
• 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels.
• Scrambler Offroad 1.9" Scale Tyres.
• Dual Spring 80mm Scale Black Shocks (VER 3).

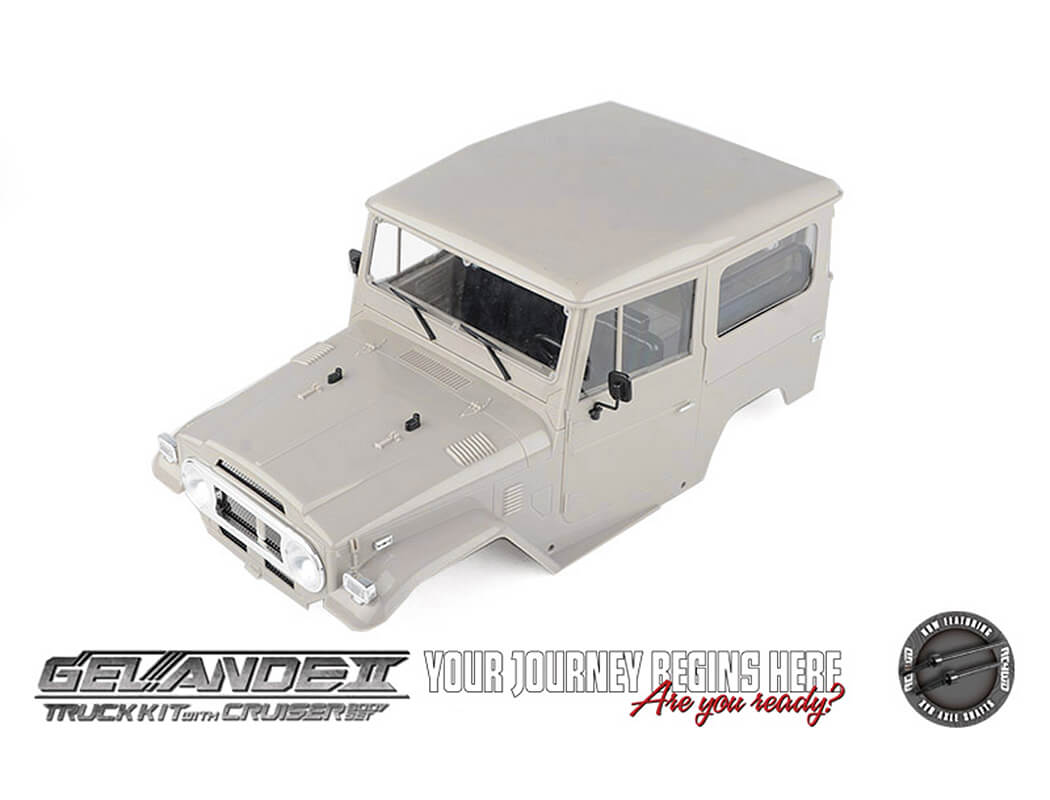

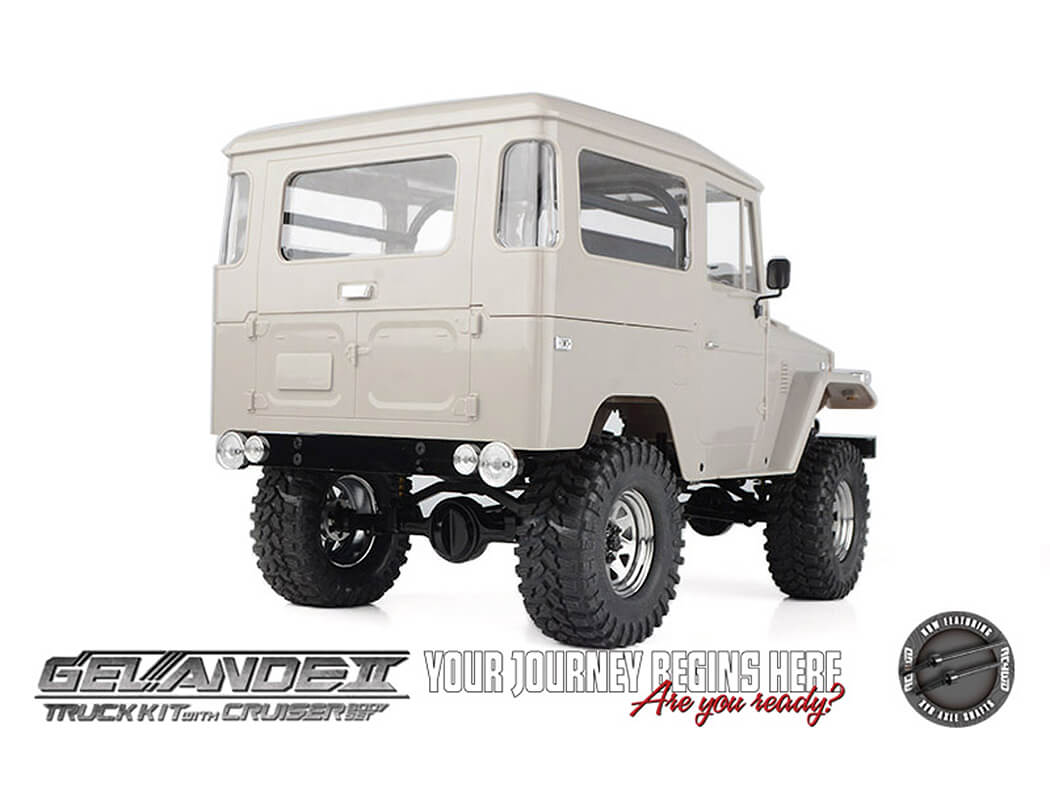

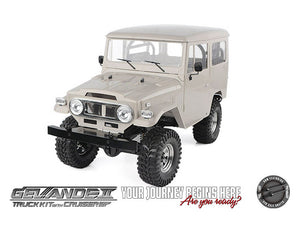

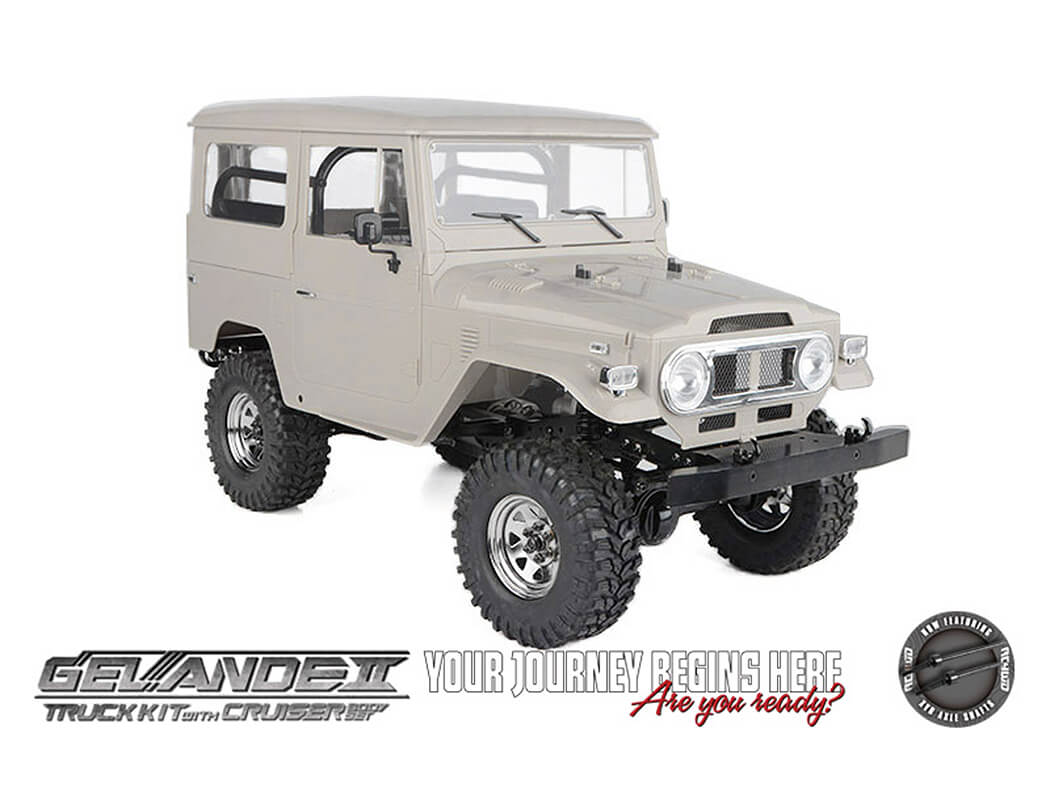

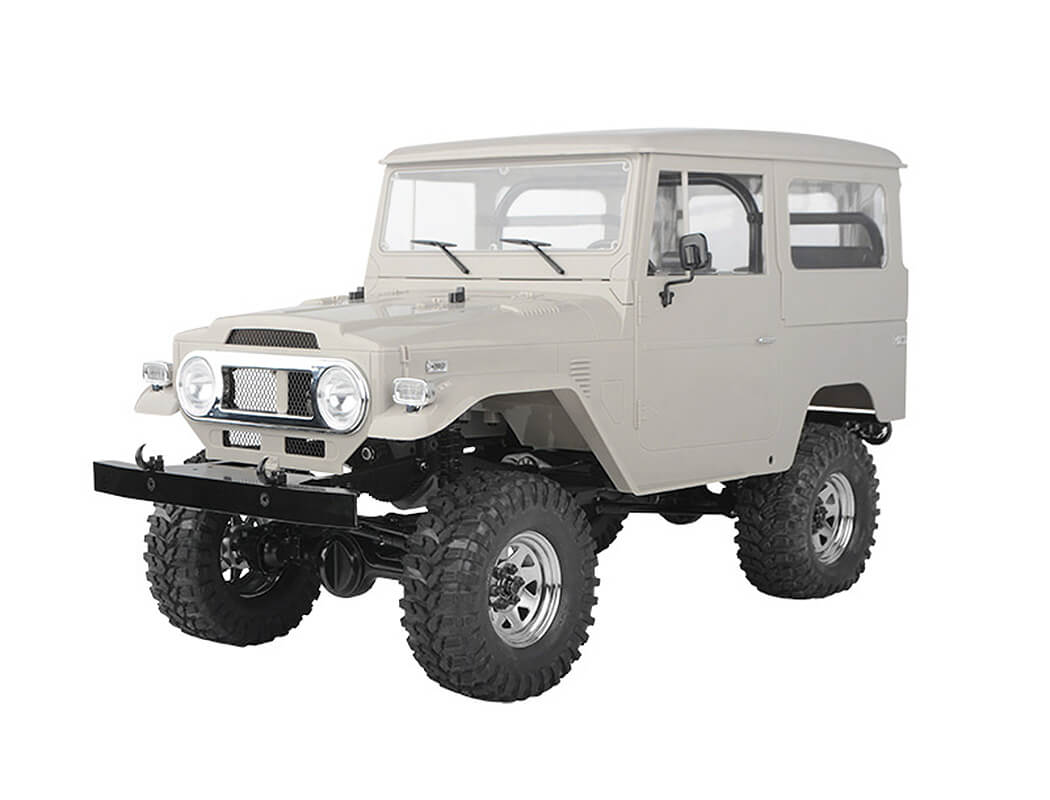

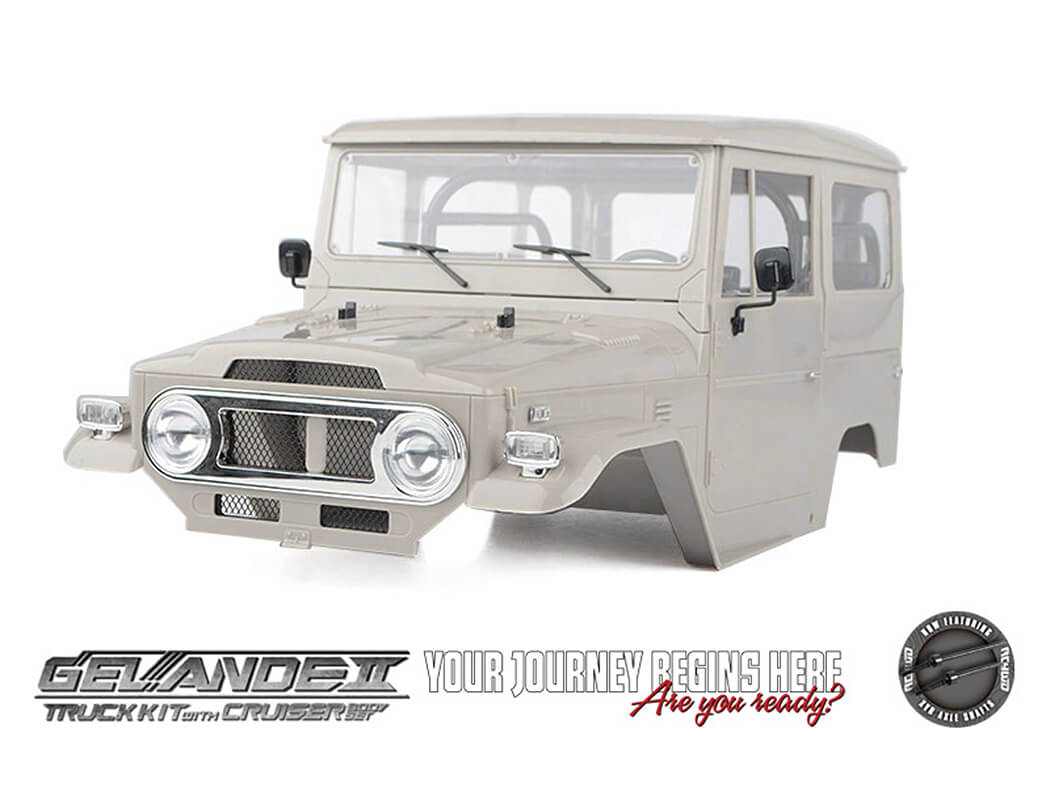

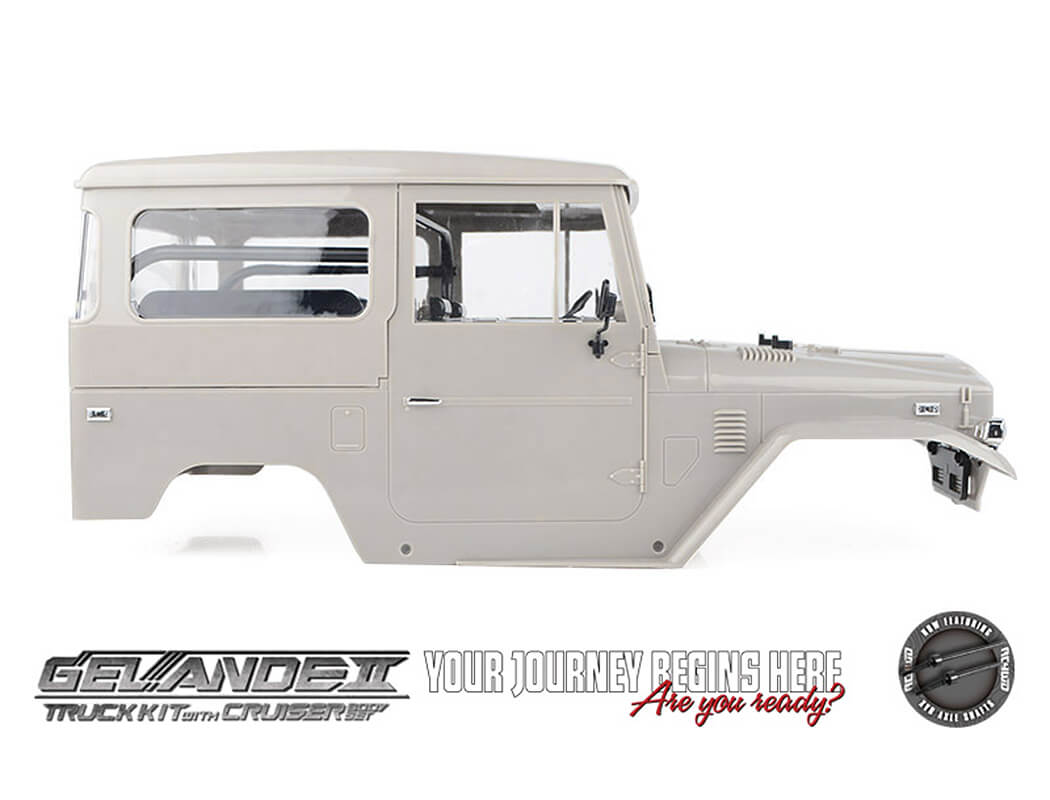

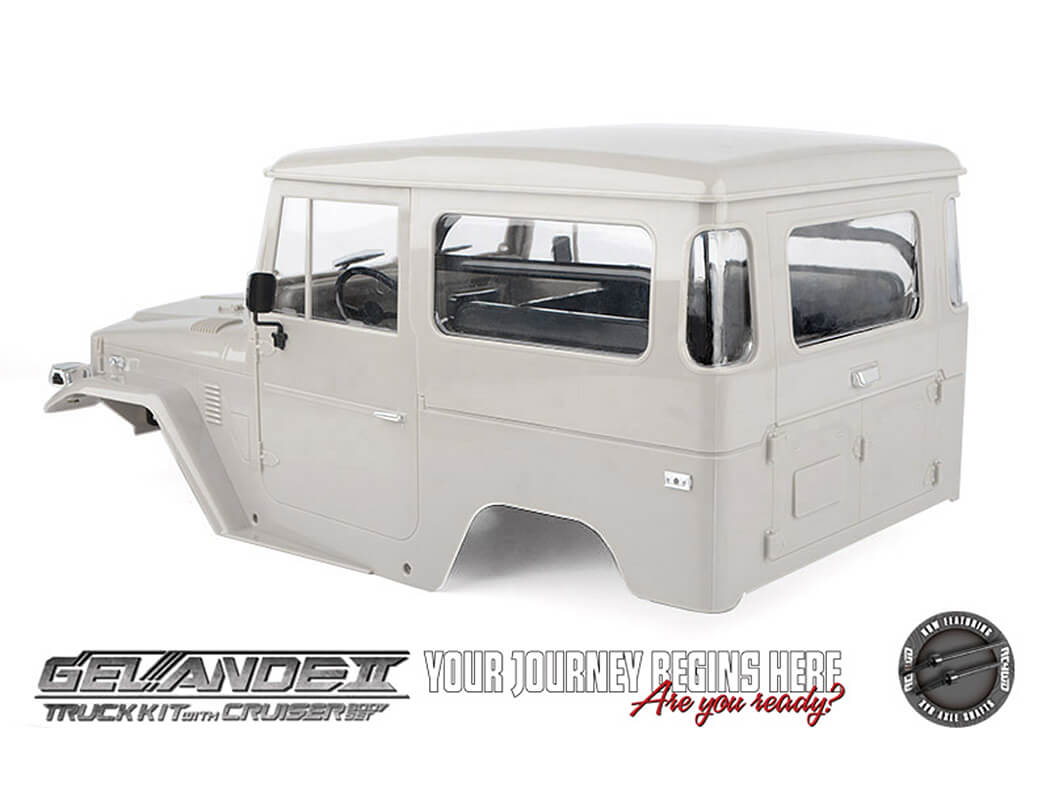

• Cruiser Body Conversion Kit For G2 Builder Kit.
• Chassis Mounted Steering Servo.
• Plastic Fuel Cell Receiver Box.

Specifications

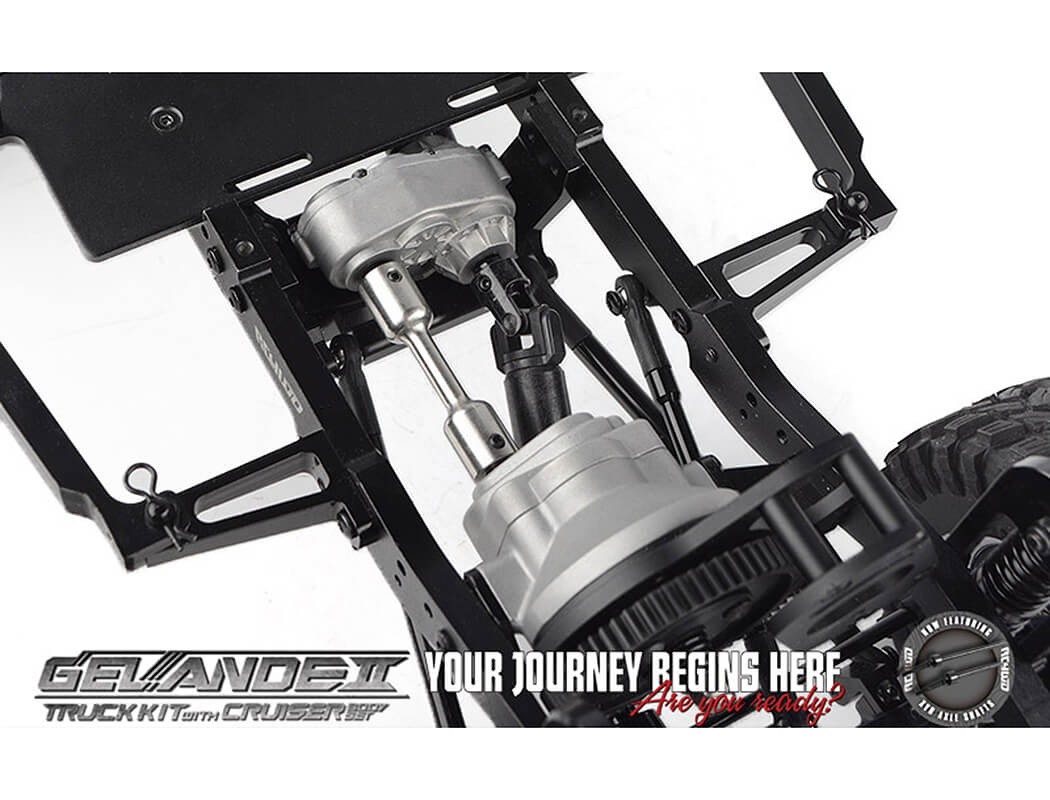

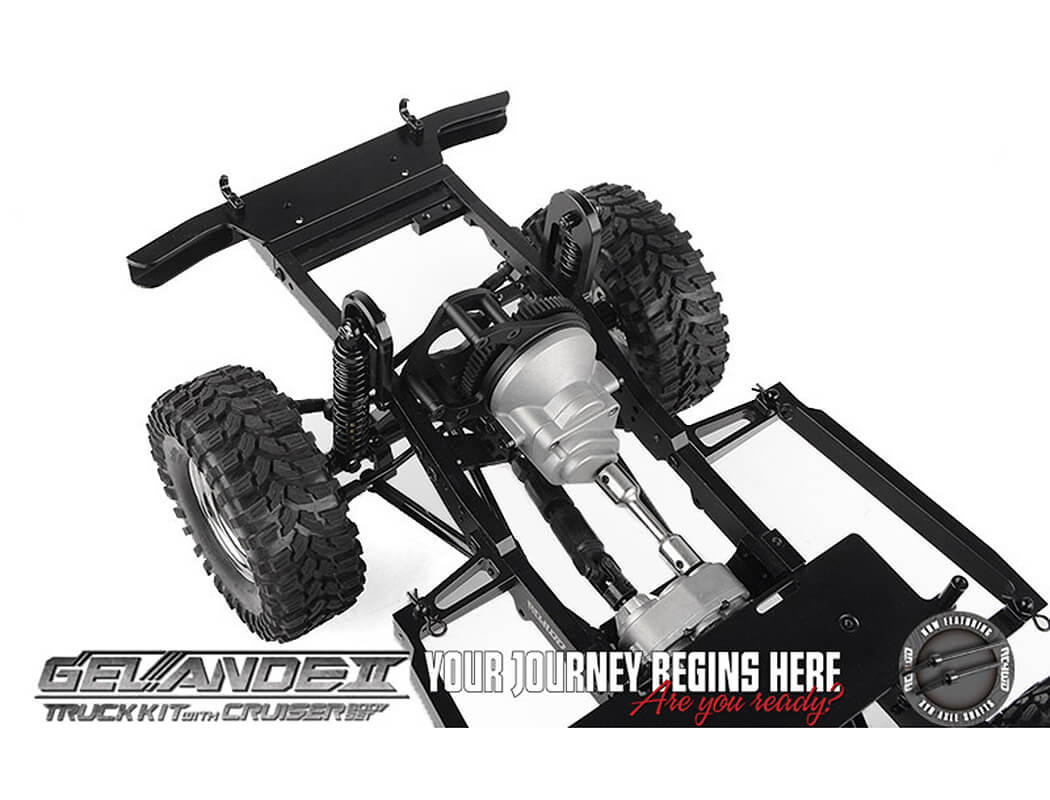

Hammer Transfer Case

Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Yota II Ultimate Scale Cast Axles

Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

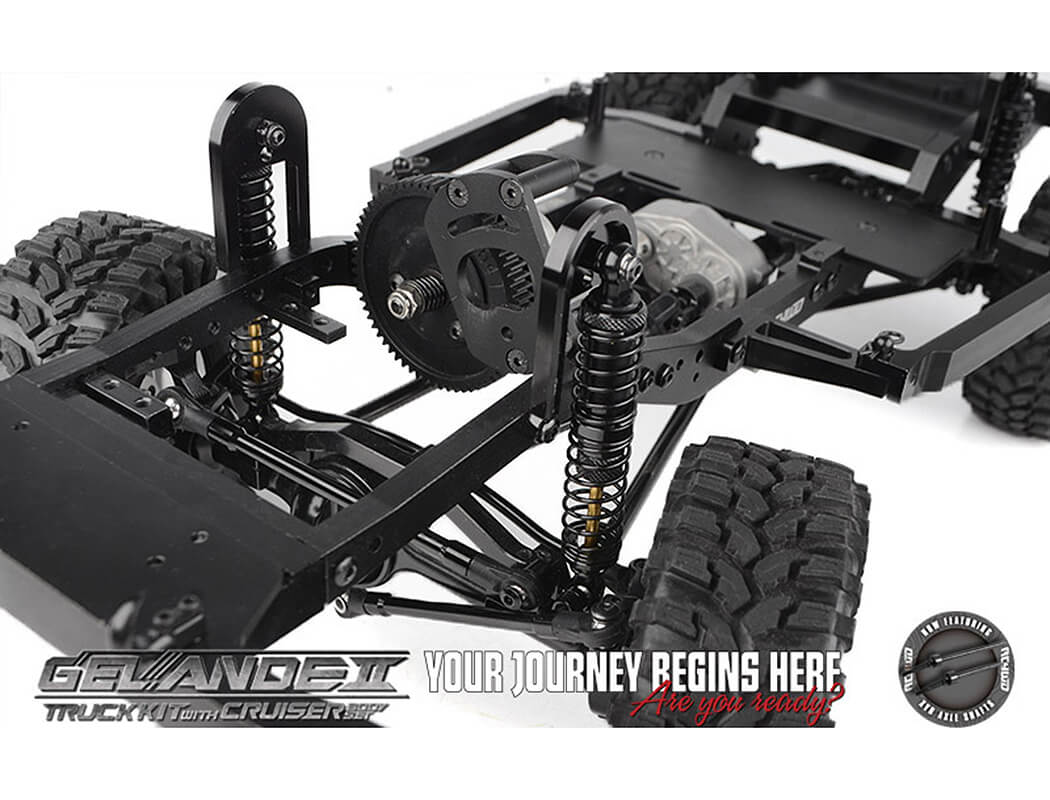

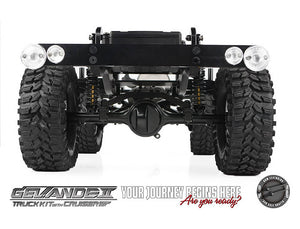

Gelande II Suspension

Double Triangulated 4 Link Rear Suspension. 3 Link Front Suspension with Panhard Bar

Shock Absorbers

Dual Spring 80mm Shocks - Can be oil filled

Wheels

Type: 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome)
Hub: Pin Type Width: 25mm (0.98")
Outer Diameter: 48.26mm (2.09")

Tyres

Type: Scrambler Offroad 1.9" Scale Tyres
Outer Diameter: 104mm (4.09")
Width: 43mm (1.69")
Inner Diameter: 46mm (1.81")

Gelande II Truck Dimensions

Length: 18.31in / 465mm
Width: 8.66in / 220mm
Height: 10.24in / 260mm
Ground Clearance: 1.97in / 50mm
Final Drive Ratio: 31.9:1

Required to Complete

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit

• Modeling / Craft Knife
• Long Nose Pliers
• Side Cutters
• Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdriver (Small)

Electronics

• Motor (35t, 45t, or 55t)
• Radio and Receiver (2 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1 x Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers
