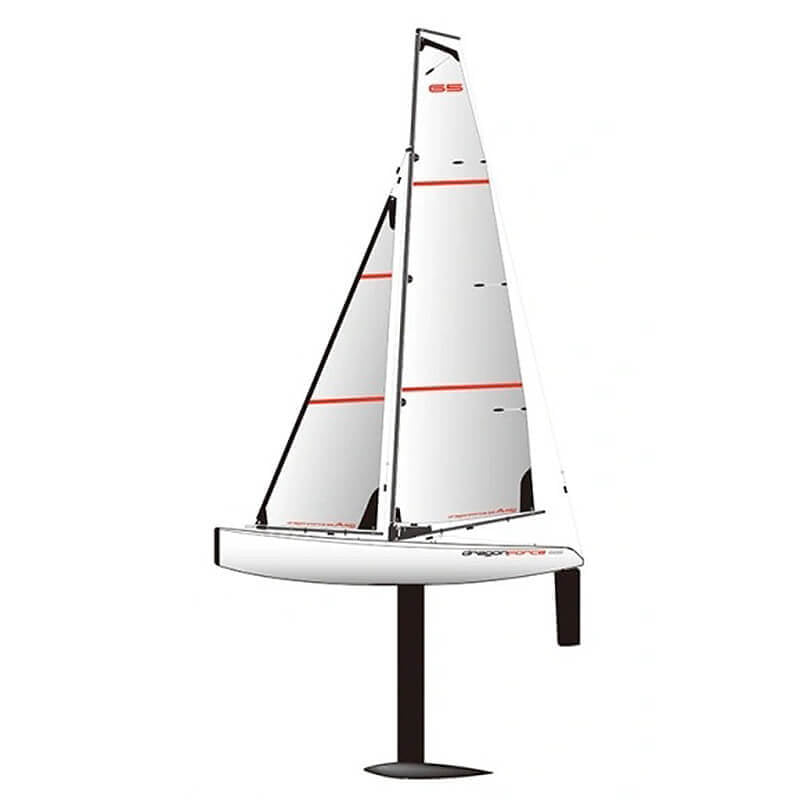

JOYSWAY DRAGON FORCE 65 V8 VERSION ARTR SAILING YACHT

Description

Features

• Servo tray screws are replaced with flat head screws.
• Servo tray is modified with larger the mounting holes & secure the mounted plate with screws from top of servo tray.
• New switch mounting plate - now sailors can replace the power switch from top of the servo tray, no more disassembly of the servo tray to replace the switch.
• Modified dimensions of the black hatch cover patch and battery cover patch.
• New molded rudder servo arm (reinforced).
• Improved rudder metal arm, the hole which fit with clevis change from 2mm diameter to 1.9mm diameter, this change will make sure the rudder fits better, minimises the left and right clearance.
• Two bearing change to 404 stainless steel material.
• Modified mast stub and mast joiner with tube at outer diameter of 4.97mm to improve the fit. The whole mast unit will have better curve under tension.
• Mainsheet Bridle Plate modification - reinforced, thicker & stronger.
• Mast deck sliding plate, modified mold:Width from 19.3 to 19.8mm, stop mast deck plate sideways wobble by tighter fit with keel box top molding.
• Improved mast deck plate positioning nut. Prevent nut drop out from keel box.
• Screws, nuts, washers for the mast deck plate, screws for keel - all change to 316 stainless steel.
• Jib boom rear plug, design change, cord can be thread through outside, easy for changing the jib boom lifting cord.
• DF65 sails clew hook 0.6 change to 0.8mm.
• Main sail luff ring, increase the bend on the end to form more of a hook shape.
• Better quality forestay steel wire, Shorten the forestay wire length, use thinner copper clamp to clamping the top and bottom wire, prevent wire loop loosening.
• All sail corners, change from one layer patch per side to two layers patches to reinforce.
• Change to better quality elasticated sheeting cord.
• Included is the new 2025 winch servo for more accurate sails control.

Specifications

Length: 655 mm
Beam: 116.5 mm
Rig Height: 915 mm
Overall Height: 1338 mm
RTR Weight (no batteries): 1200 g
Sail Area (main sail): 1460 cm2
Sail Area (Jib): 766 cm2
Sail Area (Total): 2226 cm2
Hull Material: Molded ABS with painted white finish and attached stickers

Required to Complete

• Radio and receiver.
• Batteries for radio.
