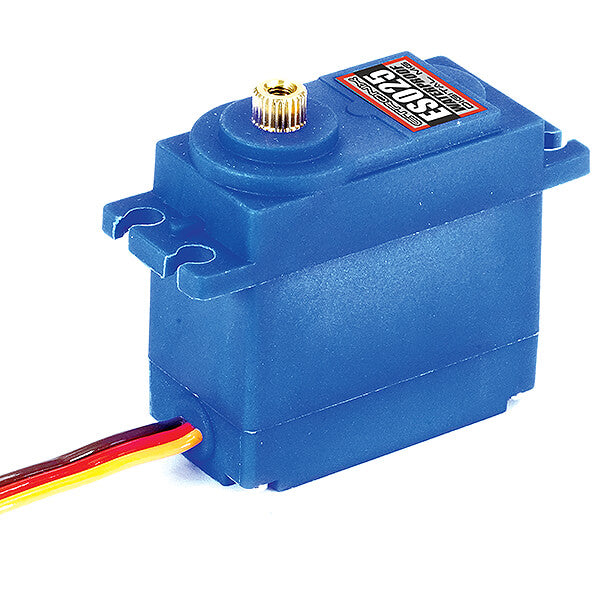

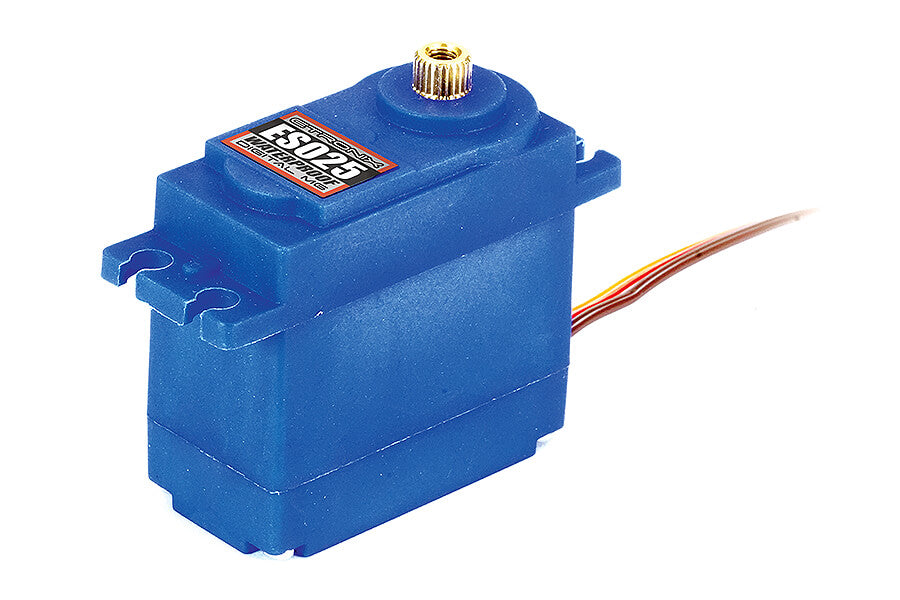

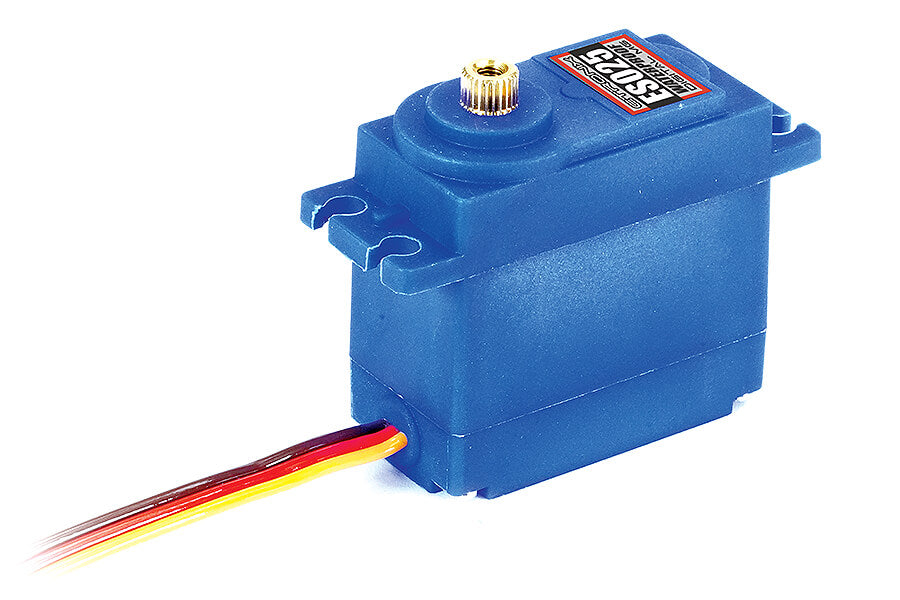

ETRONIX ES025 25KG STD SIZE DIGI WATERPROOF MG SERVO

Description

Features

• High performance digital high voltage standard servo
• Dual ball bearings
• Waterproof

Specifications

• Dead Band: 3μs
• Working Frequency: 1520μs / 330hz
• Motor: DC motor
• Gears: Metal
• Spline size: 25T
• Operating Speed 4.8V: 0.22sec/60&deg
• Operating Speed 6.0V: 0.20sec/60&deg
• Operating Speed 8.4V: 0.16sec/60&deg
• Stall Torque 4.8V: 22kg.cm
• Stall Torque 6.0V: 25kg.cm
• Stall Torque 8.4V: 30kg.cm
• Dimensions: 40 x 20 x 40mm
• Weight: 64g
• Connector Wire Length: 240mm
