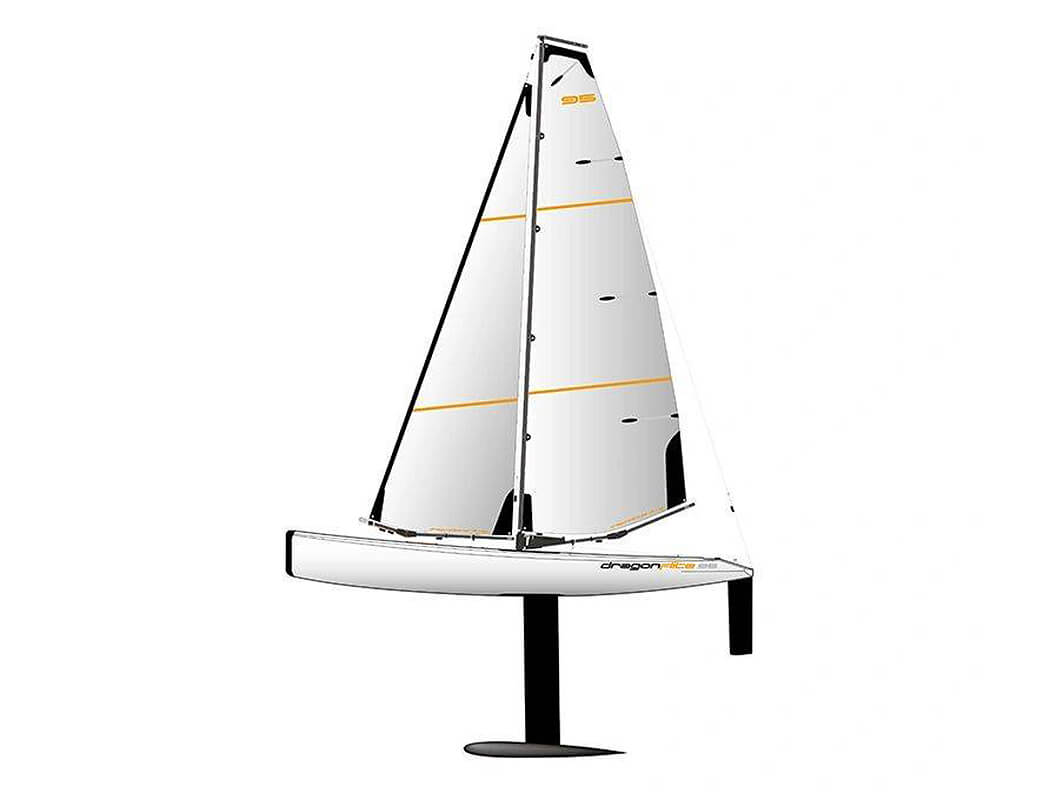

JOYSWAY DRAGON FLITE 95 V3 RACING SAILING YACHT ARTR

Description

Features

• Improved sails: Reinforcement of sail corners: Change from one patch per side to two layers of patches.
• Servo plate screws: Replaced by flat-head screws.
• Transparent hatch mold: Modified to match flat-head screws.
• Servo tray modification: Mounting holes enlarged and mounting plate secured with screws from top of tray.
• New switch mounting plate: Allows users to replace the power switch from the top of the servo tray, without having to dismantle the latter.
• Modification of the dimensions of the black cover patch for the hatch.
• New molded rudder servo arm: Reinforced arm.
• Improved metal rudder arm: Clevis hole diameter reduced from 2 mm to 1.9 mm, ensuring better rudder fit and reducing side play.
• Bearings: Switch to 404 stainless steel material.
• Mast step modifications: diameter slightly increased to improve fit.
• Reinforced main sheet clamp plate: Thicker and more robust.
• Mast deck sliding plate: Mold modification: width increased from 18.9 mm to 19.4 mm to prevent lateral oscillation thanks to a tighter fit with the top of the keel box.
• Screws, Nuts and washers for mast deck plate: as well as keel screws, replaced by 316 stainless steel.
• Aft jib boom plug: New design allows the lifting cord to be passed to the outside for easy replacement.
• Mainsail luff ring: Increased curvature to form a more pronounced hook.
• Jib stay: Use of higher-quality steel wire, shorter length and thinner copper clamps to prevent loosening of the loops.
• Bungee cords: Use of higher-quality material.
• New 2025 winch servo: For more precise sail control.

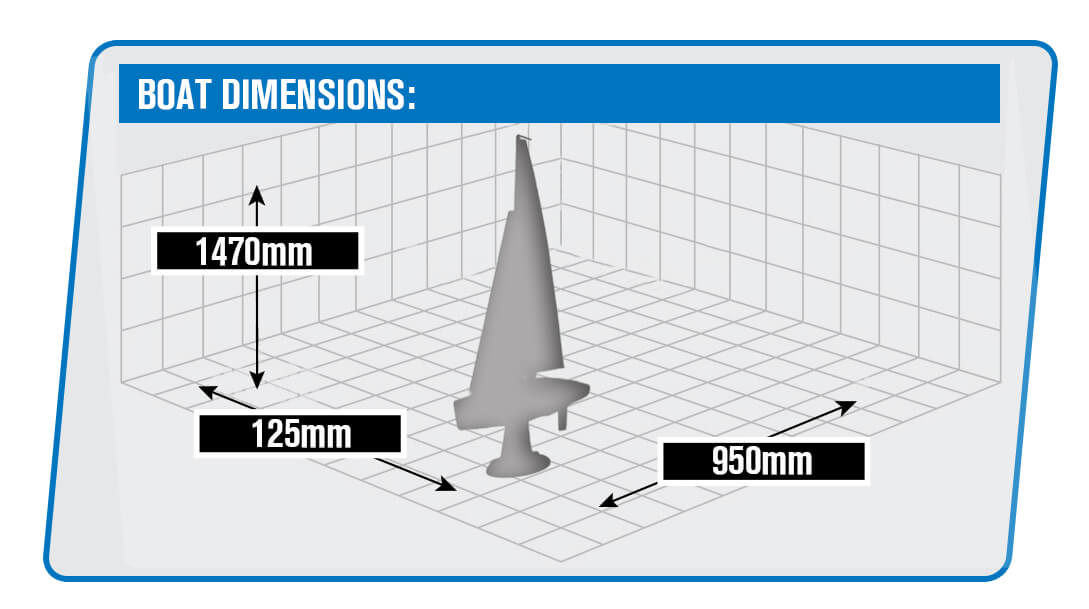

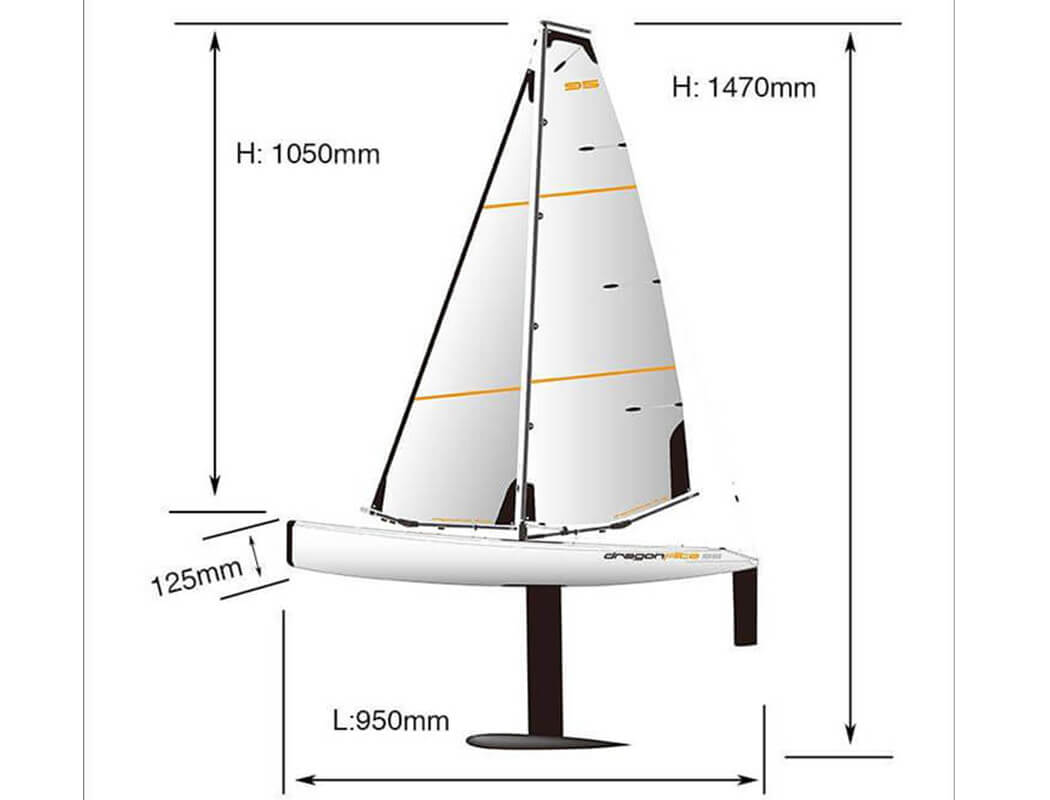

Specifications

Length: 950 mm
Width: 125 mm
Mast Height: 1050 mm
Overall Height: 1470 mm
Total Sail Area: 3736 cm2
Mainsail Area: 2314 cm2
FOC Surface Area: 1422 cm2
Power Supply: 4.8v - 6v

Required to Complete

• Transmitter and receiver to be purchased separately.
