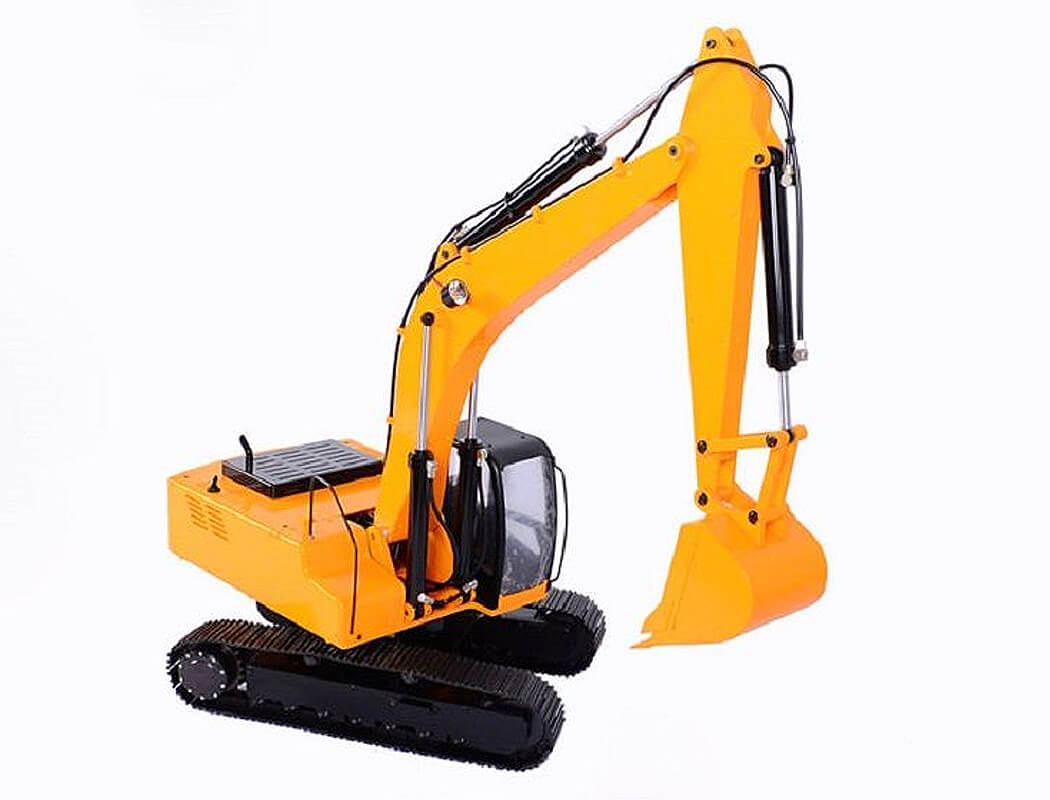

RC4WD 1/12 SCALE EARTH DIGGER 4200XL HYDRAULIC EXCAVATOR (RTR) (VERSION 2.0)

Description

Features

• 100% CNC Machined Aluminum (except Track and Hydraulic Pump)
• Custom 8 Channel 2.4Ghz radio
• High Intensity Light (Super bright) (3 Watt)
• Optimized Steel Hydraulic system

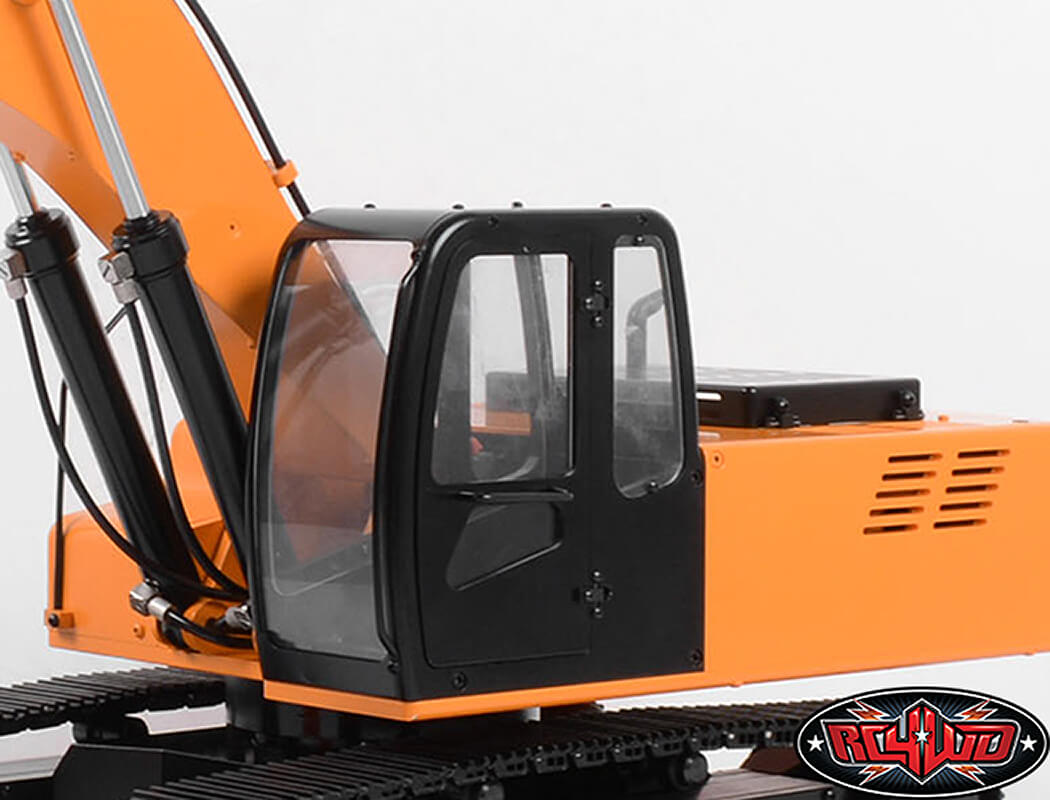

• Scale operator station (can fit a driving figure and seat)
• Steel Molded Tracks (50mm Width, 45 grade carbon Steel)
• Efficient under carriage with Tracks
• Reliable Hydraulic valve and Adjustable Pump
• Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
• Bearing based undercarriage design
• Undercarriage rotate 360 degrees (Endless)
• Powder coated in yellow

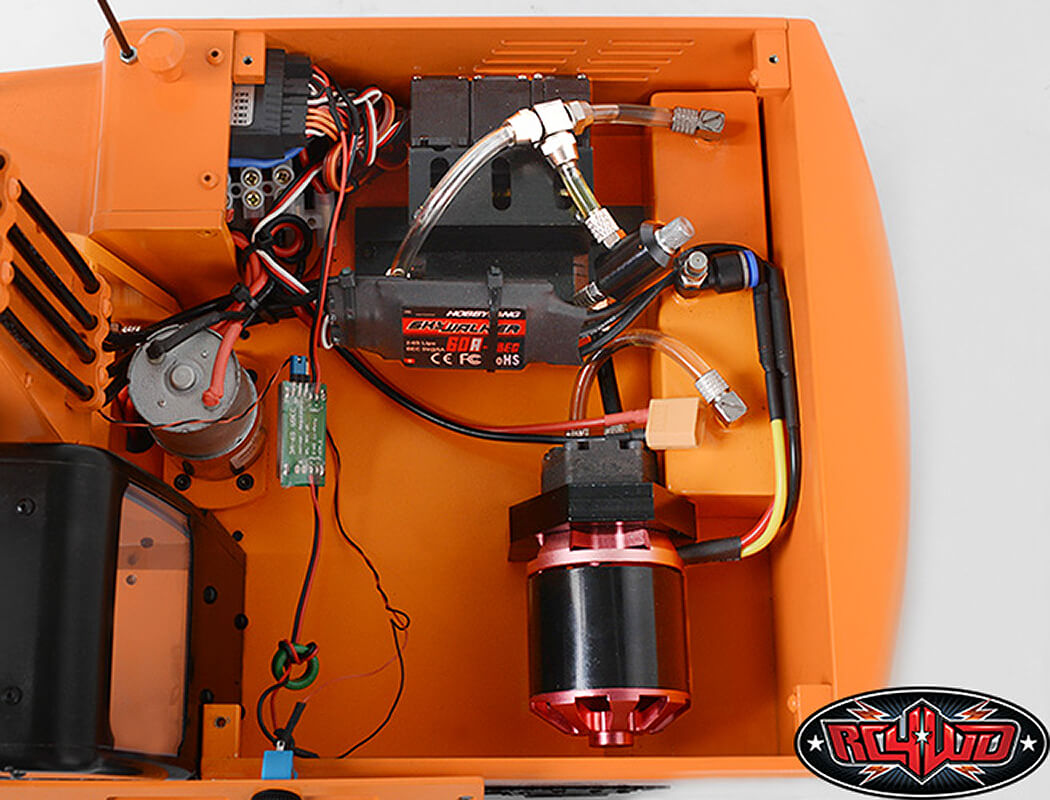

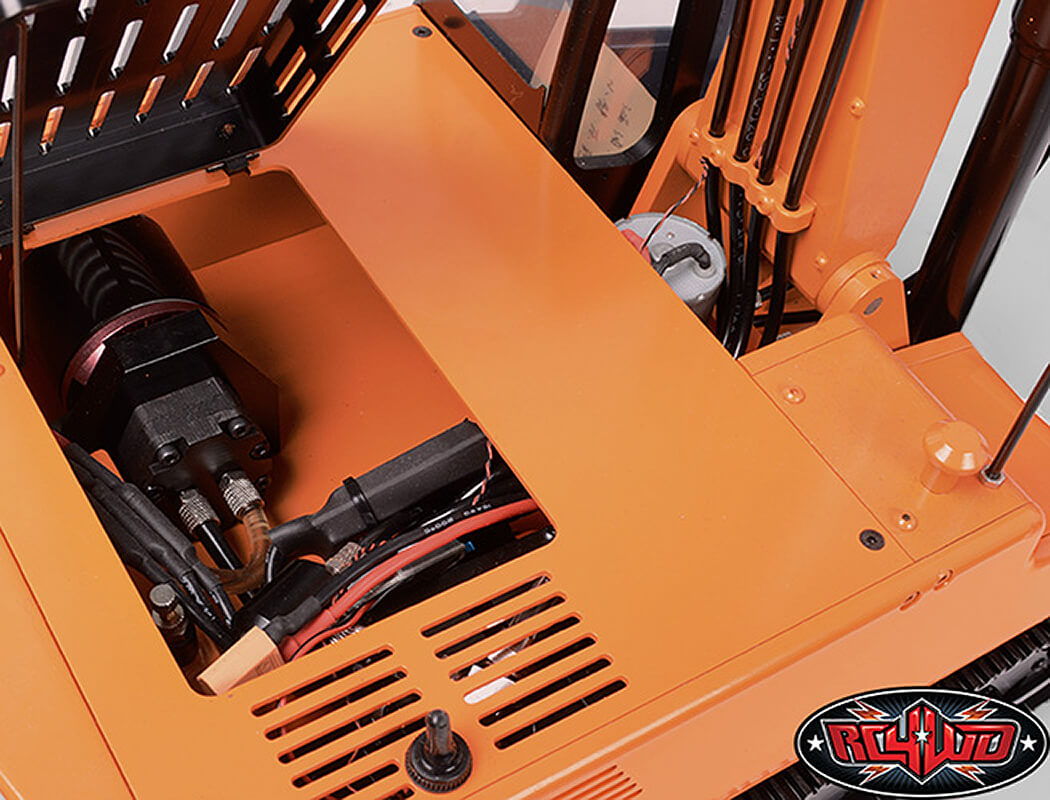

• Massive brushless system (Hydraulic)
• 60A brushless ESC with BEC
• 350KV brushless monster torque motor (4130 OutRunner, 6mm Shaft)
• Neodymium magnets
• Belt/track is controlled individually
• XT60 Power Plug Female
• Lipo Cutoff
• Run time is: 40-50 minutes (6500mAh battery)
• Steel Machined Oil Pump (45mm X 30mm X 15.5mm)
• Digging force: 15kg / 33pounds
• Driving Speed: 310 Meter per hour

Specifications

Scale: 1:12
Dig Depth: 495mm / 19.4inch
Height of Cabin: 155mm / 6.1inch

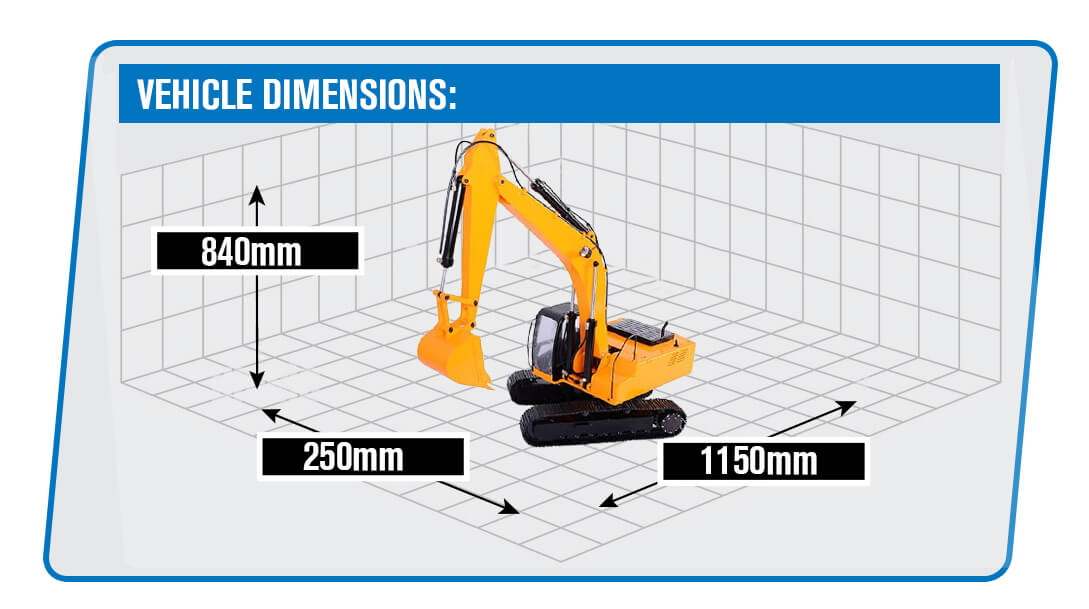

Length: 1.15meter / 45inch
Width: 250mm / 9.8inch
Height: 840mm / 33inch
Dead Weight: 20kg / 44lbs
Operating Oil Pressure: 20Bar, 290psi
Inside Cab Length: 4.72in / 120mm
Inside Cab Width: 2.55in / 65mm
Inside Cab Height: 5.31in / 135mm

Required to Complete

• Supply Voltage: 12V, XT60 Connector, We recommend=3S, 25C LiPo Battery.
• Compatible Battery Charger
• 8 x AA Batteries for Radio
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)
