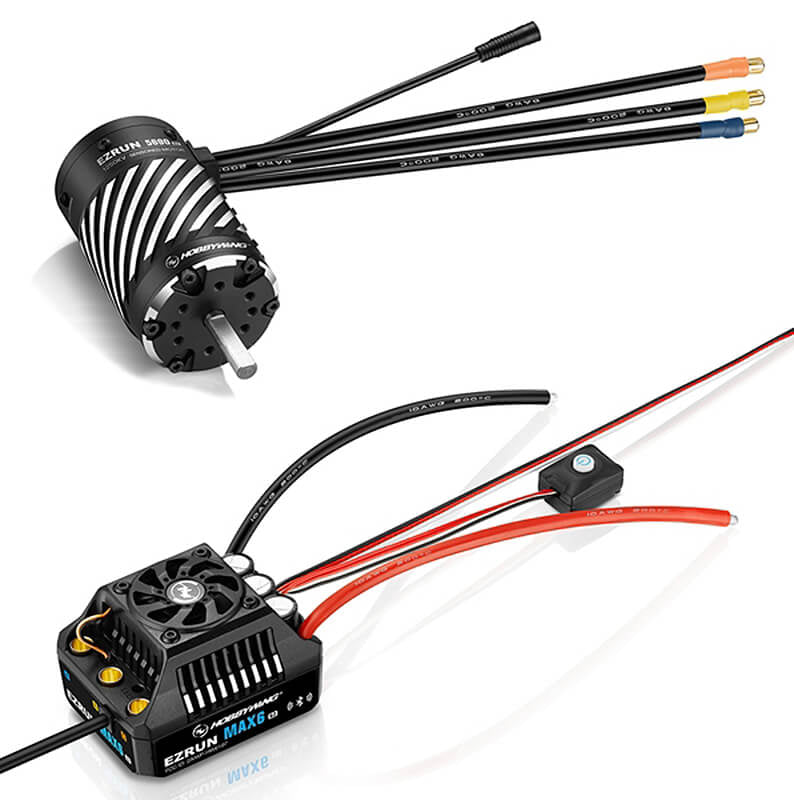

HOBBYWING COMBO EZRUN MAX6 G2 ESC + 5690SD-1250KV G2 MOTOR

Description

Features

Elegant Appearance.

The motor casing adopts an innovatively spiral groove heat dissipation structure. It not only has good heat dissipation, but visually appealing.

8S Sensored Motor.

Wider Adaptability. Motor comes with 6.5mm plugs pre installed onto the motor power wires. Additional 8mm size motor plugs are included for usage with ESC's that have larger sized 8mm motor plugs like the Max5 G2.

• New Sensor Line Interface.
• All Weather Operation Capability.

Wider Adaptability.

Motor comes with 6.5mm plugs pre installed onto the motor power wires. Additional 8MM size motor plugs are included for usage with ESC's that have larger sized 8mm motor plugs like the Max5 G2.

Please Note:The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use, but it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

Module design for easy maintenance.

The motor adopts a modular structure design, which is convenient for daily cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specifications

Scale: 1/6th, 1/7th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Yes
Cont./Peak Current:200A/1100A

Input

Battery: 3-8S LiPo
Output: BEC Output
Switch Mode: 6V/7.4V/8.4V @8A

Wires & Connectors

Input Wires: Black-10AWG-200MMmm*1 Red-10AWG-200MMmm*1
Input Connectors: 6.5mm Connectors (Female)

ESC Programming via

SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Not Supported
OTA Programmer: Not Supported
Programming Port: Built in Bluetooth

Fan

Size: 35x35x10mm
Output Wires: 5-8.4V
Input Connectors: Powered by BEC

Firmware

Firmware Upgrade:Supported

Size & Weight

Size: 70X56X45.5mm
Weight:245g (Including input wires)

Applications

Motors:1/6th&1/7th On-road,Truck,Monster Truck

Vehicles

Losi 1/6 Super Baja Rey/Super Rock Rey,Traxxas XRT/X-MAXX/XO-1
ARRMA 1/7 Limitless/Fireteam/Felony/Infraction/Mojave,Cen 1/7 Reeper
ARRMA Kraton 8S/Outcast 8S,HPI Baja 5B
