Description
Features
- Surface Treatment: None
- Processing Method: Die Cast
- Material: Zinc Alloy
- Reduction Ratio: 1:61.44 (Max); 1:9.83 (Min)
- Gear Ratio: 1:24.57
- Pulley Ratio: 1:2.5 Start, 2.5:1 maximum Rotating Speed

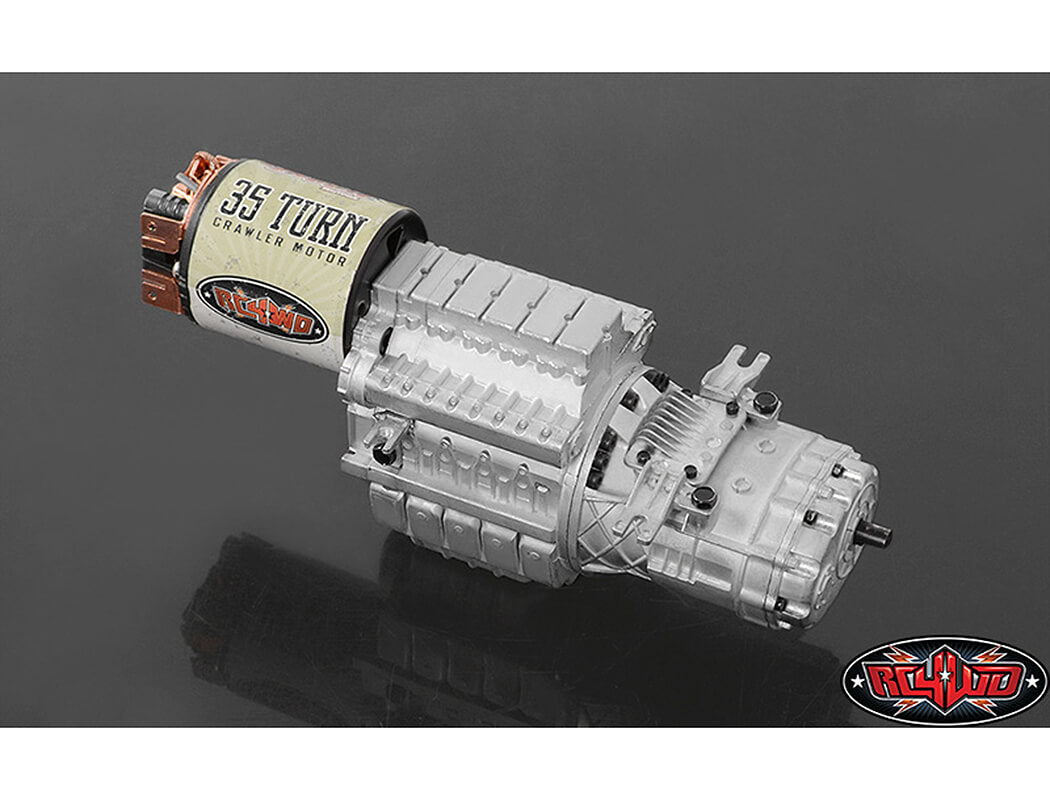

- Recommended Brushed Motor: 12V540 Brushed Motor 27T~35T; Rotating Speed Range: 13200-16500 turn/MIN
- Recommended Brushless Motor: 12V540 Brushless Motor 1300KV~1500KV; Rotating Speed Range: 15000-18000 turn/MIN
- Output Shaft Diameter: 0.19in / 5mm; Length: 0.23in / 6mm

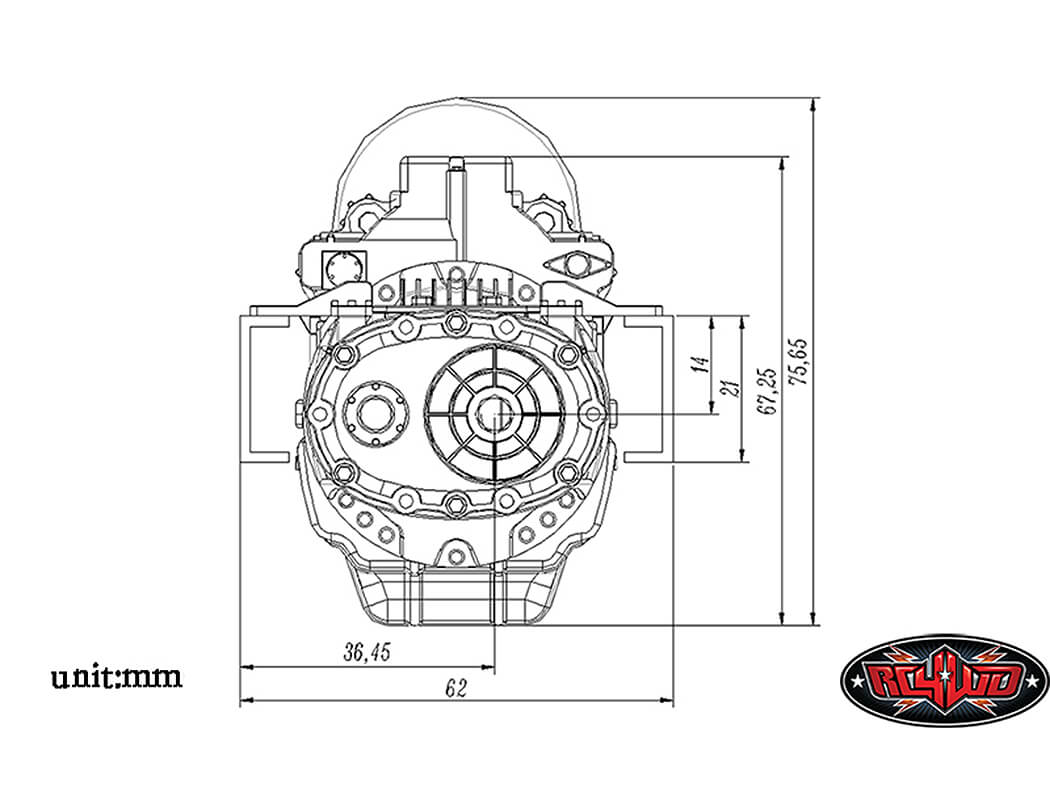

- Mounting Holes: Chassis Direction X(2.16in / 55mm); Axle Direction Y(2.08in / 53mm)
- Transmission Length: 4.33in / 110mm
- Mounting the Motor total Length: 6.37in / 162mm

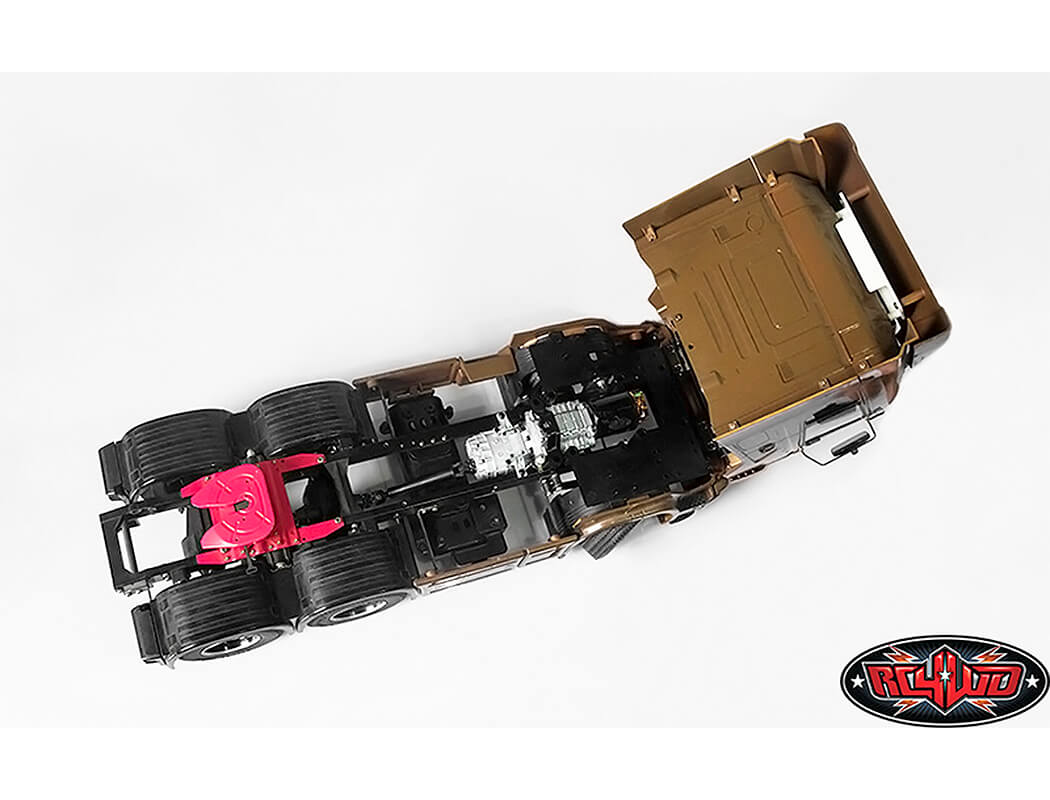

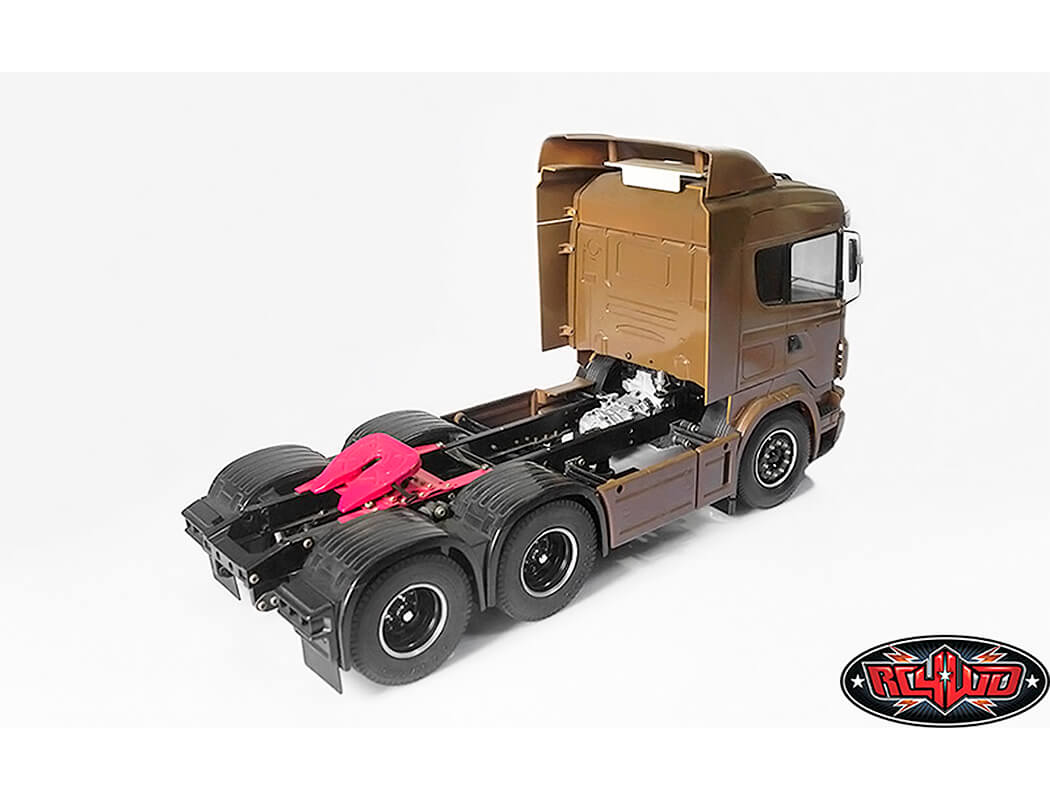

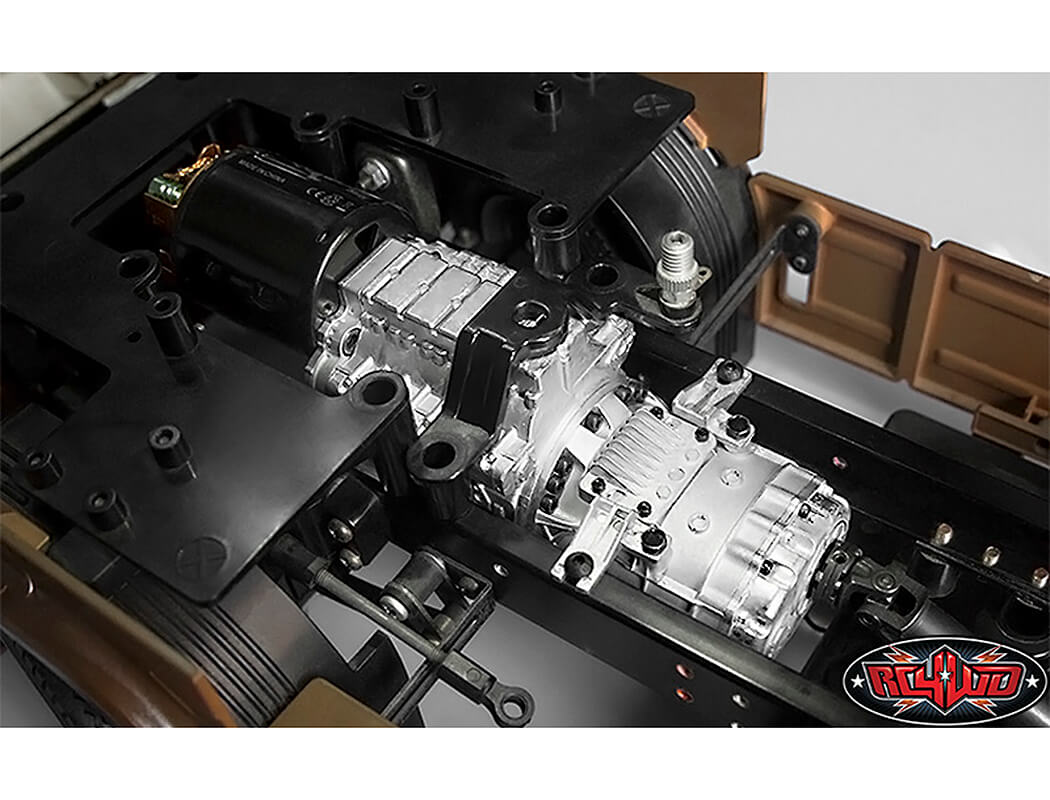

- Designed to fit Tamiya 1/14 Semi Truck or Custom Project
Specifications
Weight: 26.17oz / 742g
