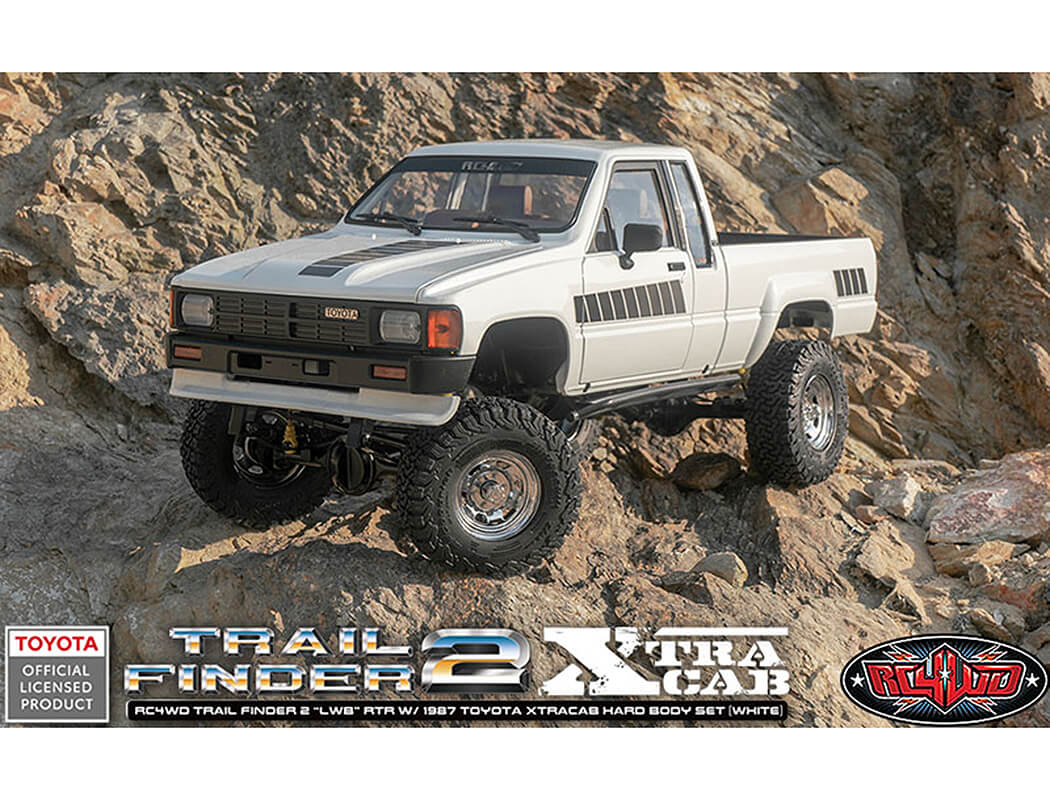

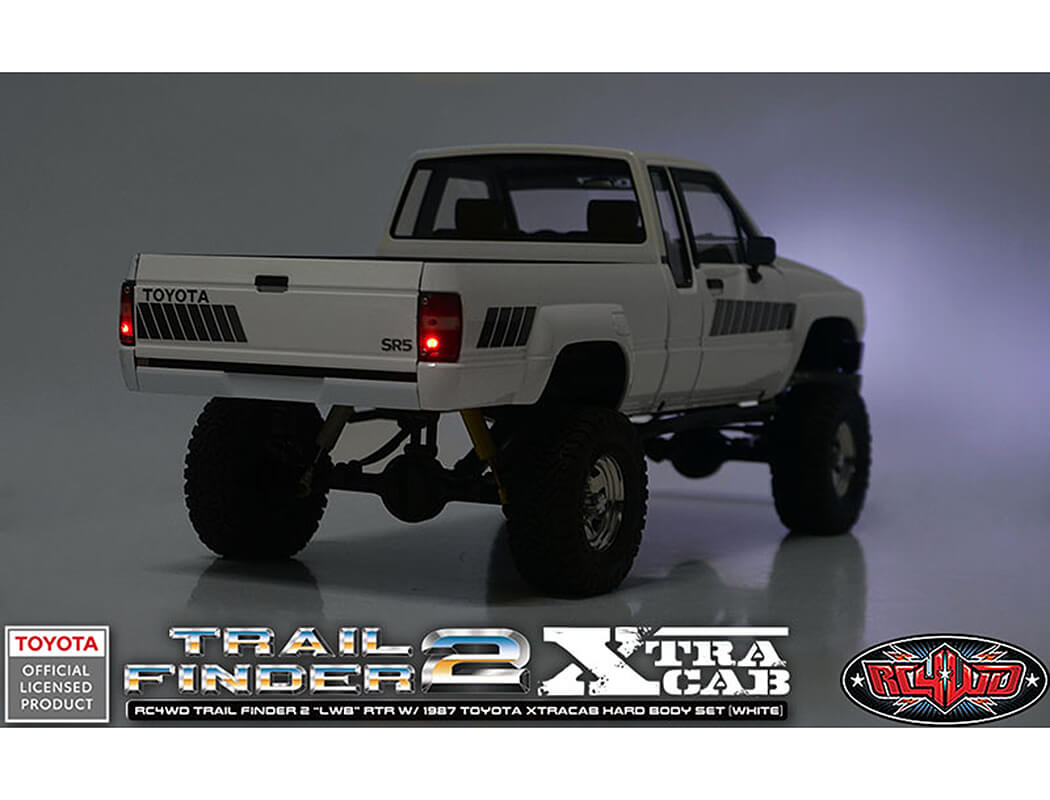

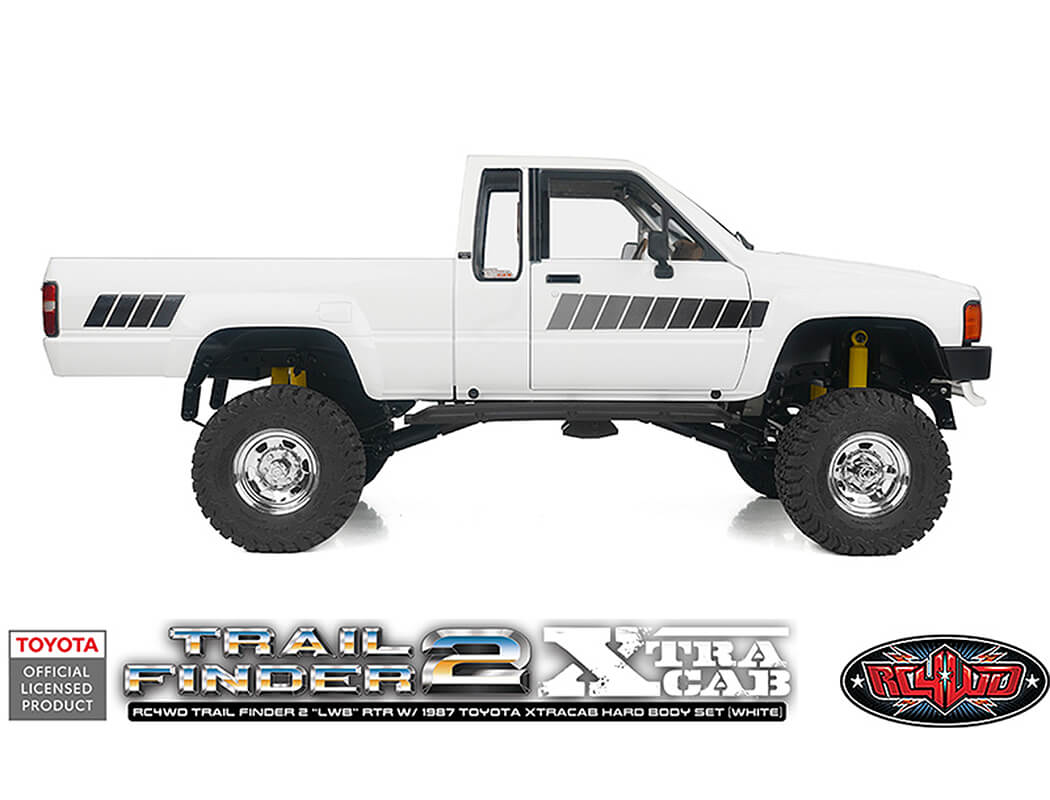

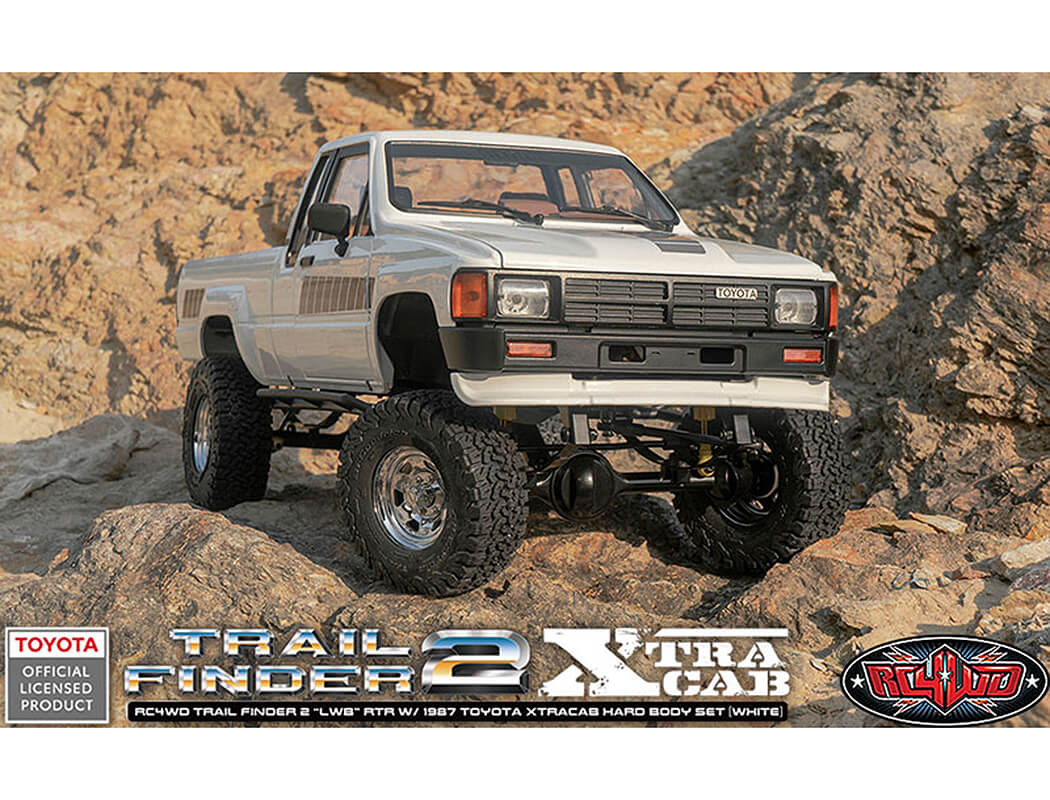

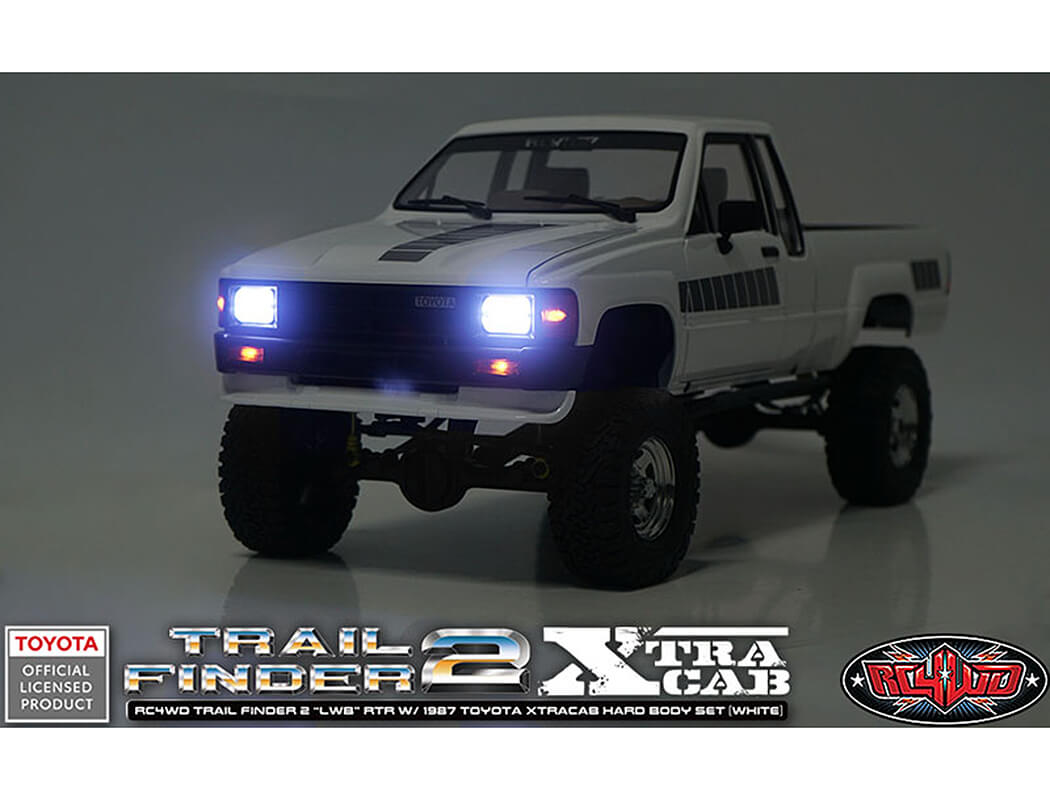

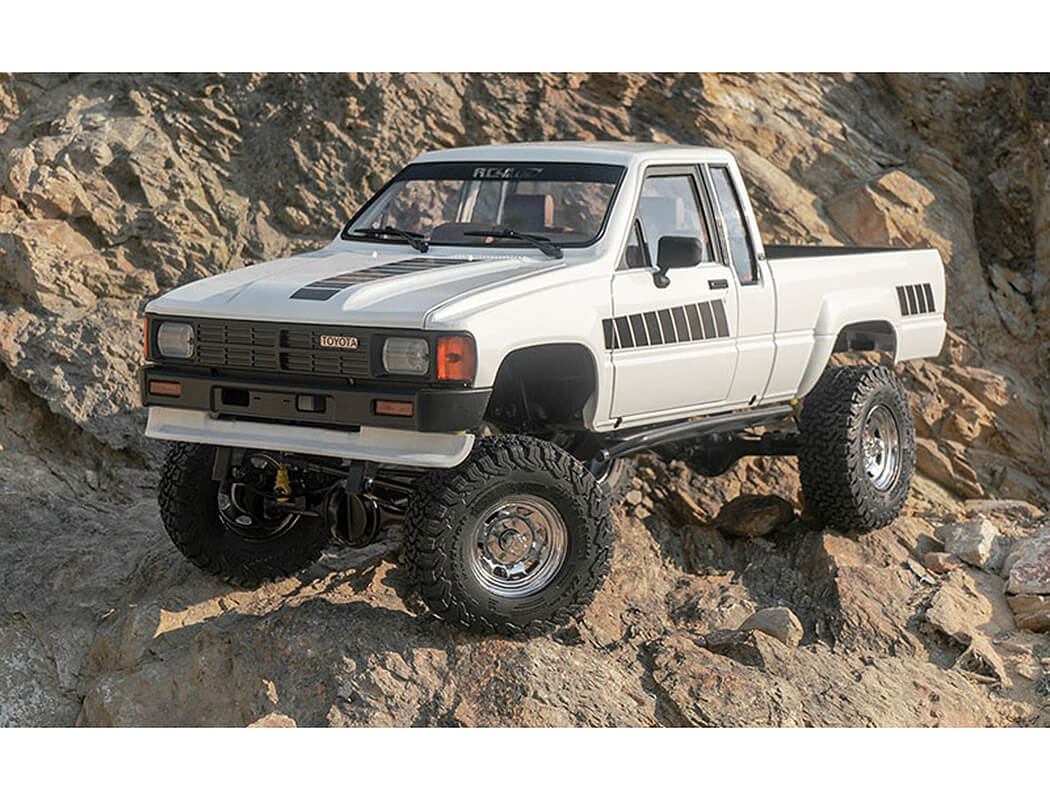

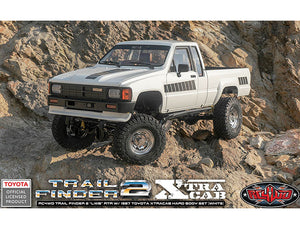

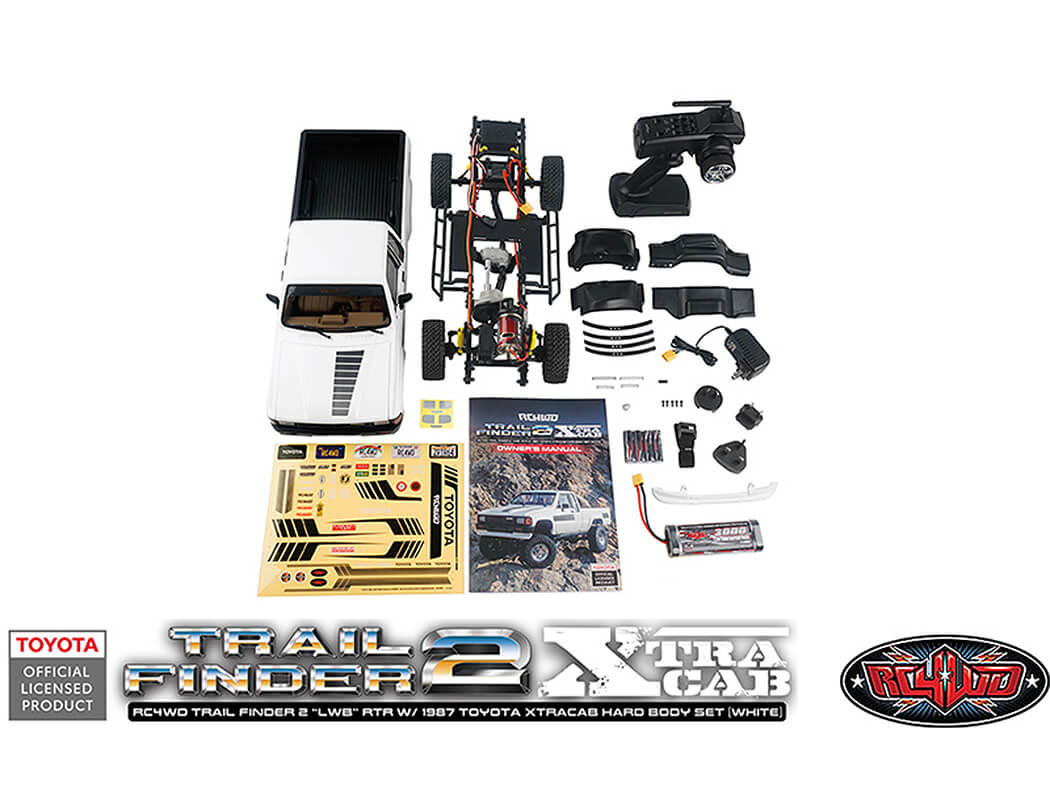

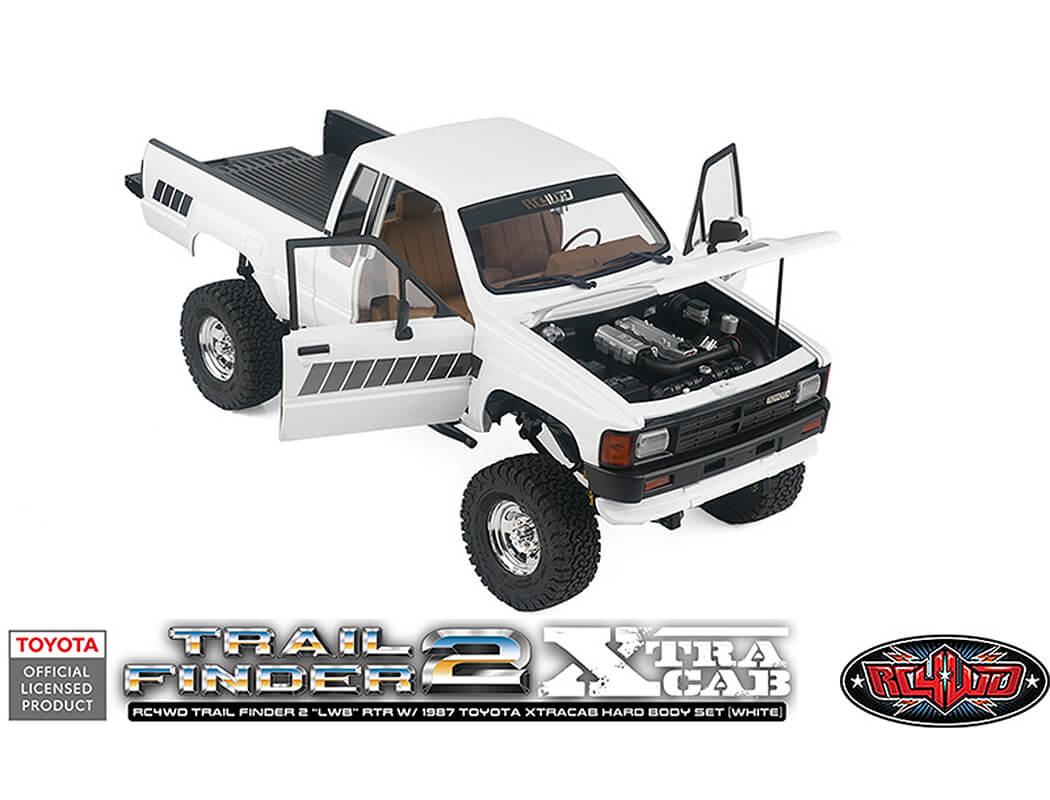

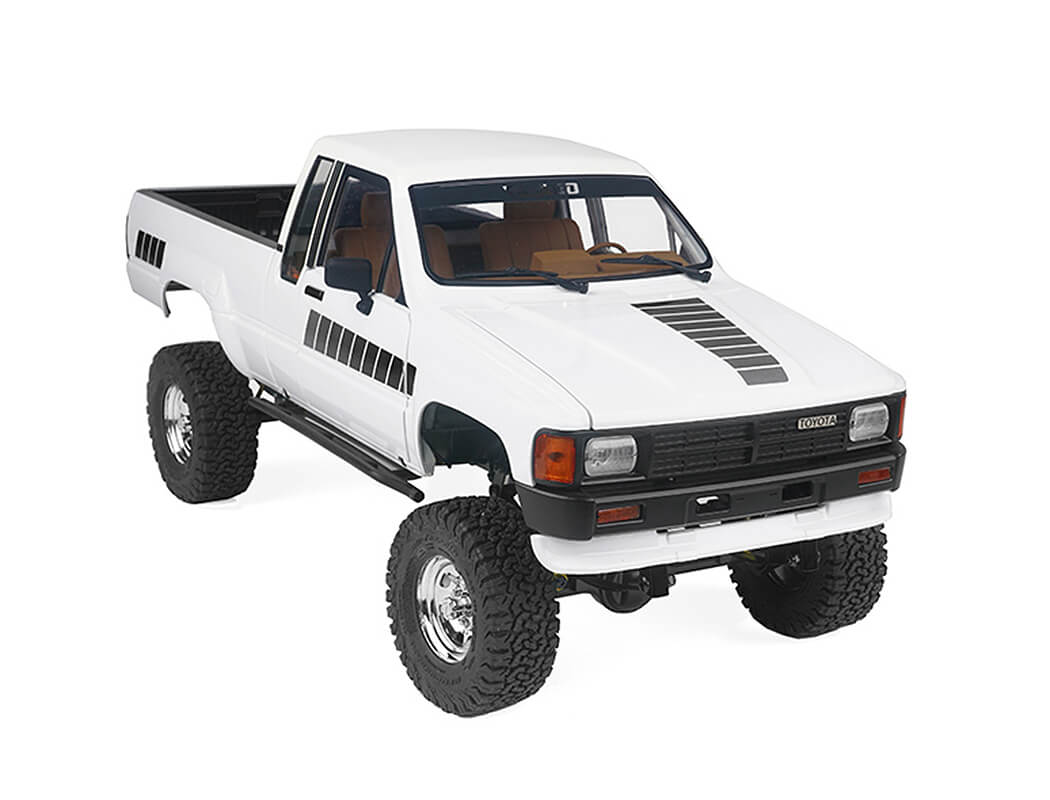

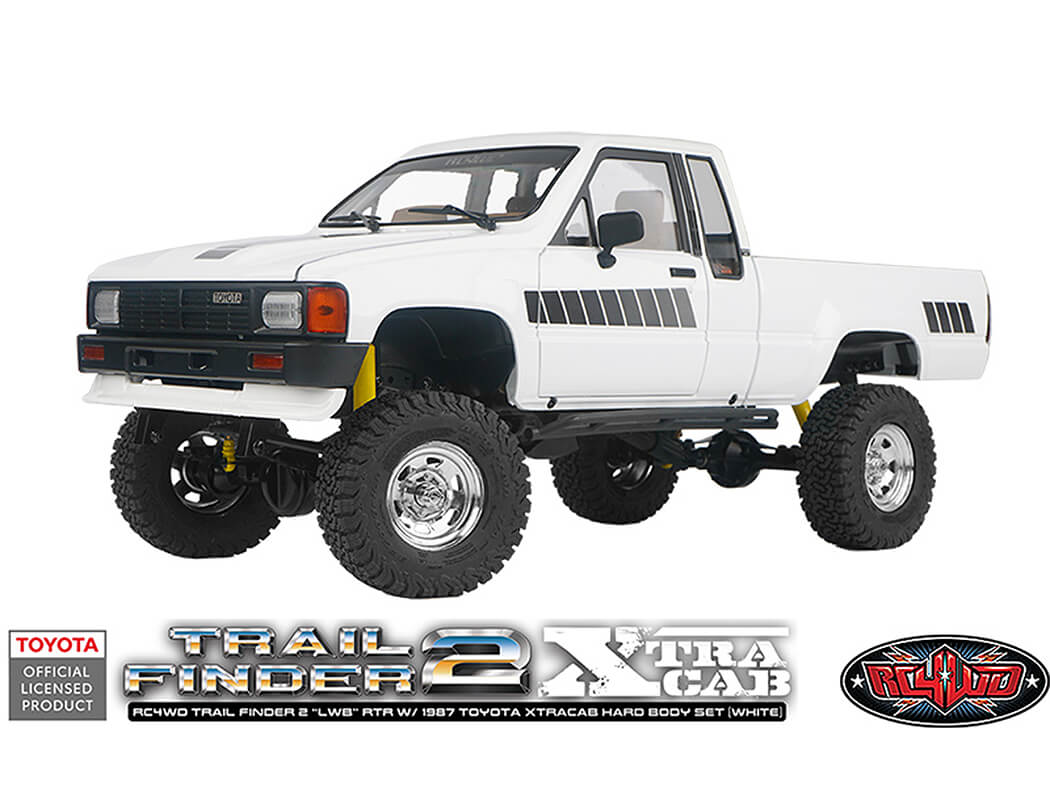

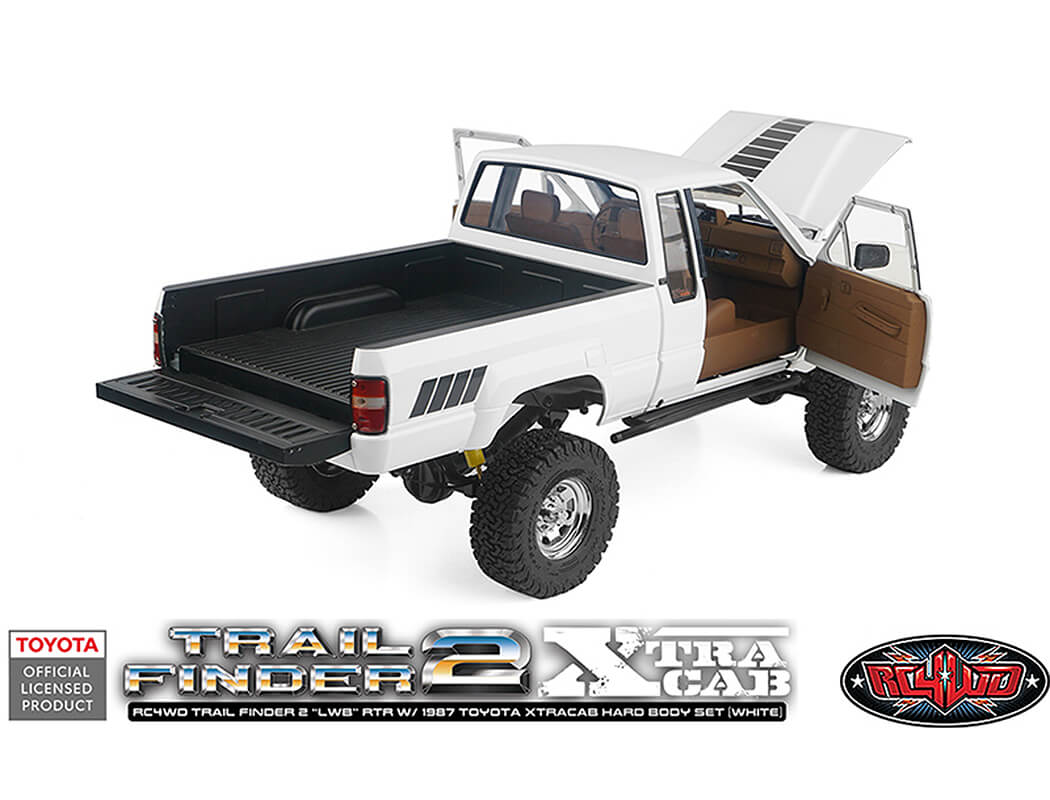

RC4WD TRAILFINDER 2 LWB RTR WITH 1987 TOYOTA XTRACAB HARD BODY

Description

Features

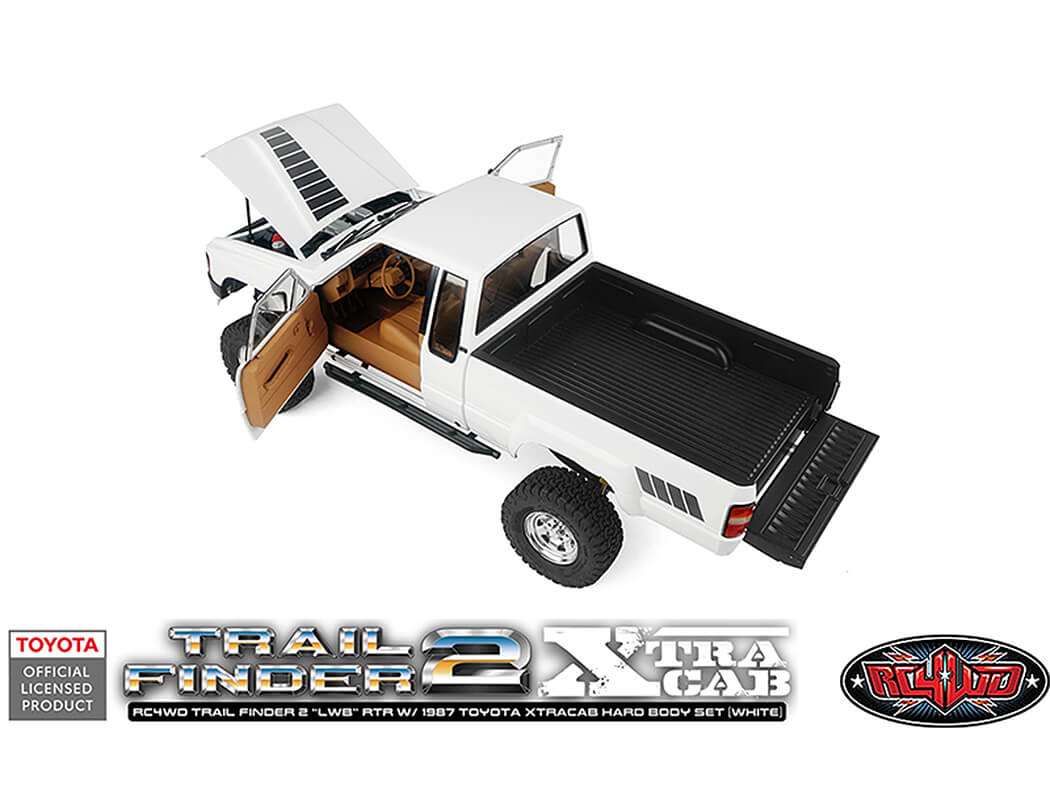

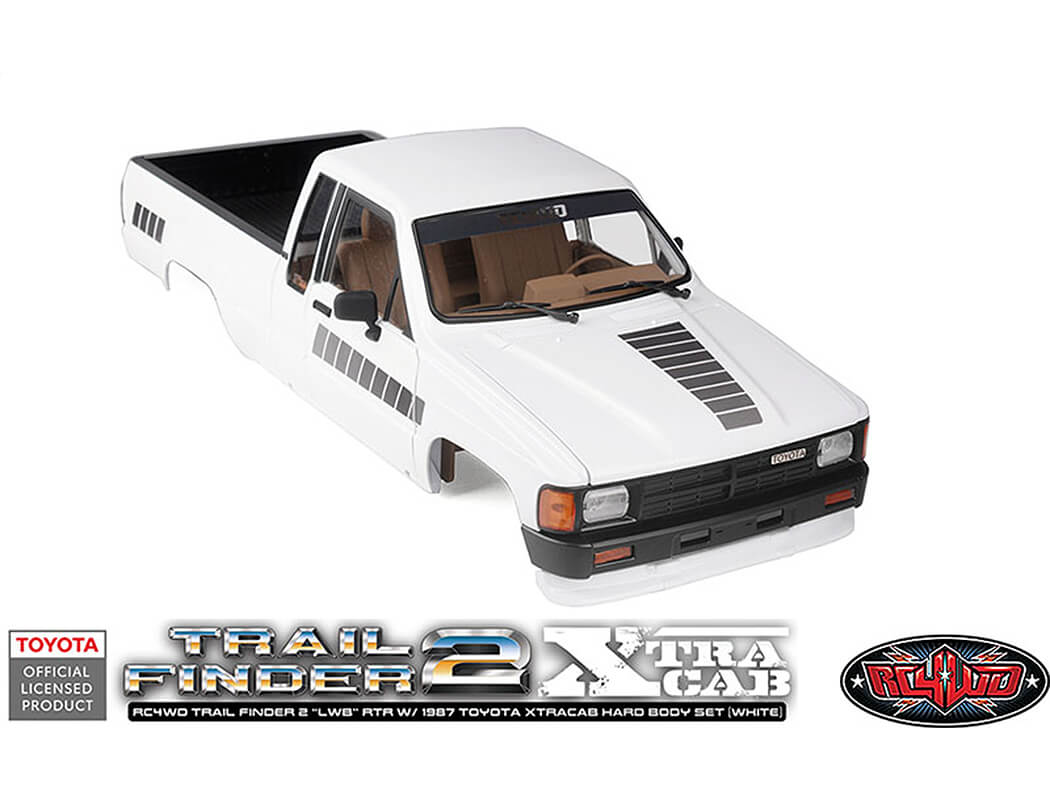

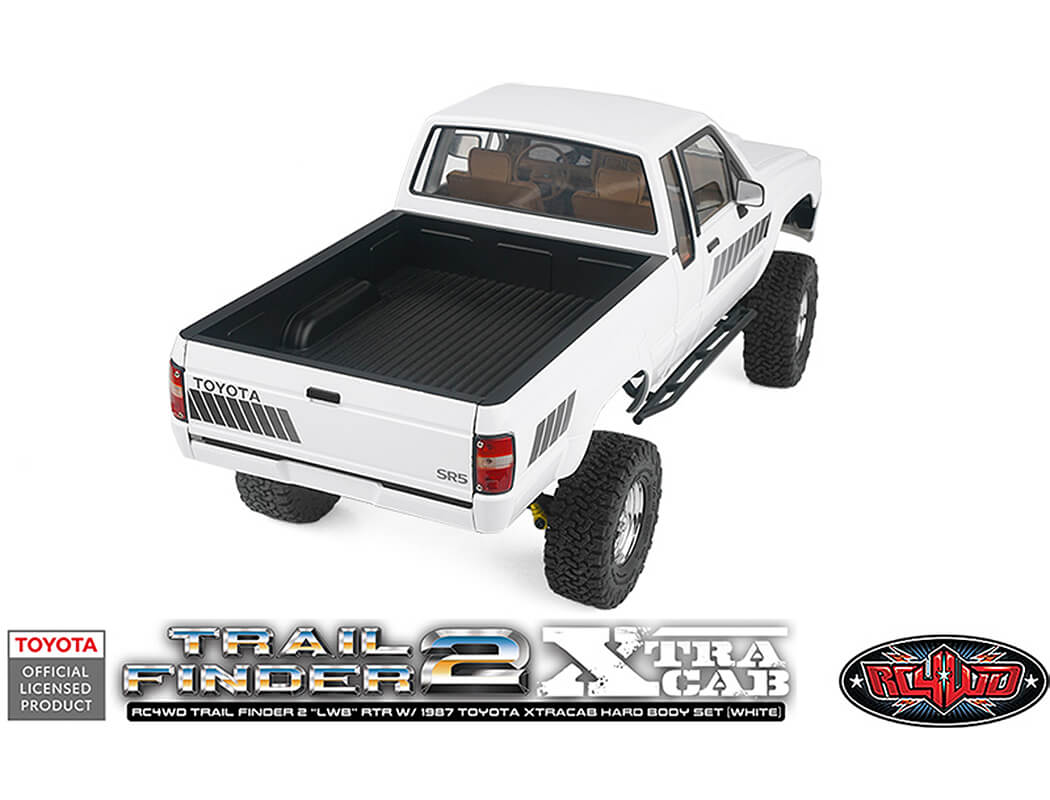

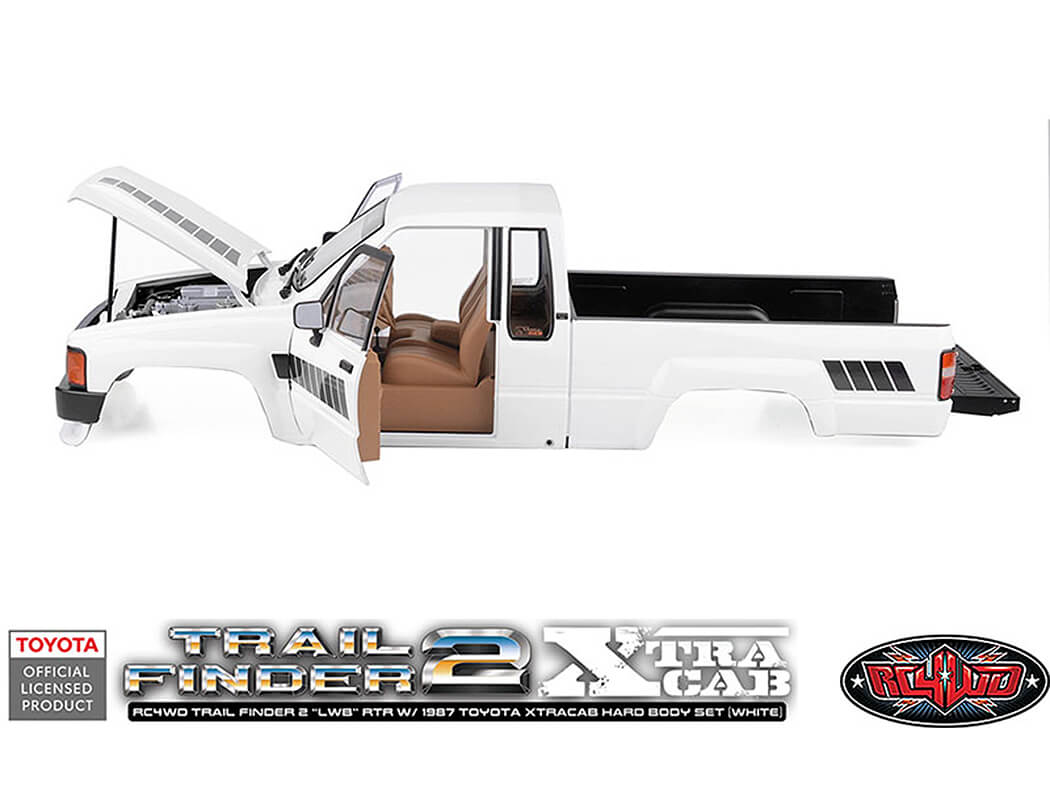

• 1987 Toyota Xtracab Body Set in White

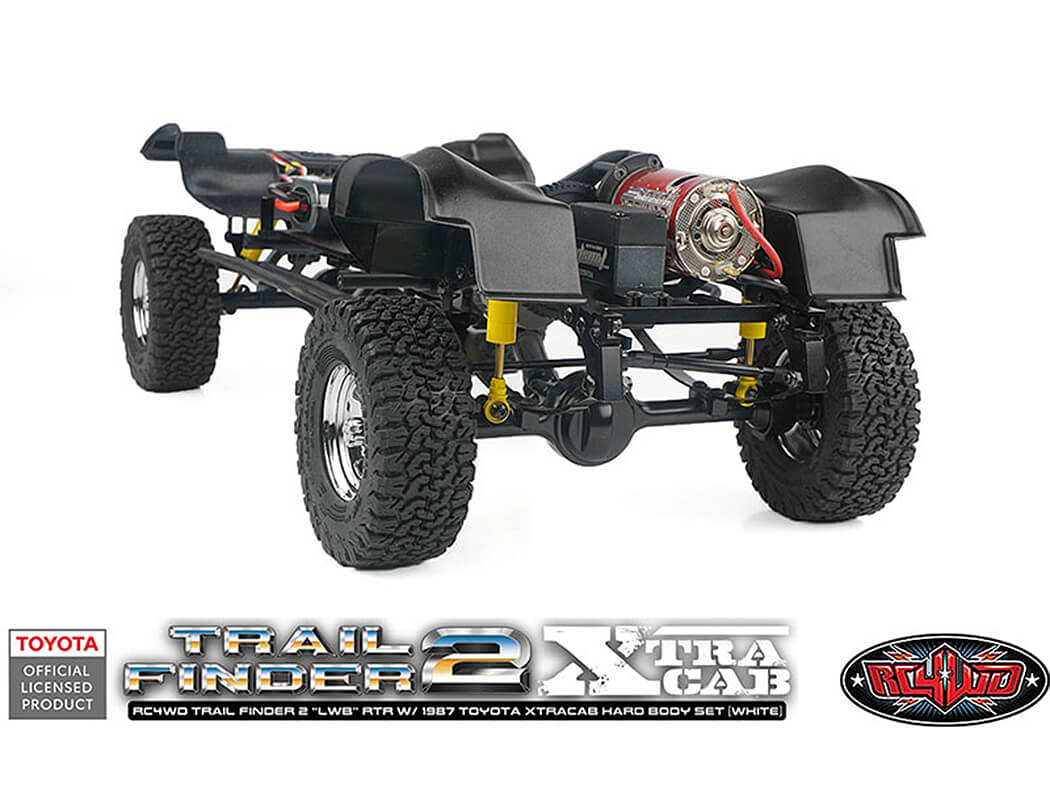

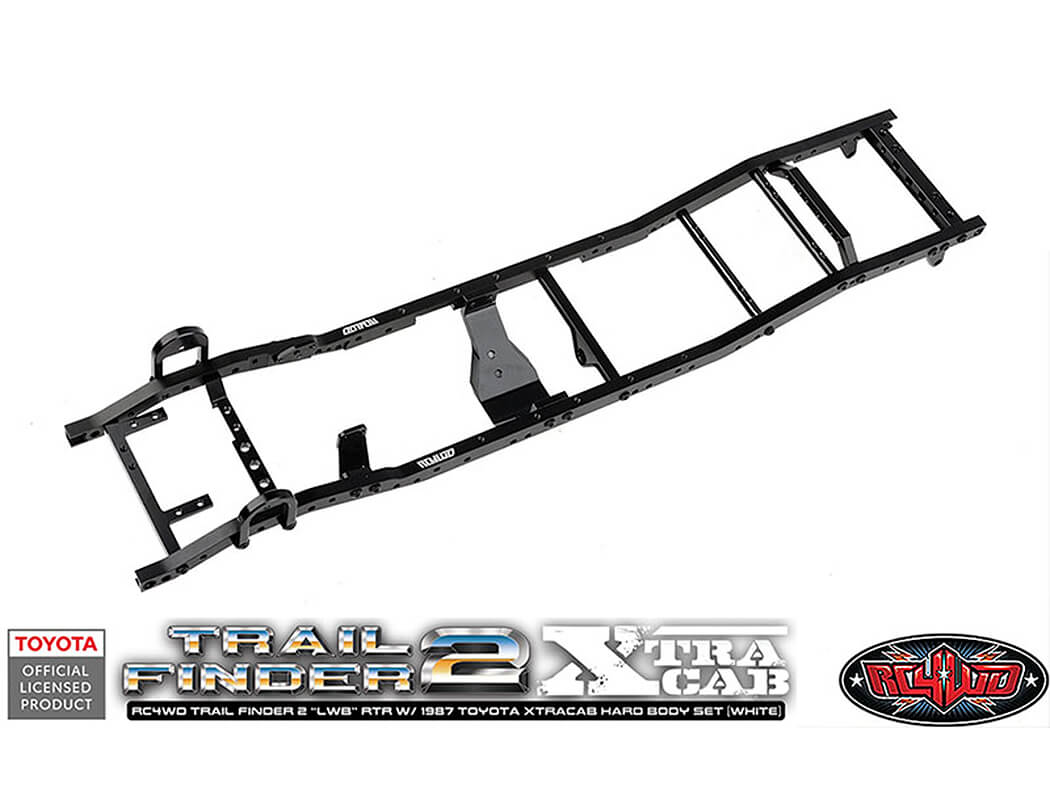

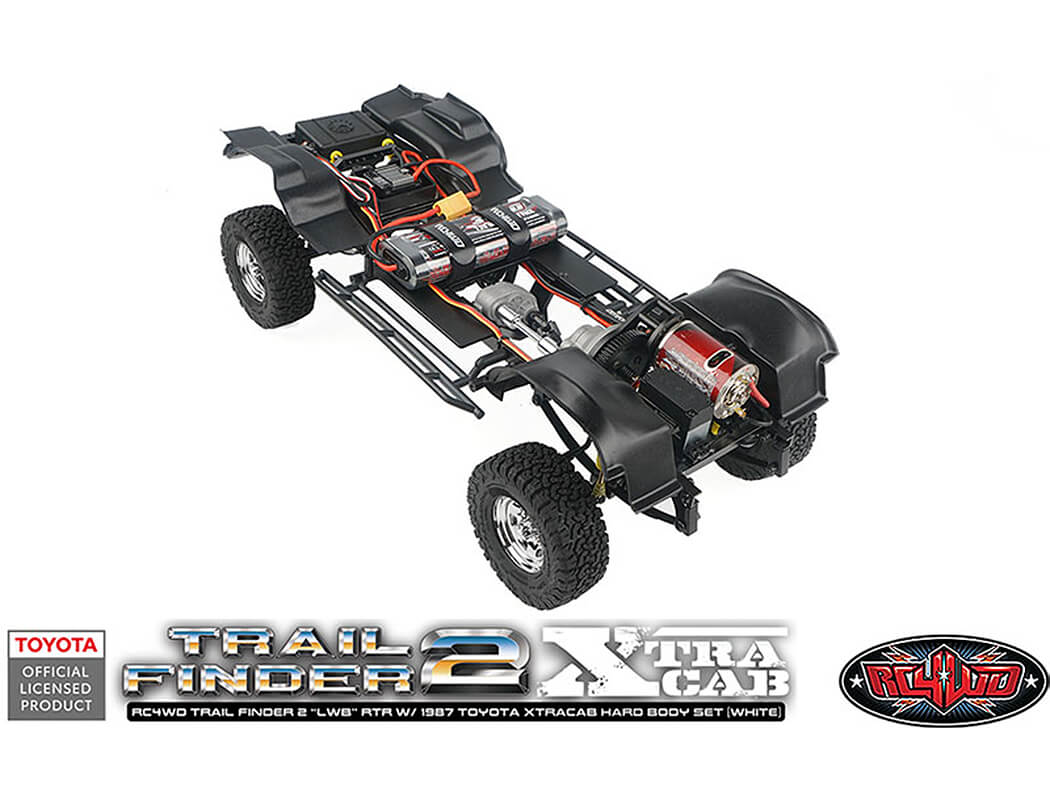

• Realistic Billet Aluminum Ladder Frame Chassis
• R3 Single Speed Transmission

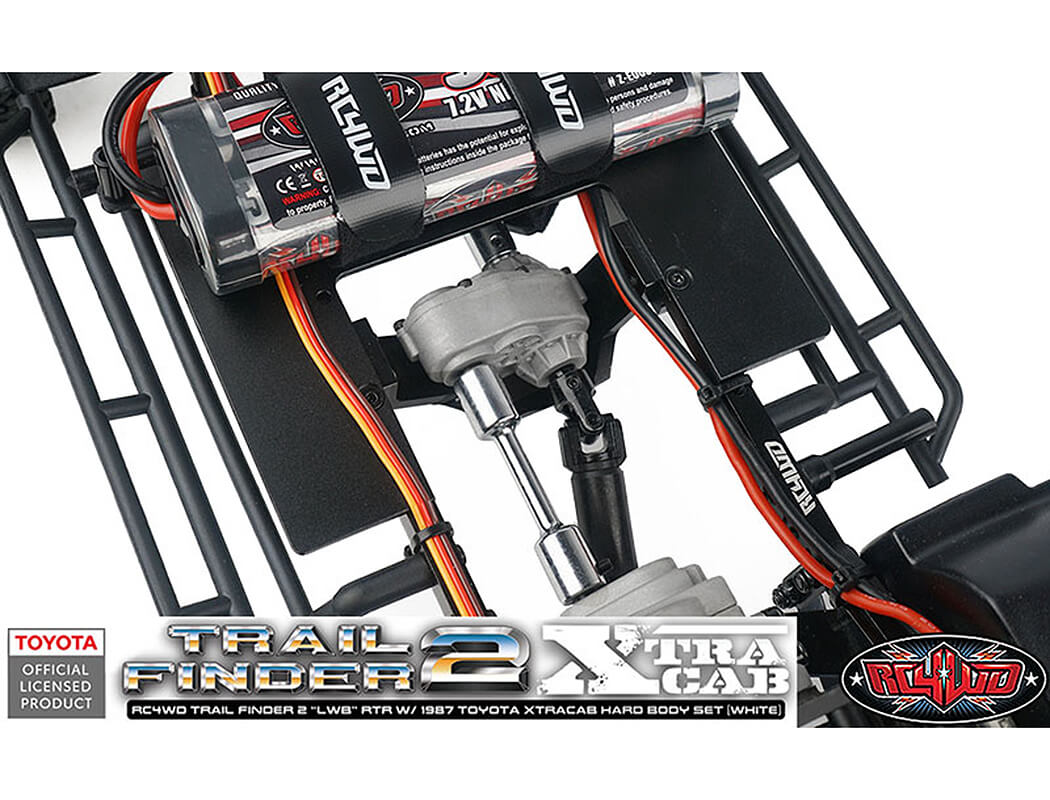

• Center Mounted Realistic Hammer Transfer Case
• 540 Crawler Brushed Motor 45t
• Outcry III Waterproof ESC
• 6-Cell 3000Mah Nimh Battery Pack
• Yota II Ultimate Scale Cast Axles (XVD)
• Twister High Torque Metal Gear Digital Servo

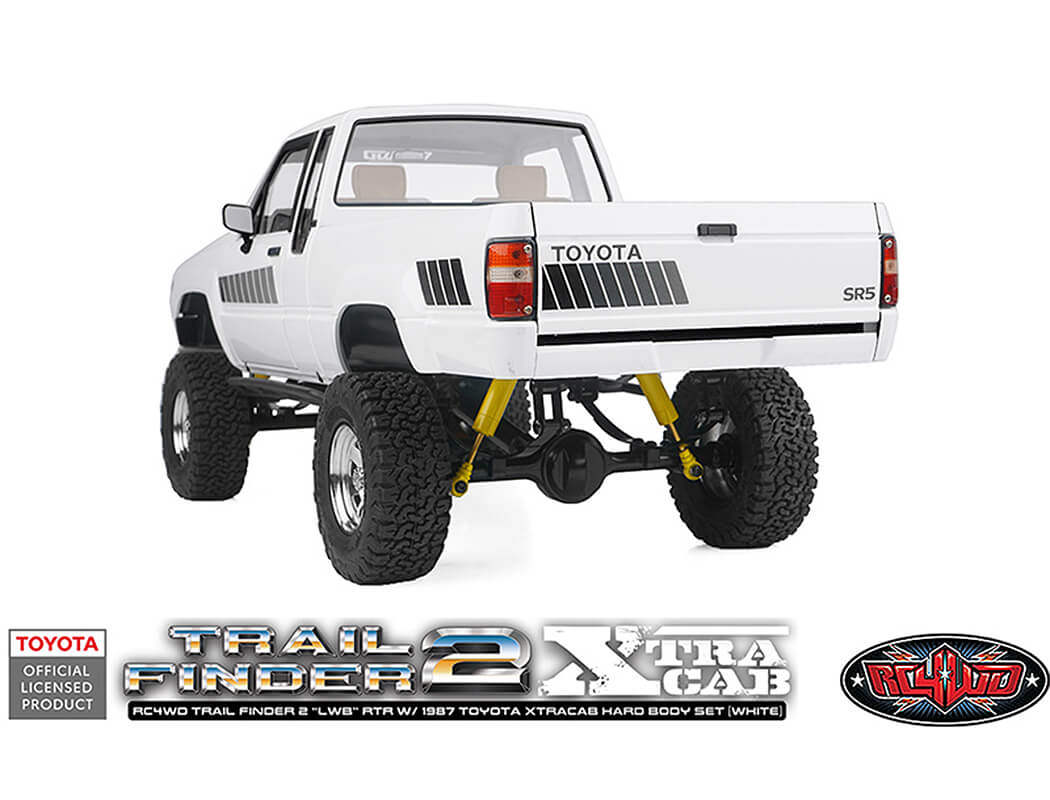

• RC4WD Ultimate Scale Shocks (70/90mm) (Yellow)
• Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)
• RC4WD BFGoodrich All Terrain K02 1.7" Scale Tires

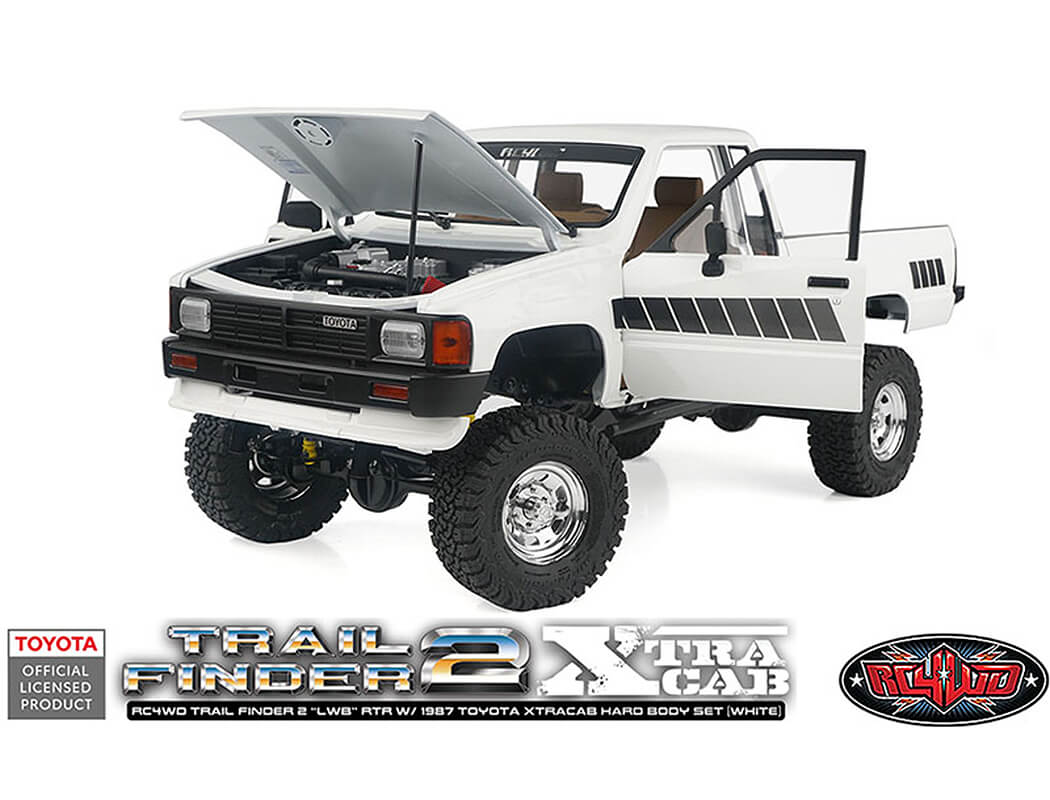

• Yota 22RE Engine Bay
• RC4WD Marlin Crawler Side Plastic Sliders
• RC4WD Inner Fender Set for Toyota 4Runner and Xtracab
• NiMH Peak Battery Charger
• Xr3 3-Channel 2.4Ghz Transmitter/Receiver Radio

Specifications

Hammer Transfer Case
Ratio: 1.47: 1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

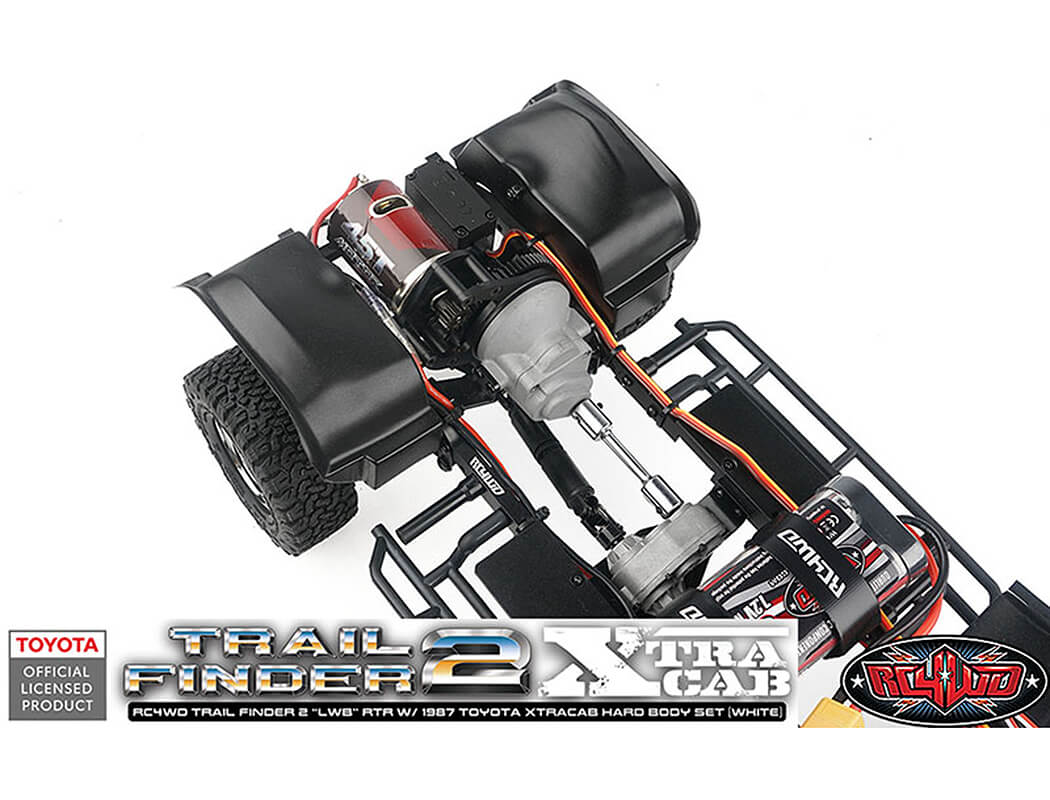

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

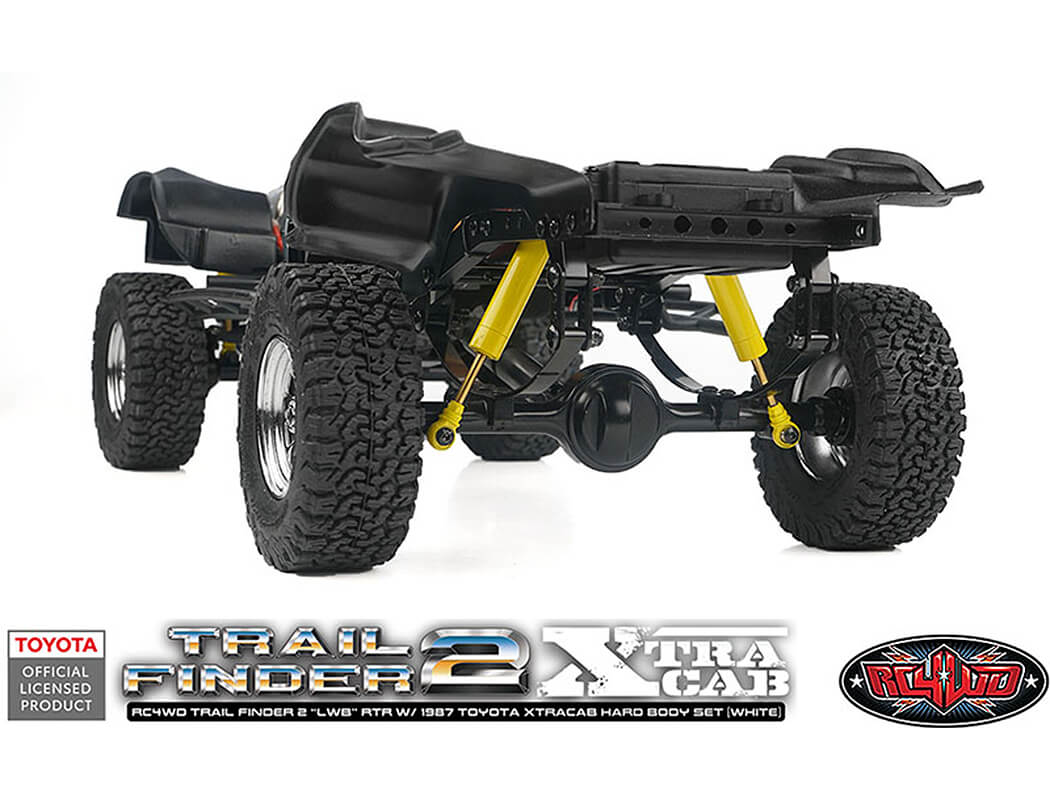

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 178.2mm

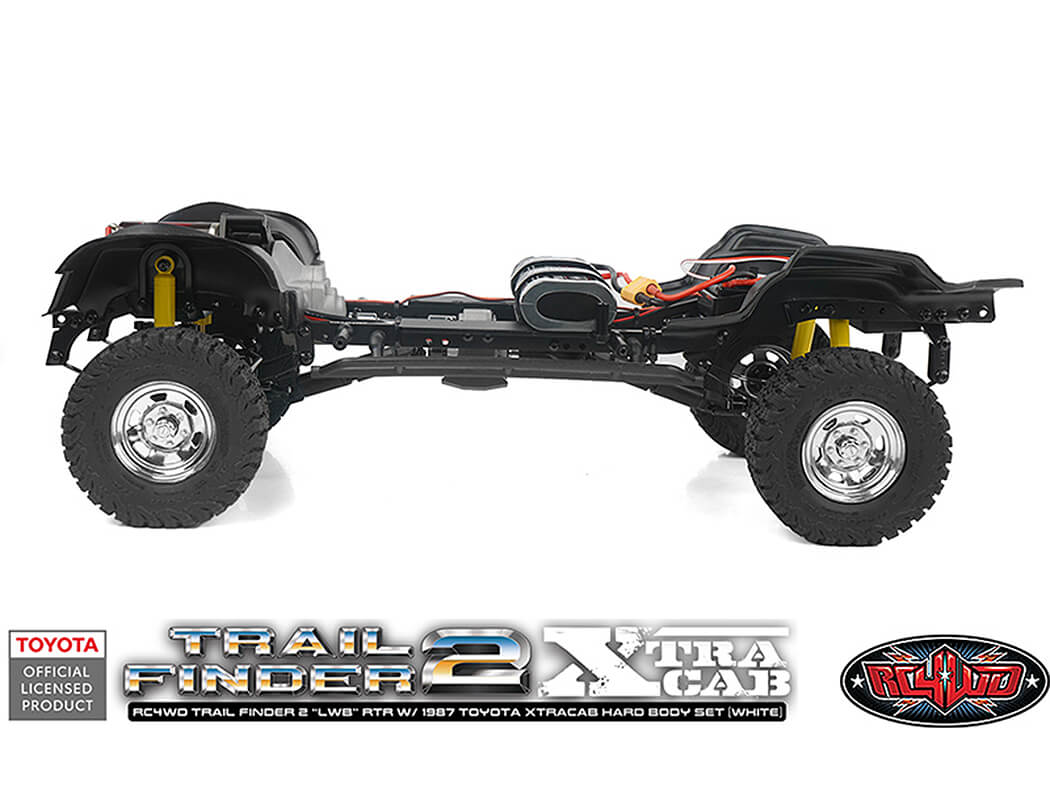

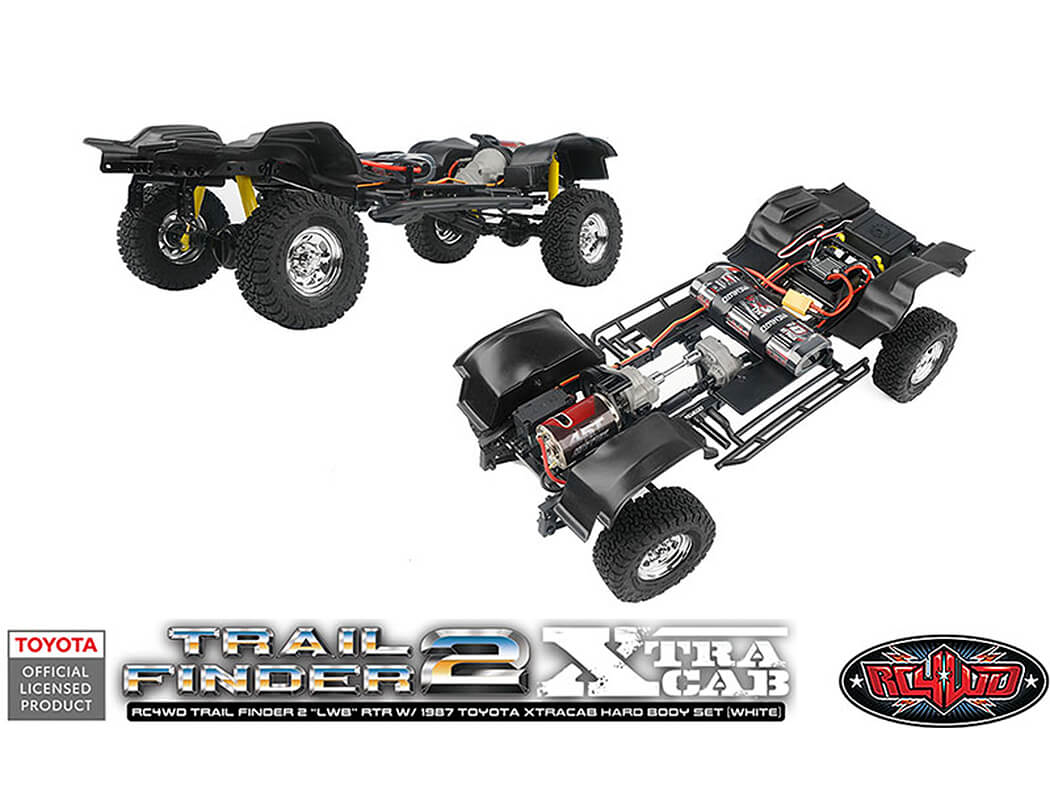

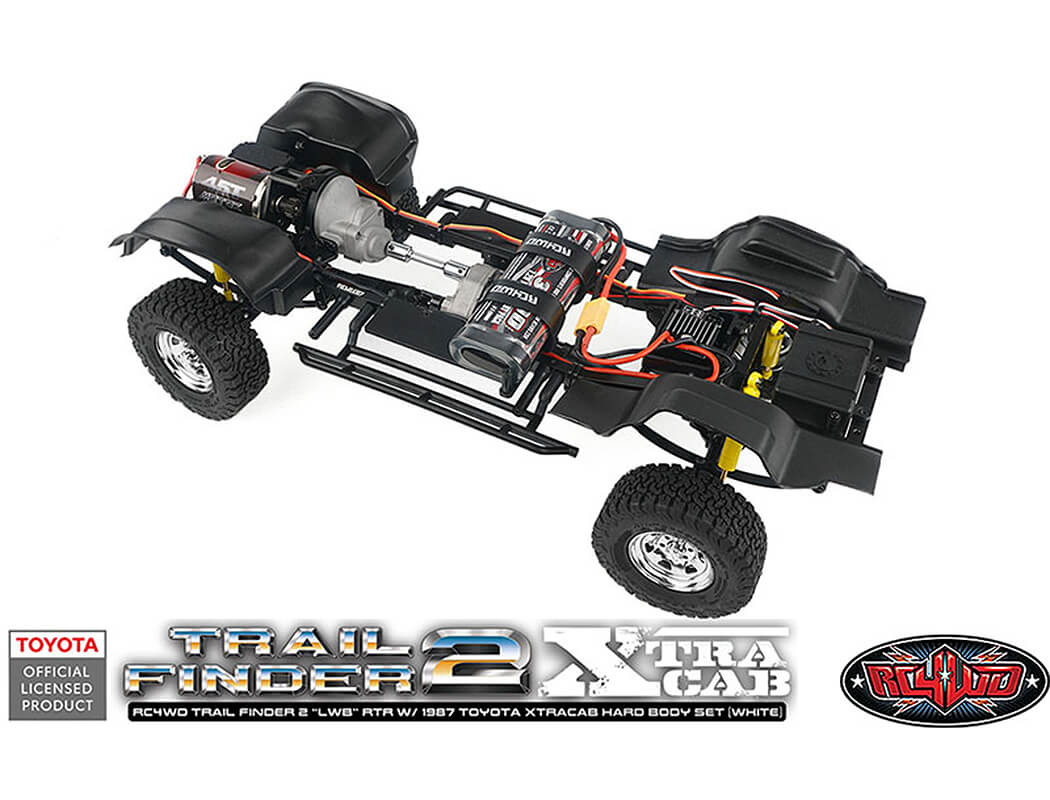

Trail Finder 2 "LWB" Chassis
Billet Aluminum Constriction
Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material
Durable High Steel Yokes

Wheels
Type: Stamped Steel 1.7" Beadlock SR5 Wheels (Chrome)
Hub: 12mm Hex
Width: 23.0mm (0.90")
OD: 47.0mm (1.85")

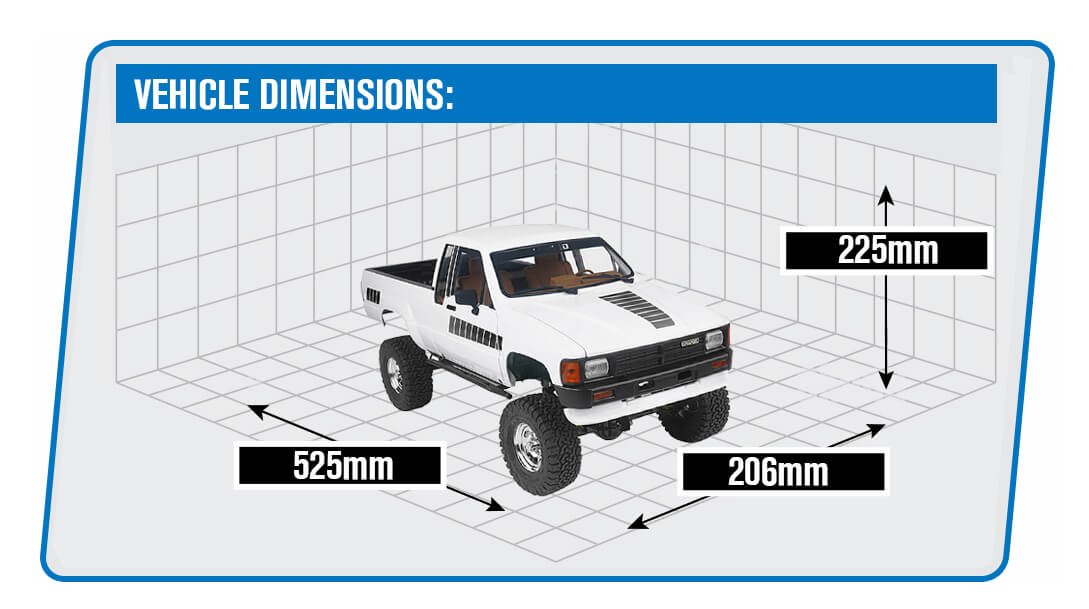

TF2 Truck Dimensions
Wheelbase: 314.2mm (12.4")
Width: 206.0mm (8.1")
Height: 225.5mm (8.9")
Ground Clearance: 58.0mm (2.3")
Final Drive Ratio: 31.93:1
