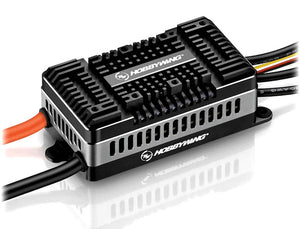

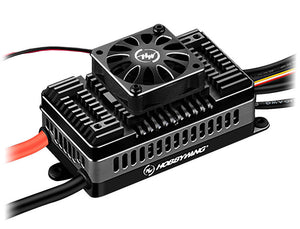

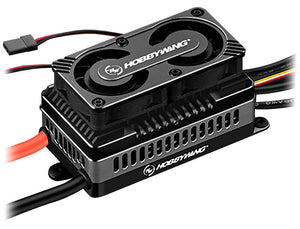

HOBBYWING PLATINUM 260A HV OPTO V5 BRUSHLESS ESC

Description

Features

• Efficient cooling through a sophisticated heat dissipation system with windows
• Supports multiple data protocols e.g. Mikado VBar System, Futaba S.BUS2, MSH Brain, and iKON
• Includes data recording accessible via the OTA module on the smartphone
• Multiple protection features
• 16 adjustable parameters, including 4 flight modes :-
  - Fixed Wing
  - Helicopter - External Governor
  - Helicopter - Express Governor
  - Helicopter - Store Governor

Specifications

Type: Brushless High Voltage
Current cont./peak: 260A/400A
Cells: 6-14S LiPo
BEC: None
Cable Battery/Motor: 1x 8AWG (red, black), 3x 10AWG (black)
Programming: LCD Programming Box, OTA Bluetooth Programmer, Separate Programming Port
Firmware upgrade: Yes
Telemetry: Mikado VBar, Futaba S.Bus2, MSH iKon, Brain and etc.
Dimensions: 89x50x34mm
Weight (incl. cable): 287g
Application: 700-800 Electric Helicopter (main rotor length: 690-880mm)
