Description
Specifications

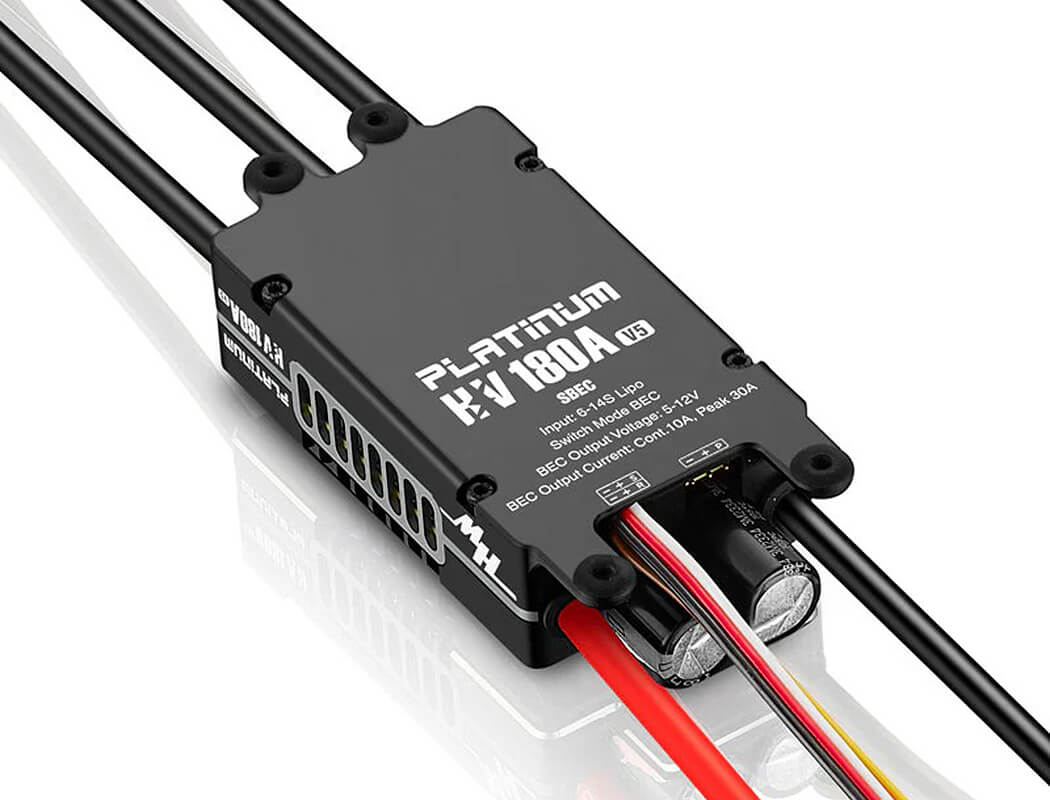

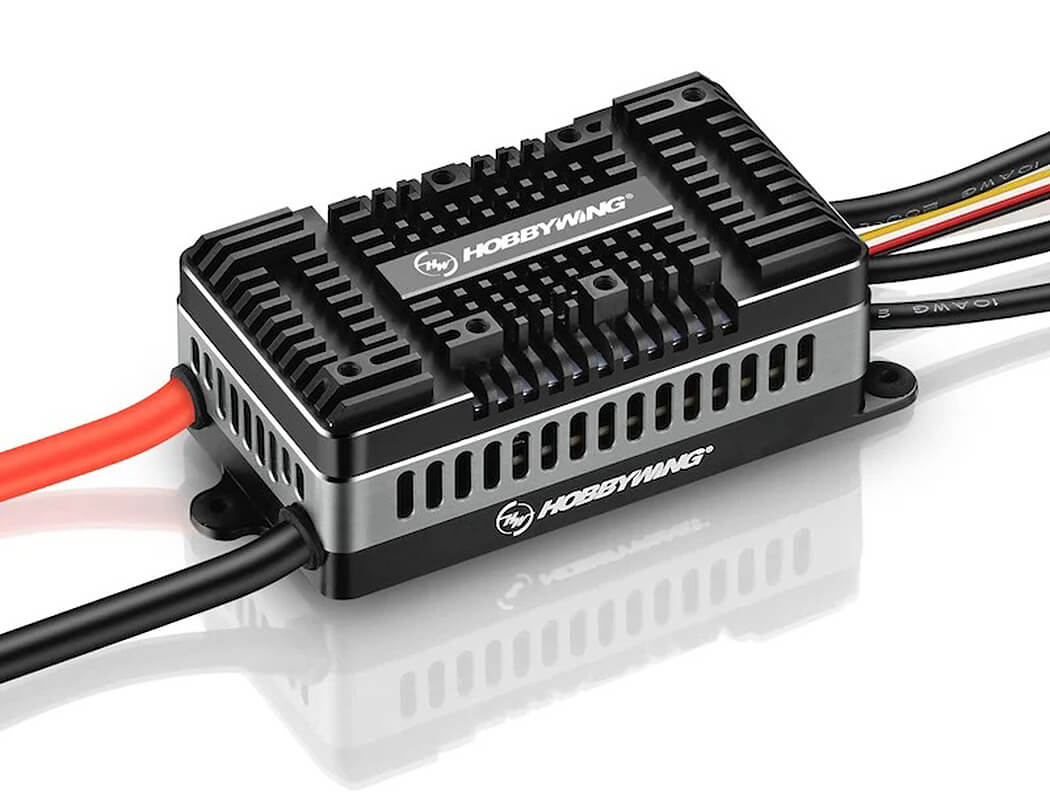

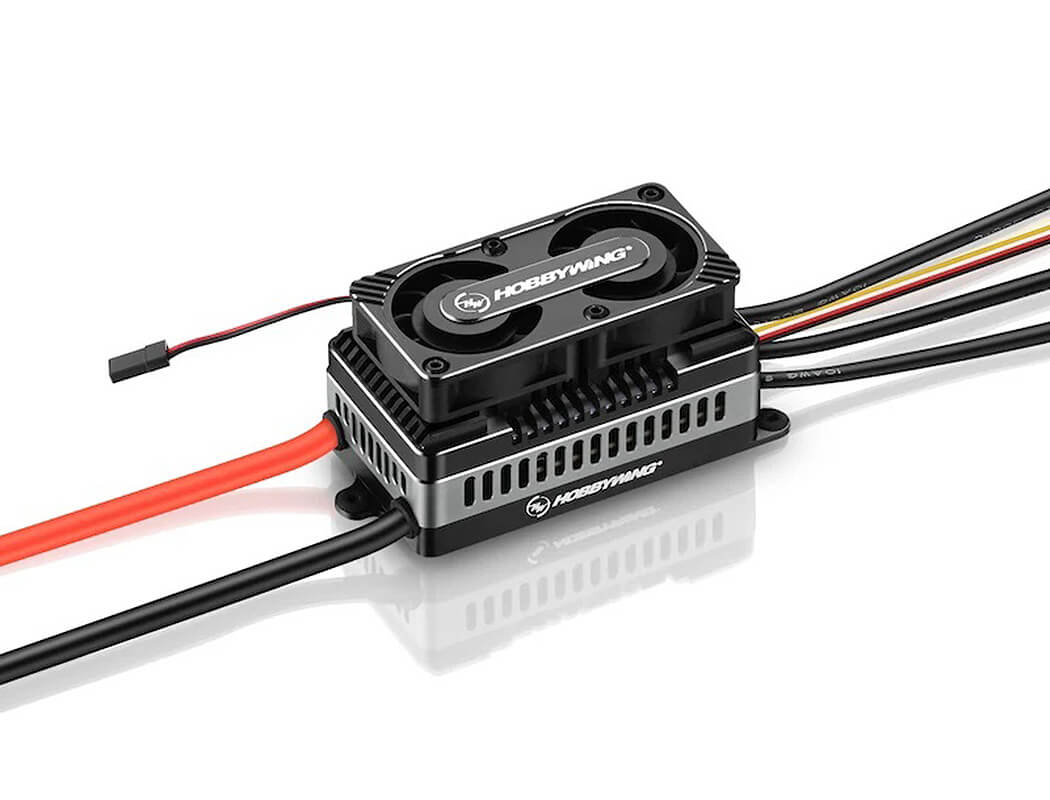

Model: 180A HV
Application: 550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing
Input (V) Lipo: 6-14S
Cont./Peak Current (10s): 180A/260A
BEC (Switch Mode): 5-12V adjustable (step: 0.1V) 10A/30A Cont./Peak
Separate Programming Port: Tunalyser / LCD Program Box / OTA Programmer
Input Wires: Red-10AWG-150mm / Black-10AWG-150mm
Output Wires: Black-10AWG-100mm
Output Connector: Gold connector
Mounting-Holes: M3, 16.5* 90x34mm
Size: 100.6 x 45.5 x 26.1 mm
Weight: 250.6g (Without Fan)
Product information
- Brand
- HobbyWing
- Product type
- Aircraft Speed Controllers
- SKU / part number
- HW30209103
- Availability
- In stock
- Regulärer Preis
- £369.99
- Aktueller Preis
- £332.99
- Regulärer Preis
- £369.99
- Aktueller Preis
- £332.99
Delivery information
Delivery information
Delivery options and costs are shown at checkout. Contact us before ordering if you need an item urgently.
Returns & exchanges
Returns & exchanges
Changed your mind or ordered the wrong part? Contact our team and we will help with the next step.
Need compatibility help?
Need compatibility help?
Send us your model and part number before ordering if you are unsure. We would rather help you get the correct item first time.
Description
Specifications
Model: 180A HV
Application: 550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing
Input (V) Lipo: 6-14S
Cont./Peak Current (10s): 180A/260A
BEC (Switch Mode): 5-12V adjustable (step: 0.1V) 10A/30A Cont./Peak
Separate Programming Port: Tunalyser / LCD Program Box / OTA Programmer
Input Wires: Red-10AWG-150mm / Black-10AWG-150mm
Output Wires: Black-10AWG-100mm
Output Connector: Gold connector
Mounting-Holes: M3, 16.5* 90x34mm
Size: 100.6 x 45.5 x 26.1 mm
Weight: 250.6g (Without Fan)
Product information
- Brand
- HobbyWing
- Product type
- Aircraft Speed Controllers
- SKU / part number
- HW30209103
- Availability
- In stock
-
