Description

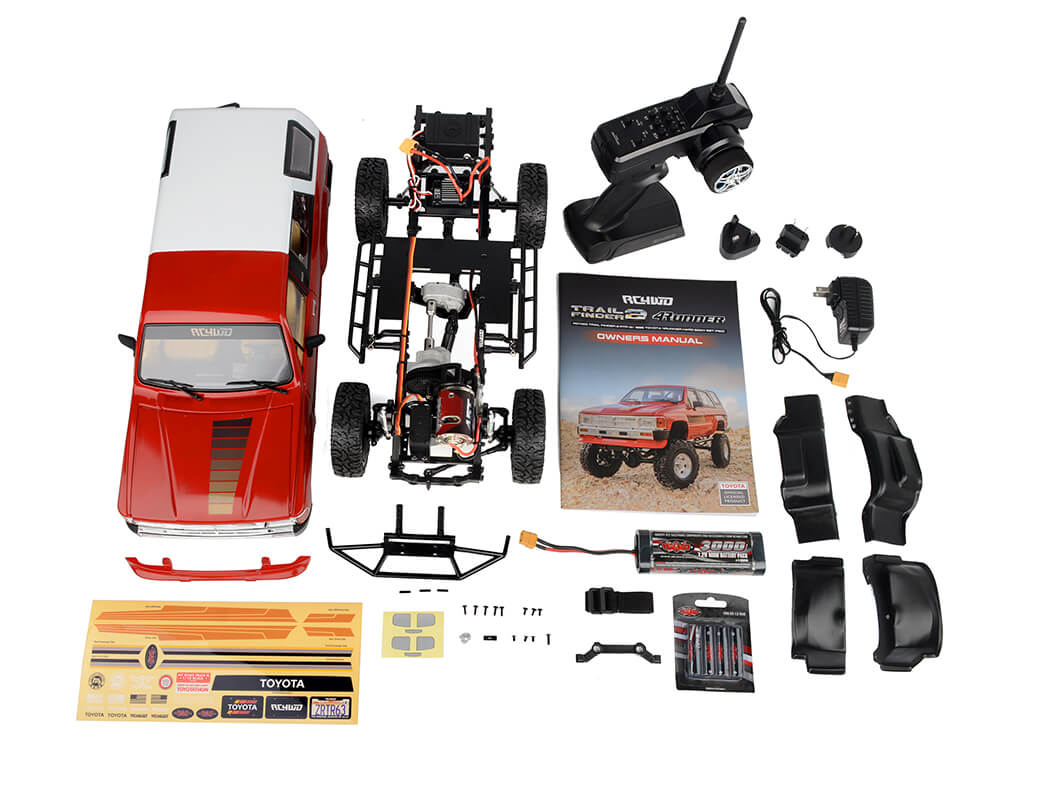

Features

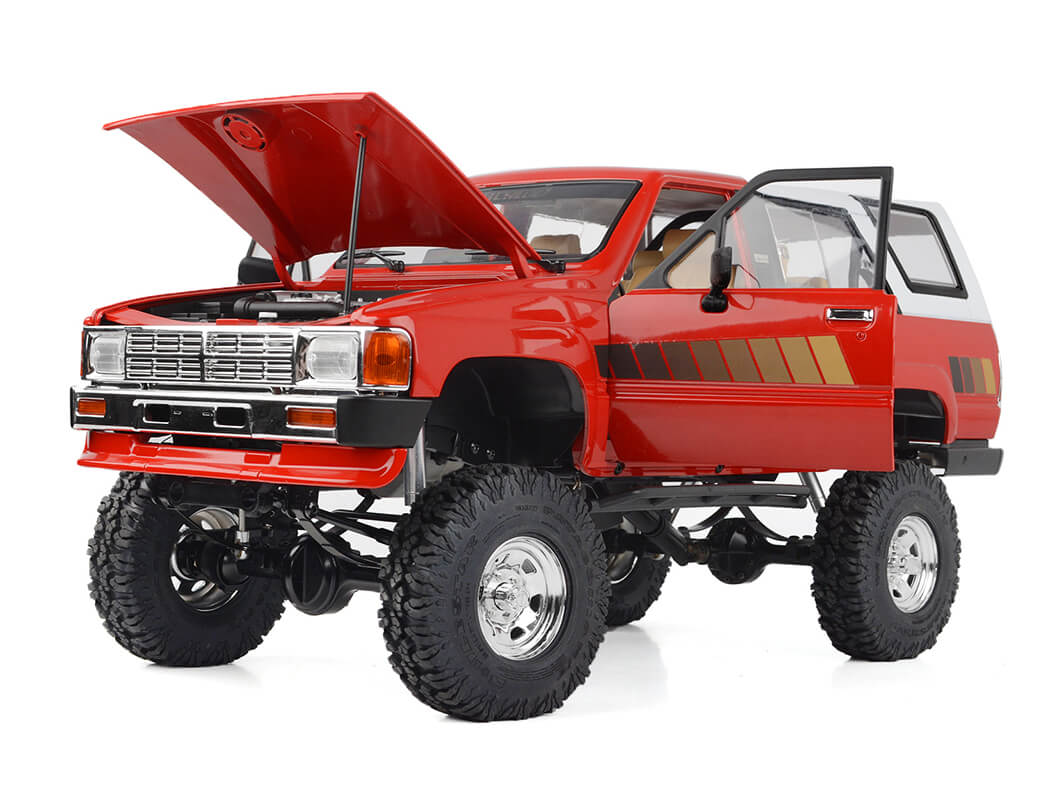

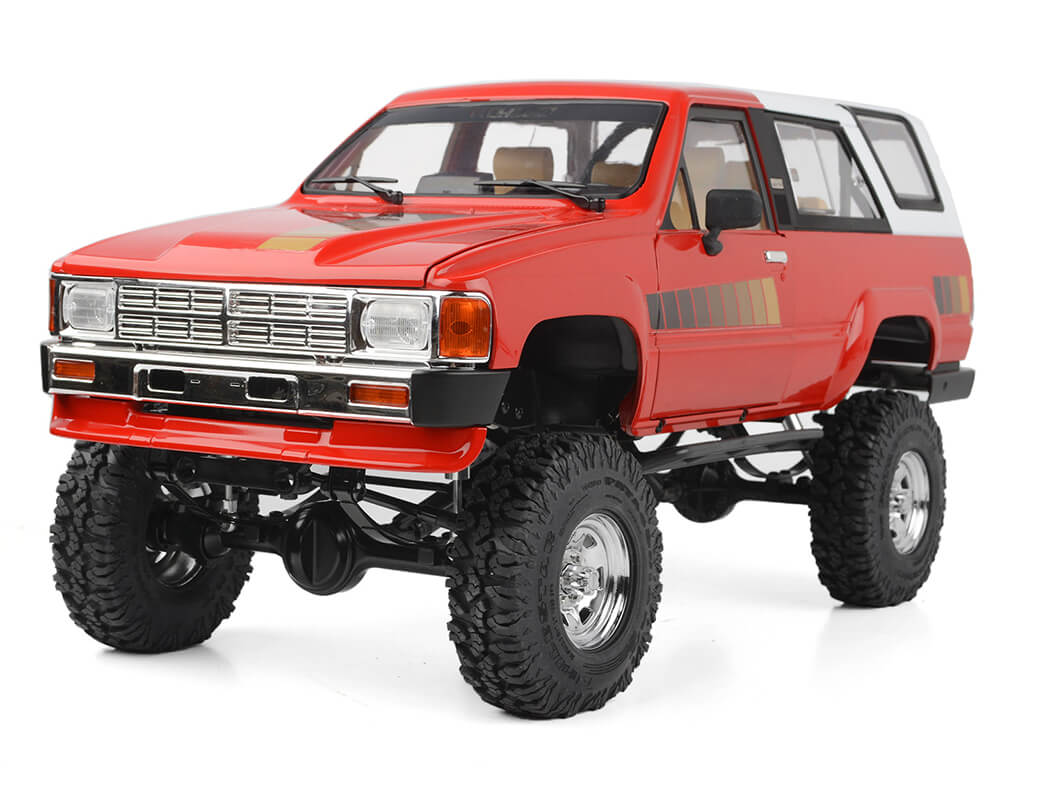

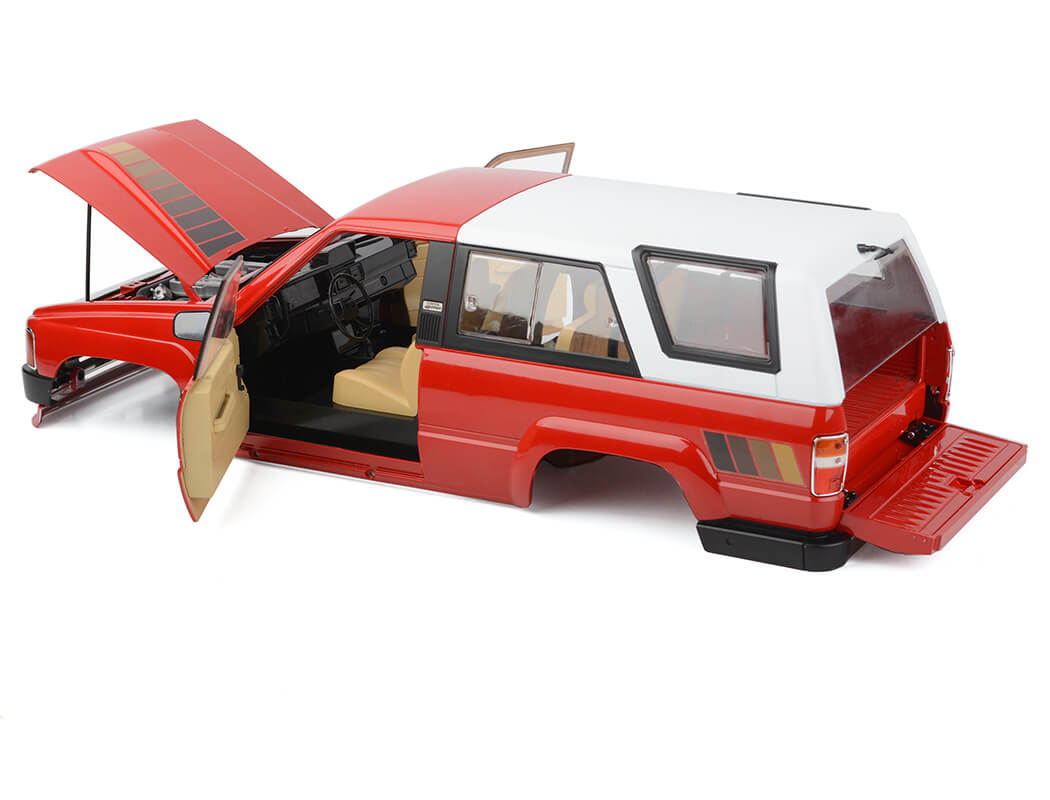

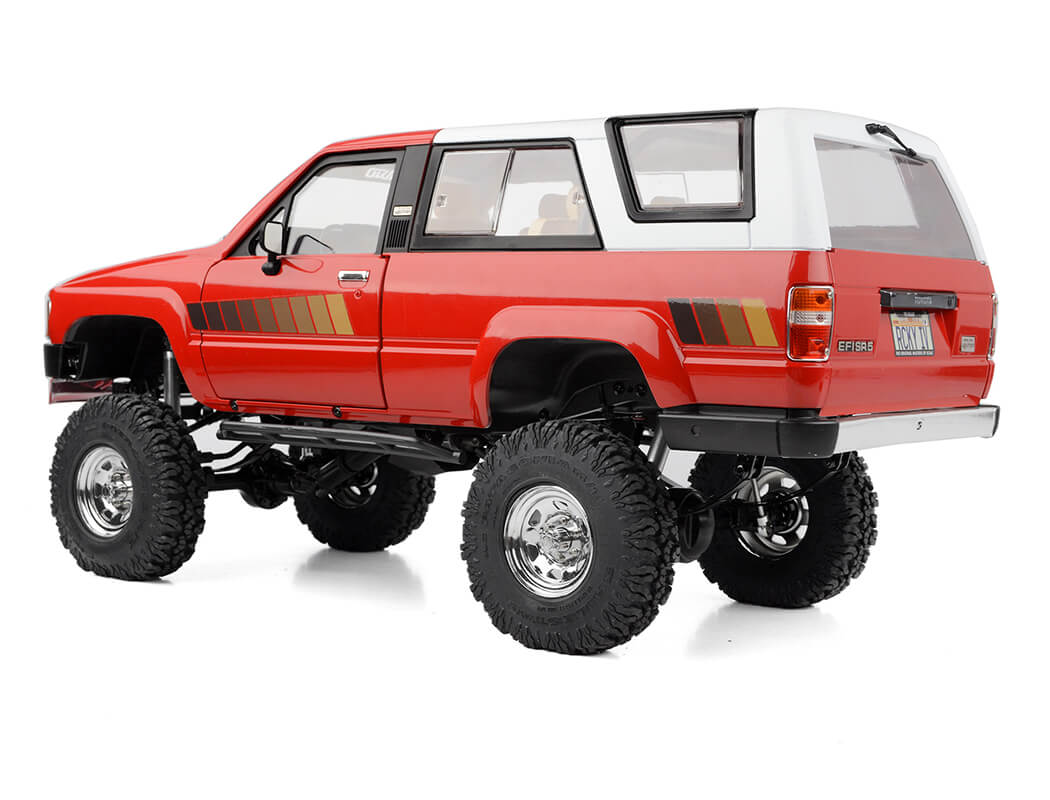

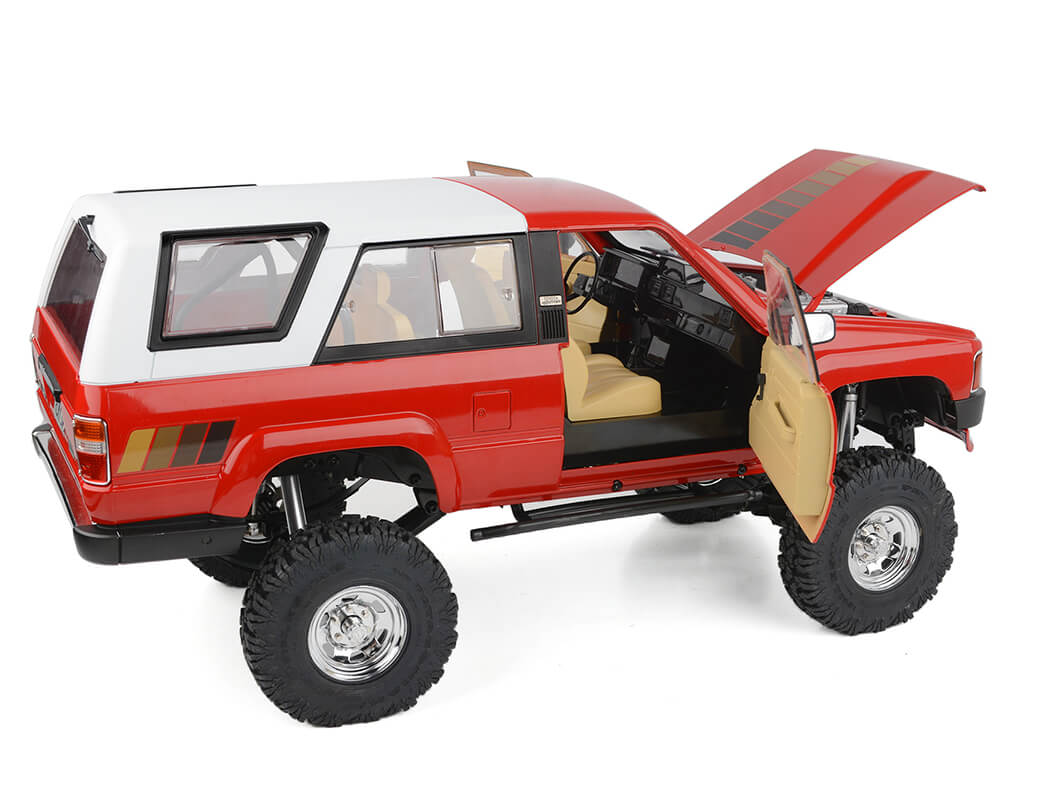

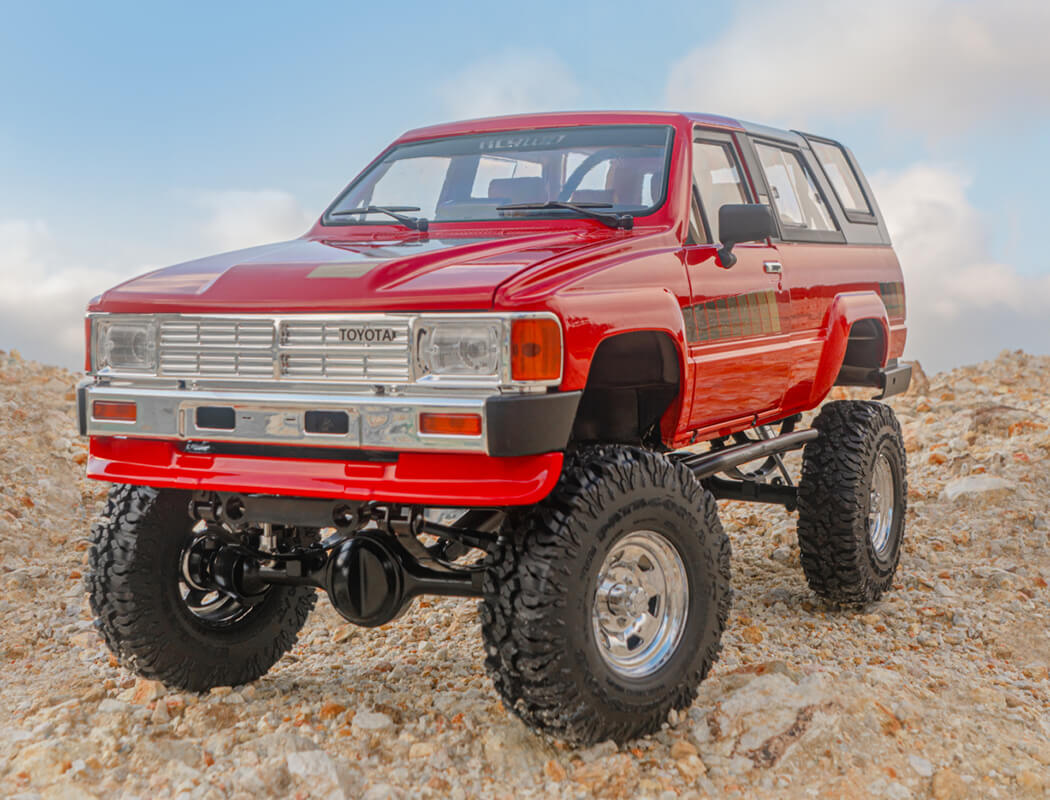

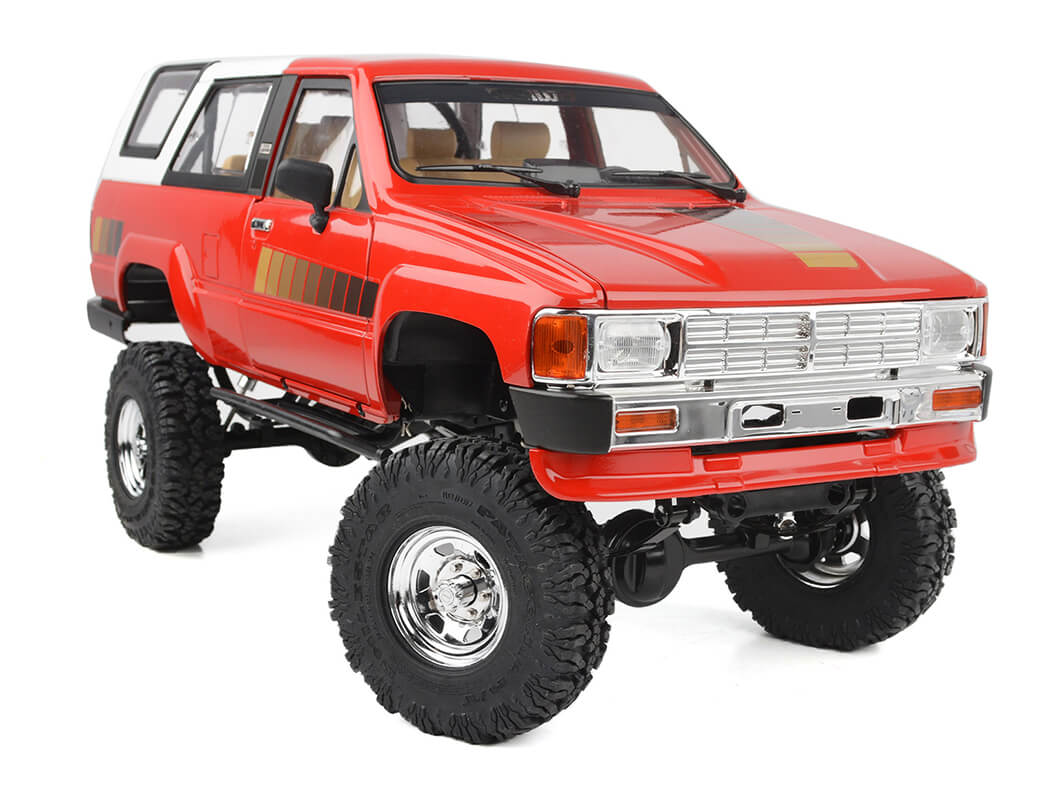

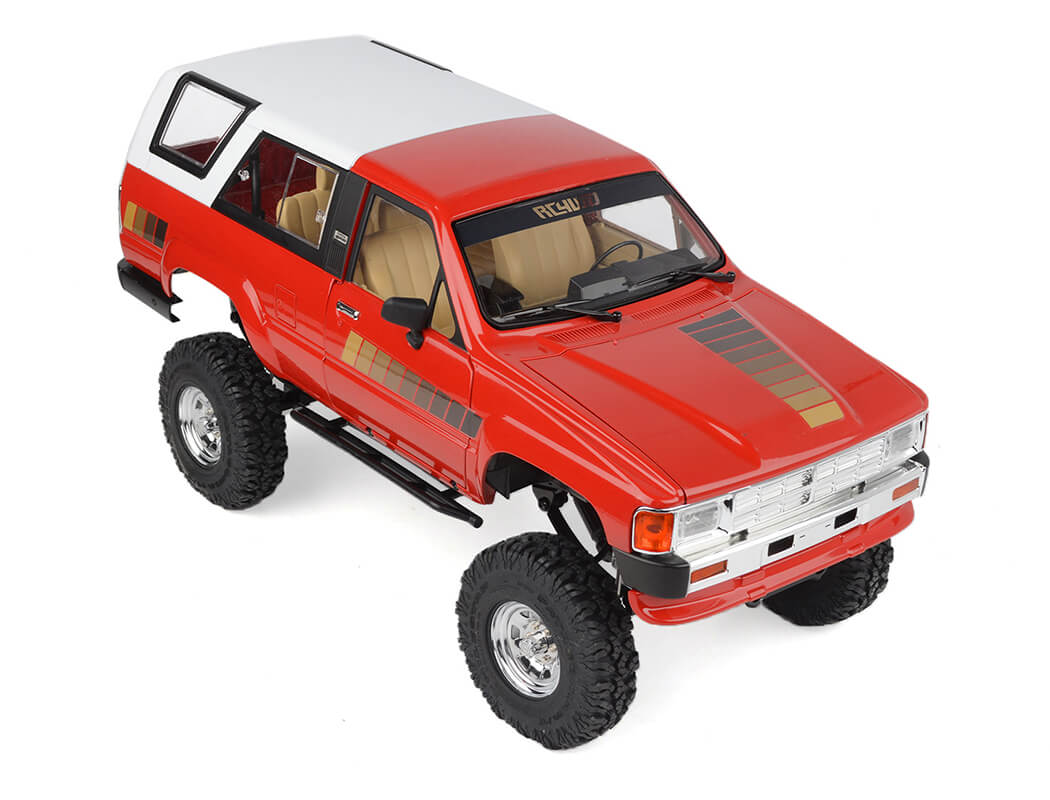

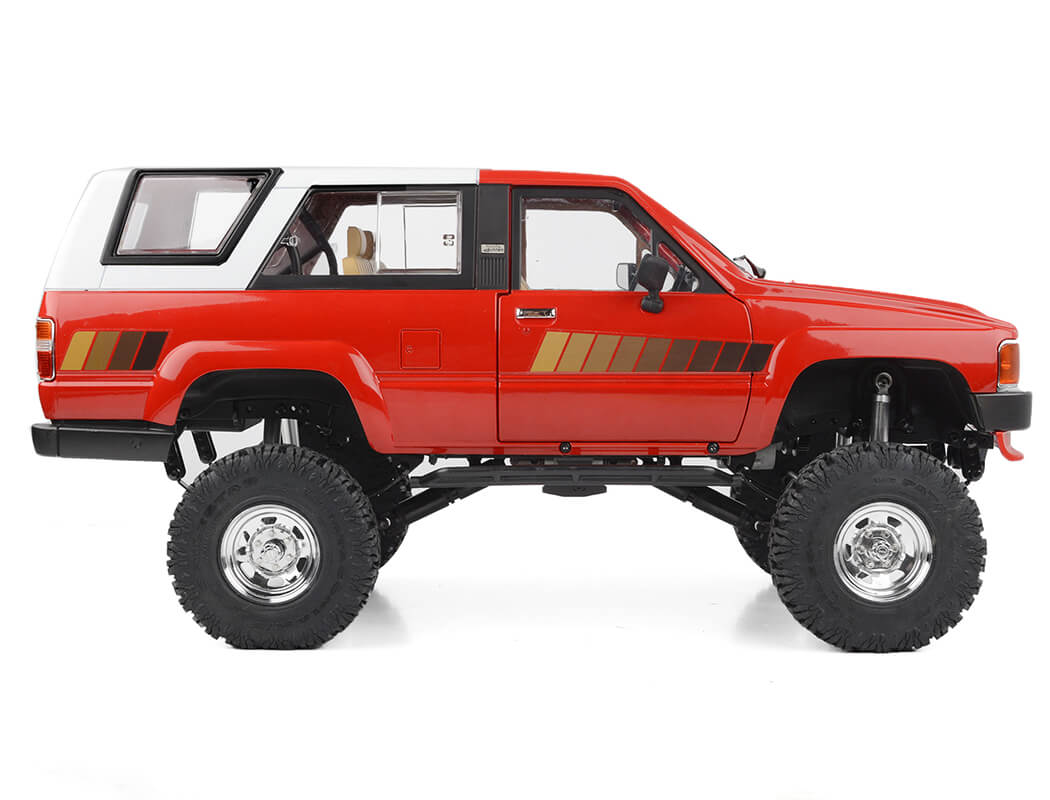

• 1/10 1985 Toyota 4runner Hard Body Complete Set in Red

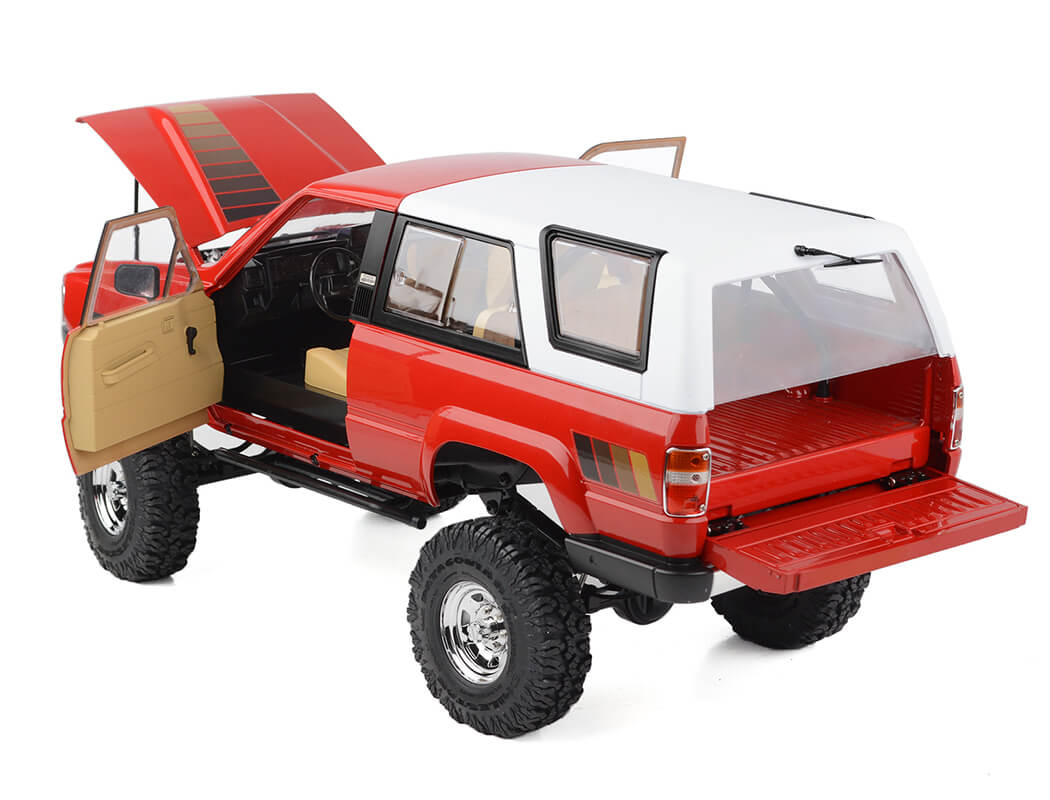

• Pre-painted White Topper
• Pre-installed Led Light Set

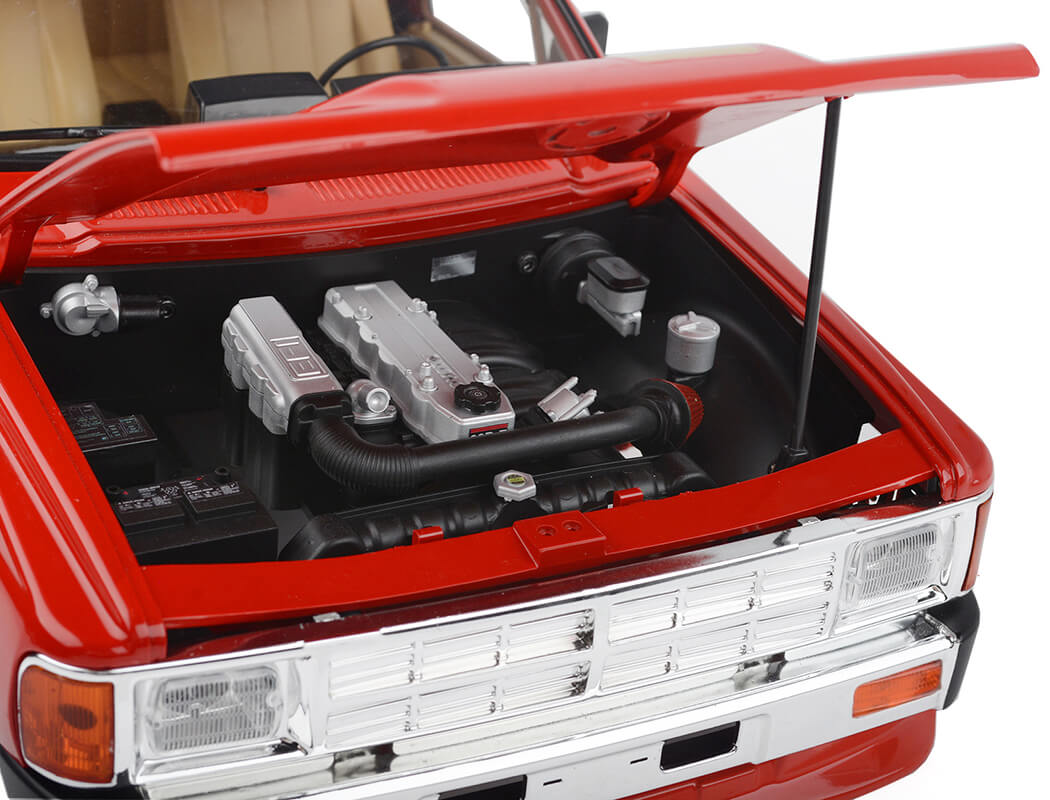

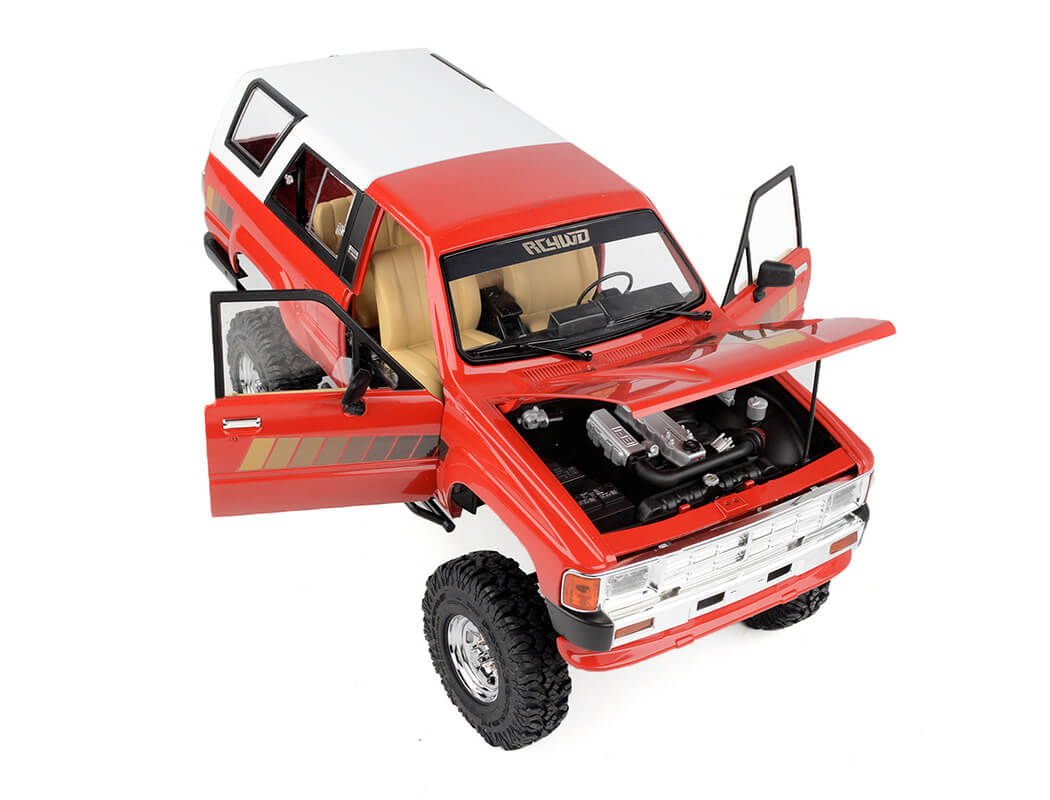

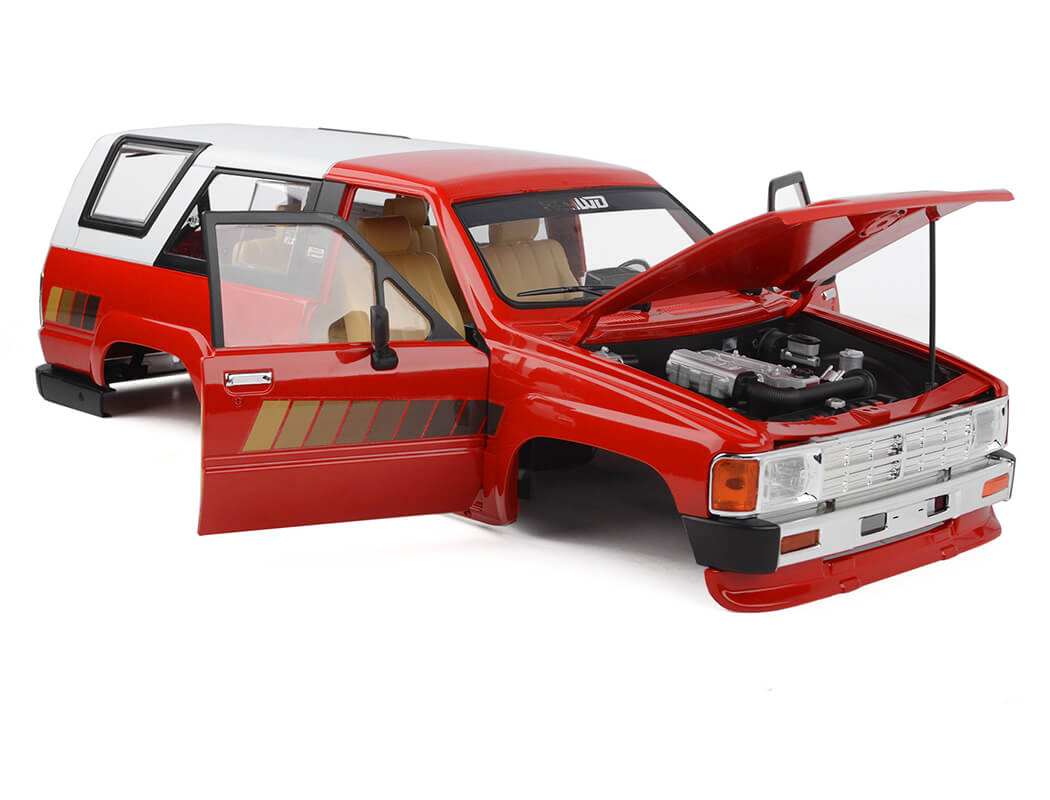

• Fully Detailed Yota 22RE Engine Bay
• Stamped Steel 1.7"" Beadlock SR5 Wheels (Chrome)
• RC4WD Milestar Patagonia M/T 1.7"" Scale Tires
• Yota II Ultimate Scale Cast Axles (XVD)
• RC4WD Ultimate Scale Shocks
• Soft Steel Leaf Springs

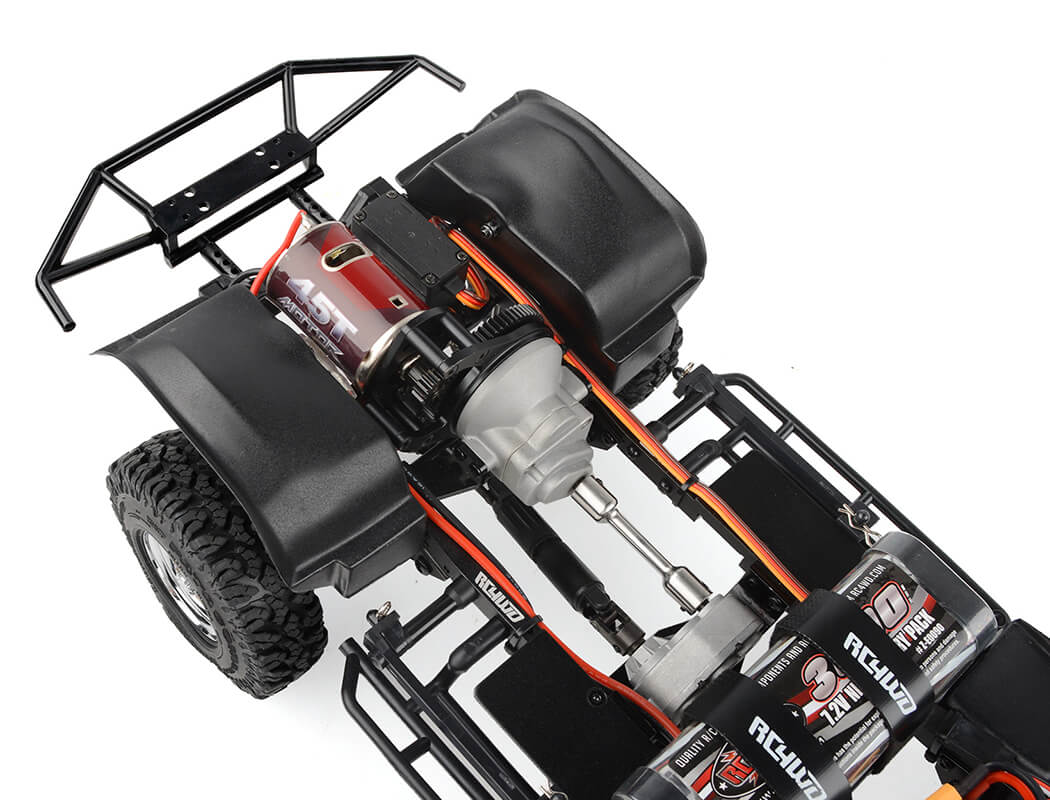

• 540 Crawler Brush Motor 45T
• R3 Single Speed Transmission

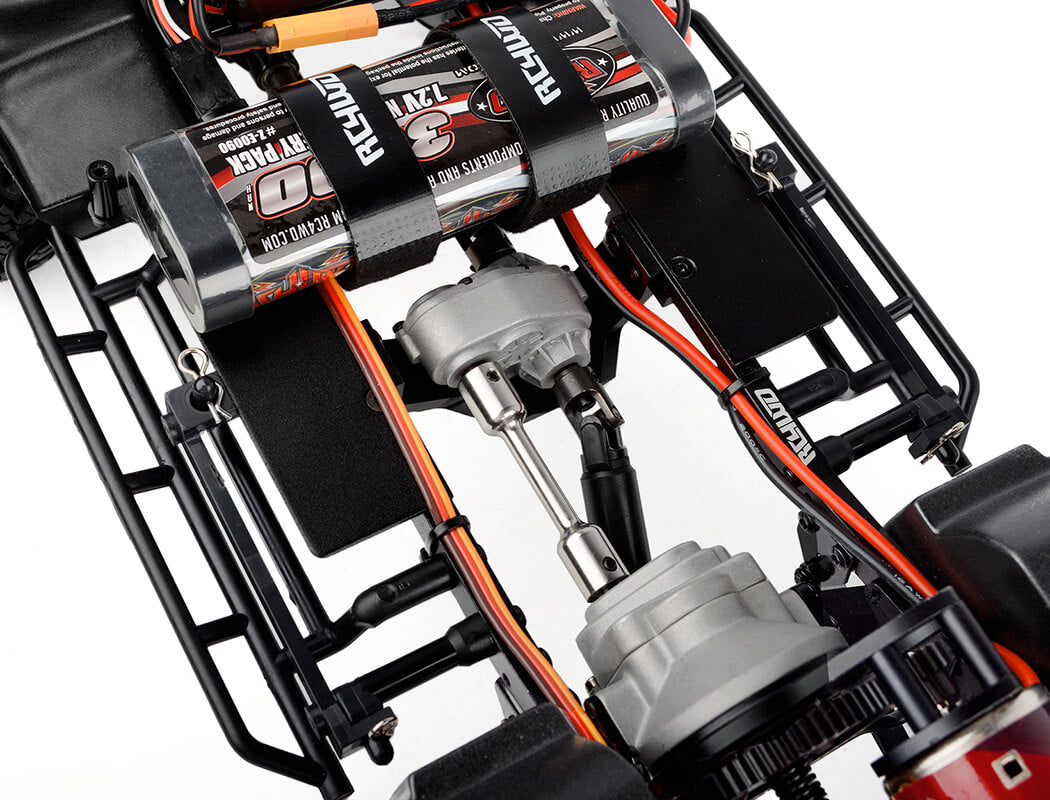

• Center Mounted Hammer Transfer Case
• Twister High Torque Metal Gear Digital Servo
• Outcry III Waterproof ESC
• 6-Cell 3000mAh NIMH W/ XT60 Plug
• RC4WD Marlin Crawler Side Plastic Sliders
• Front & Rear Inner Fender Set
• XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio
• Universal NIMH Peak Battery Charger
• Uninstalled Plastic Front Winch Bumper

Specifications

Hammer Transfer Case
Ratio: 1.47: 1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1 Internal
Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Features: Metal Billet Aluminum Casing, Scale Looking, Motor Mount can be Rotated to 10 different Positions, Compatible with other Brand Spurs (Axial, Traxxas, Robinson)

Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

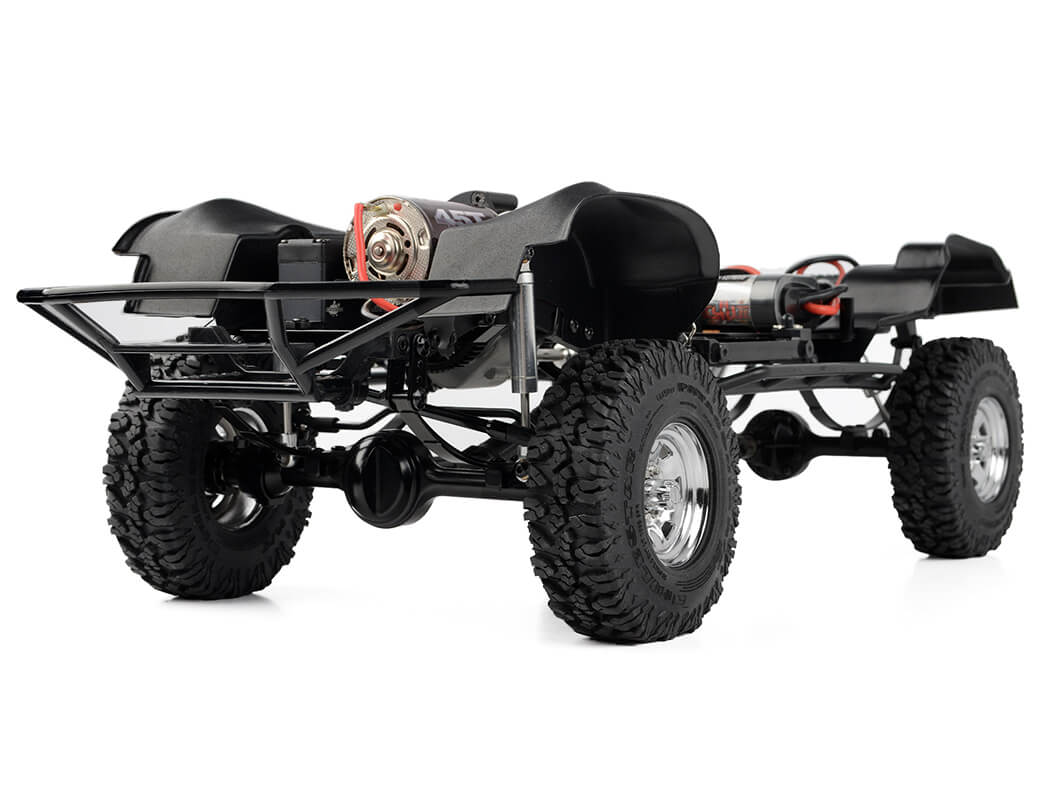

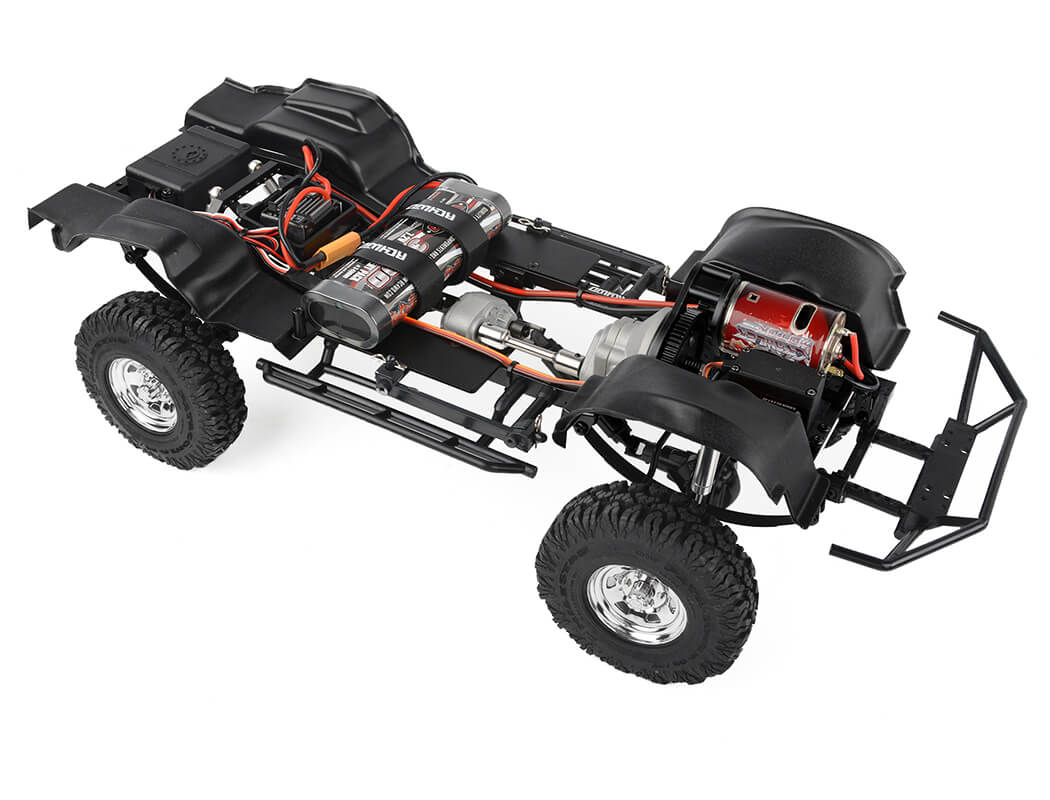

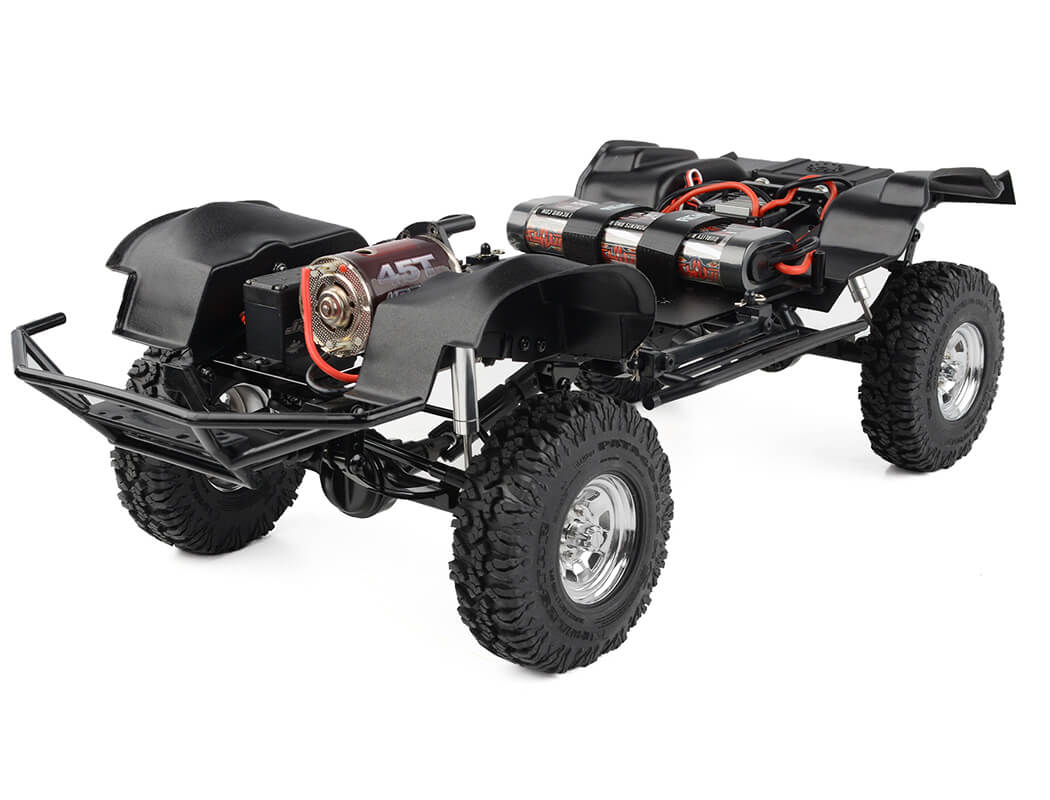

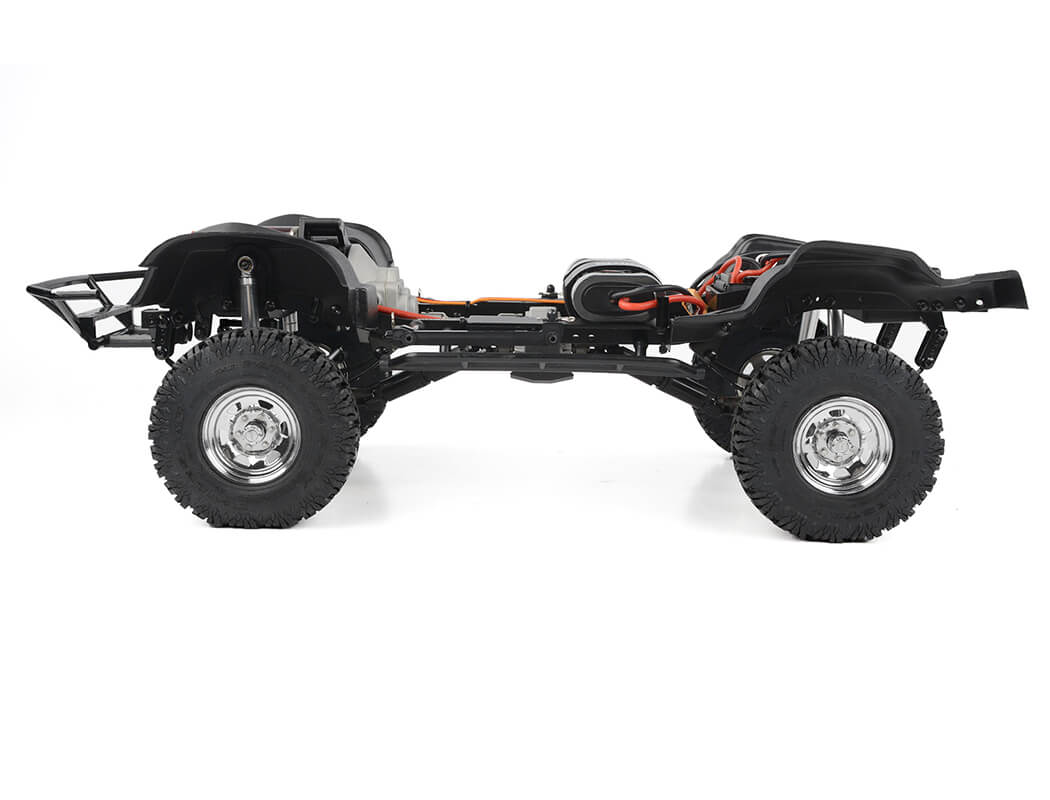

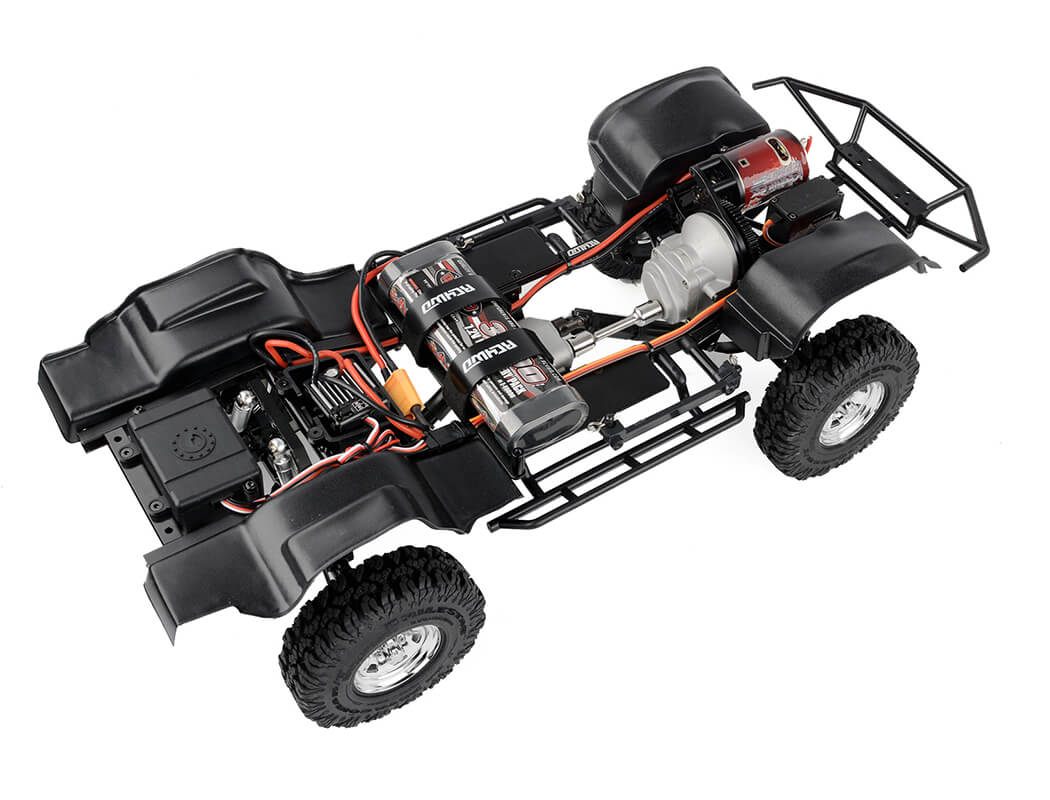

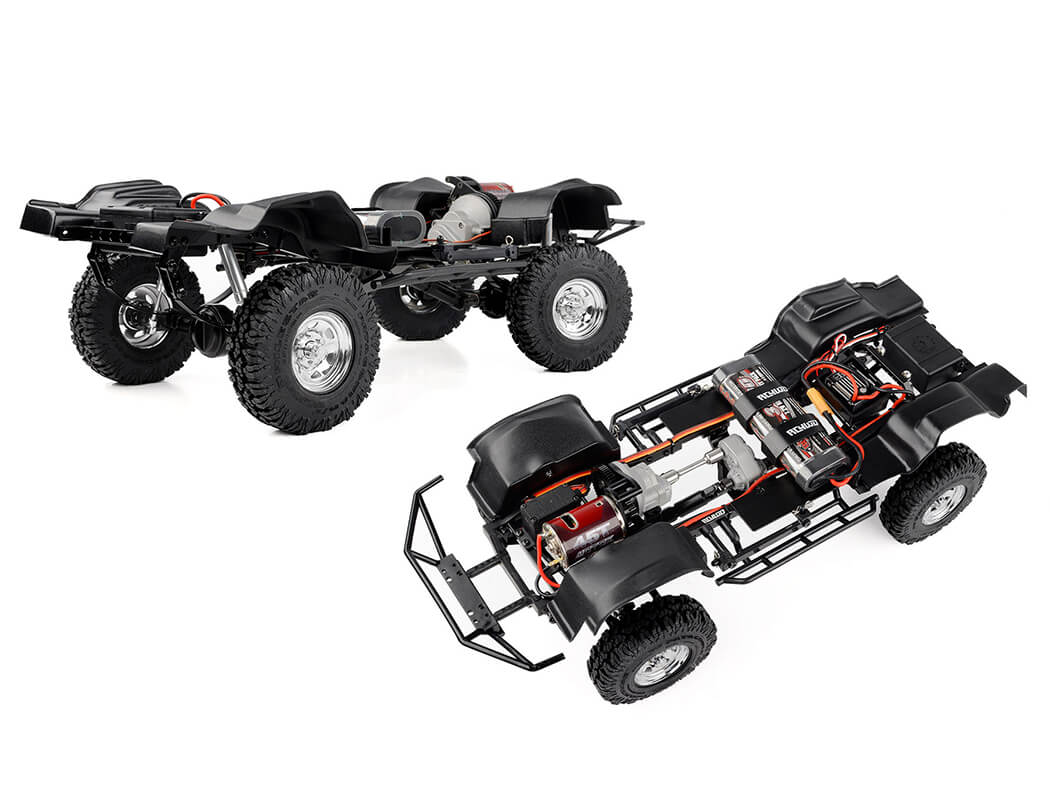

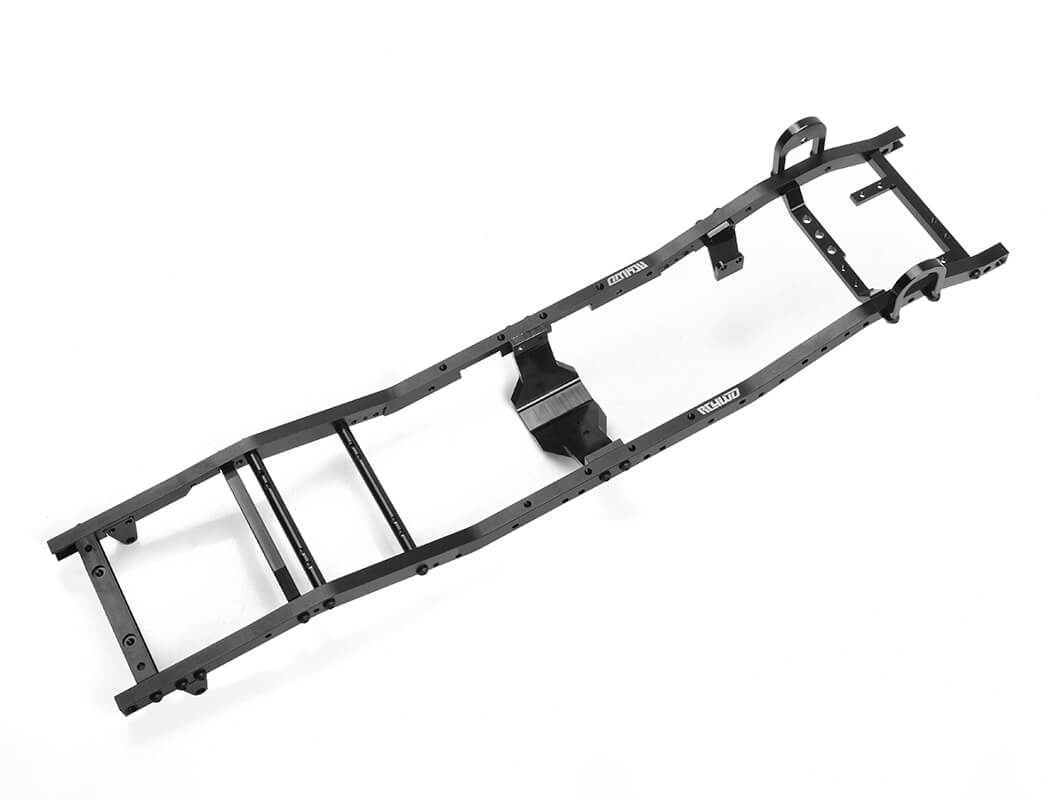

Trail Finder 2 Chassis Features
Features: Billet Aluminum Constriction, Adjustable Shock Hoops

Drive Shafts
RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02"" - 4.33"") 5mm Hole

Wheels
Type: Stamped Steel 1.7"" Beadlock SR5 Wheels (Chrome)
Hub: 12mm Hex
Width: 22.0mm (0.87"")
OD: 47.0mm (1.85"")

Bumpers
Marlin Crawler Front Plastic Tube Bumper
Marlin Crawler Side Plastic Sliders
Authentic Looking Crawler Style Bumper, High Quality Flexible Plastic, Extremely Durable

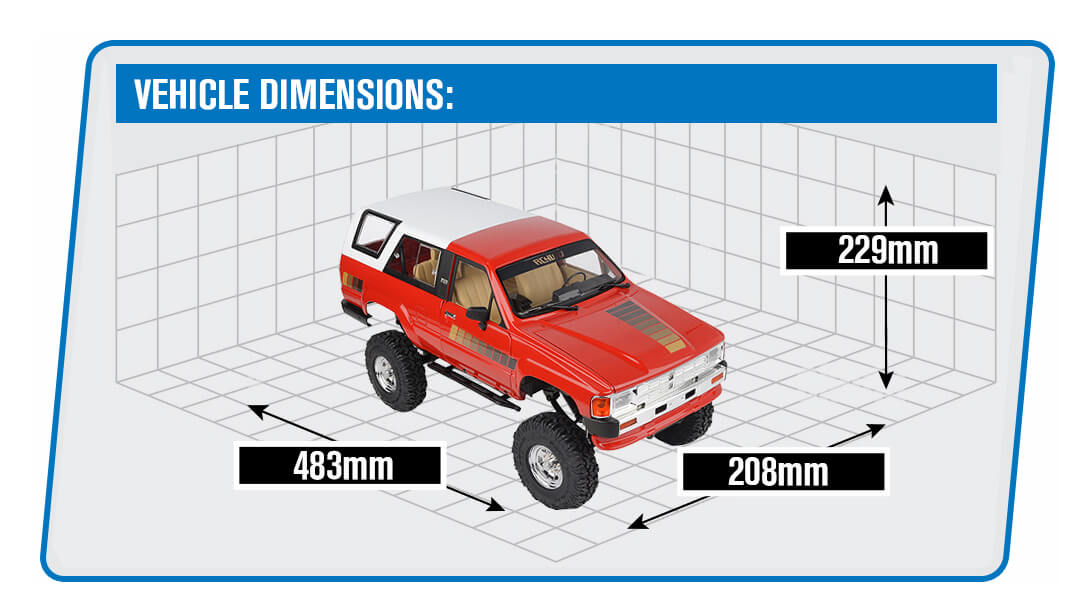

TF2 Truck Dimensions
Wheelbase: 287.2mm (11.3"")
Width: 207.9mm (8.18"")
Height: 228.8mm (9.0"")
Ground Clearance: 61.3mm (2.41"")
Final Drive Ratio: 31.93:1
