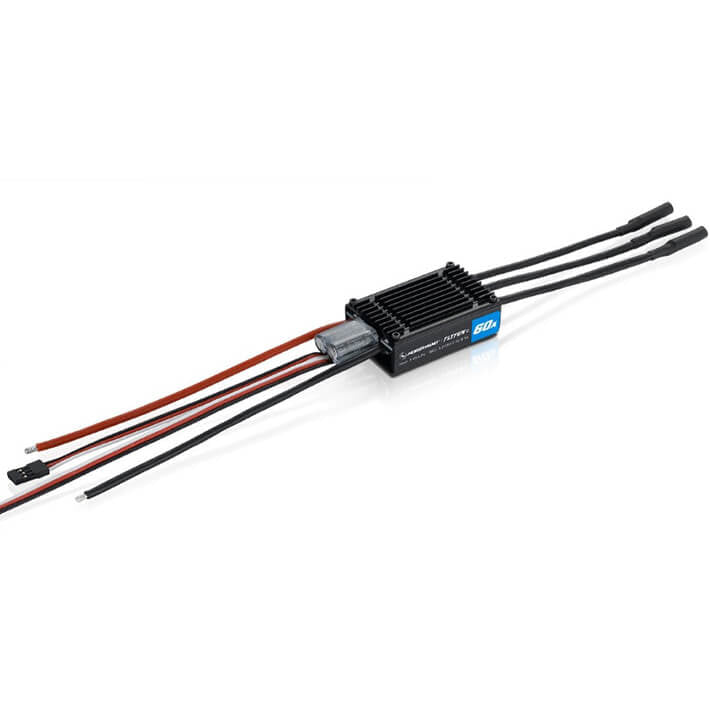

HOBBYWING FLYFUN 60A 6S V5 SPEED CONTROL

Features

• ESC programmable through Transmitter and LED program card (purchase separately)
• DEO Technology / Active Freewheeling
  The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:
  - Rapider and smoother throttle response, better stability and flexibility during flight.
  - Higher driving efficiency, longer flight time.
  - Lower ESC temperature, more reliable operation.
• Soft Start-ups & Reverse Brake
• High-power BEC: High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V & 7.4V allows users to have more electronic devices or devices with higher power like servo, flight controller, and on-board light on their aircraft.
• Multiple Protections: Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.

Specifications

Cont./Peak Current: 60A/80A
Input:3-6S LiPo
BEC: Switch Mode: 5.2V/6V/7.4V, 8A/20A
Input /output wire: 14AWG-150mm
Input connector: NO
Output connector:4.0mm Gold Connectors (Female)
Size (mm): 68.8x34.6x18
Weight (g):73.5
Reverse Brake Mode:Supported
