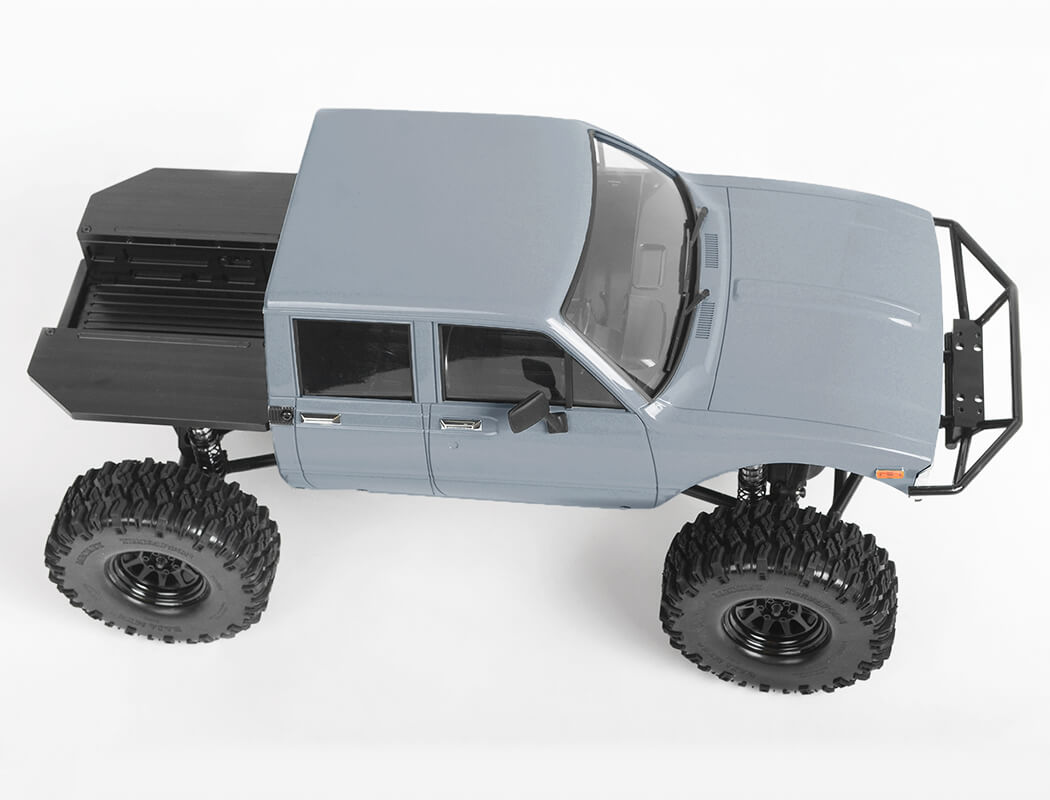

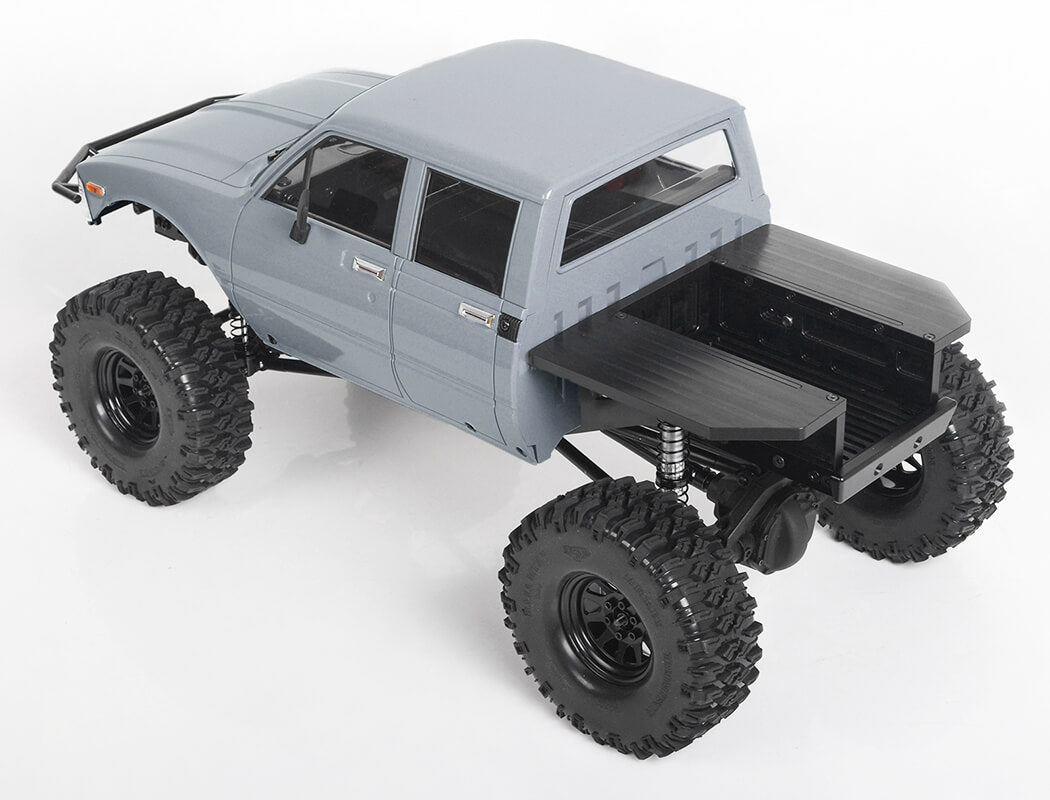

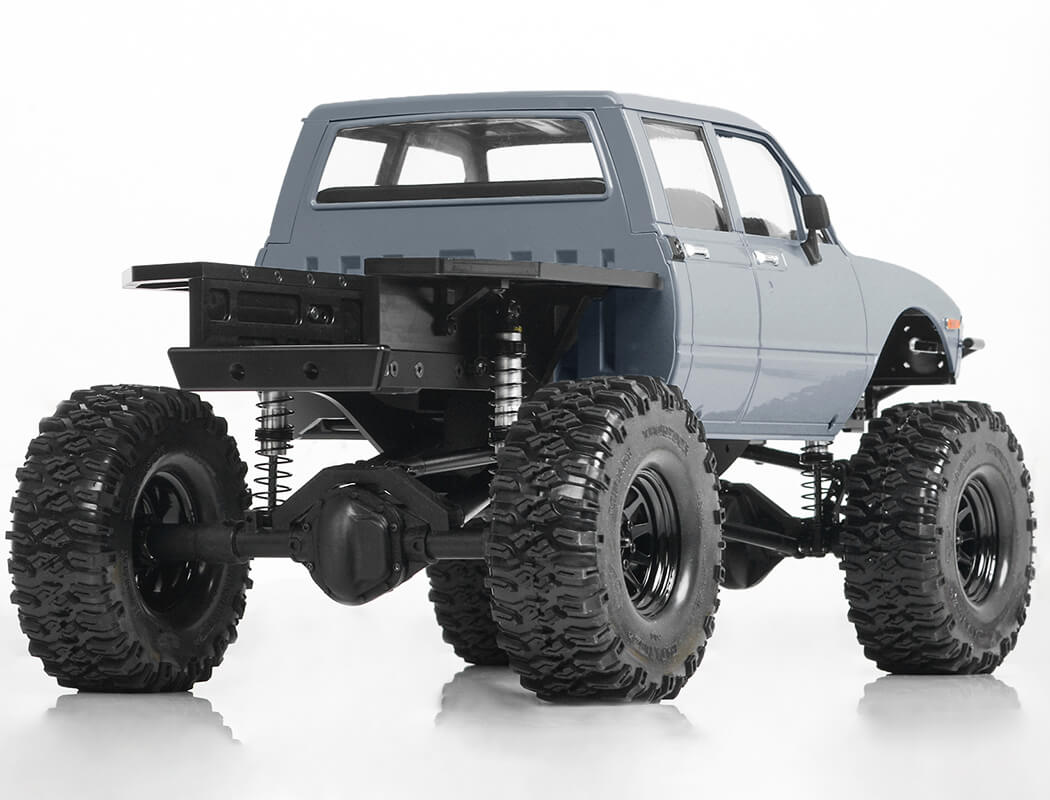

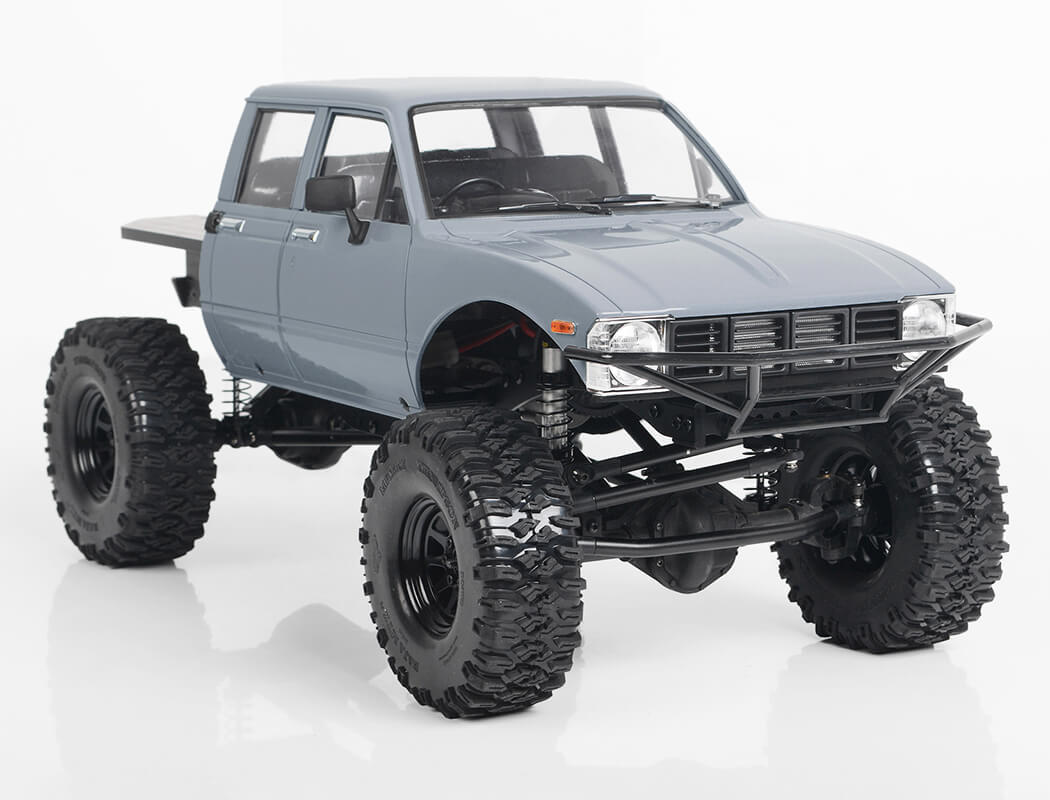

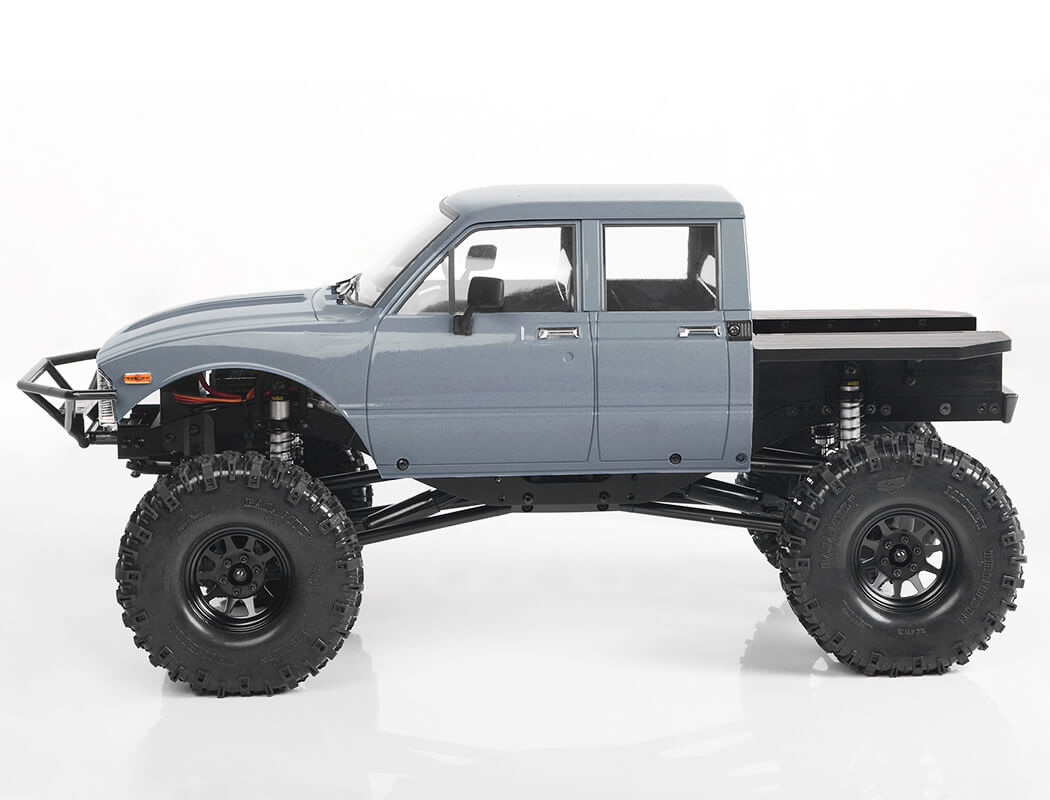

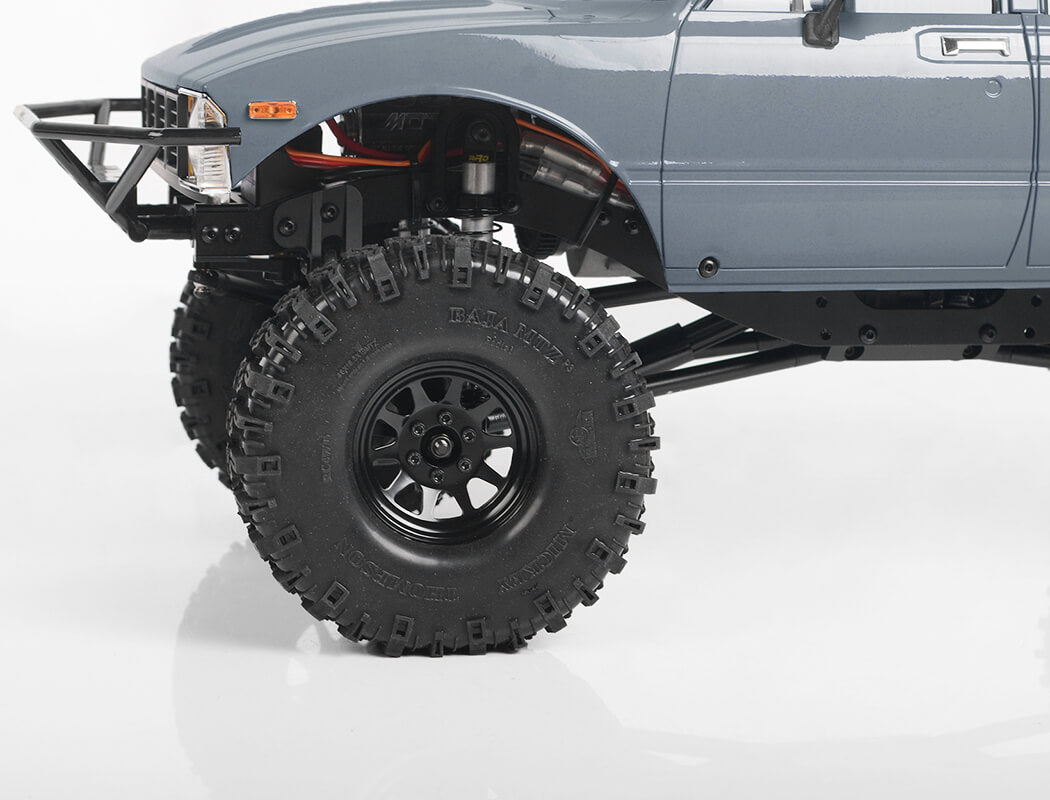

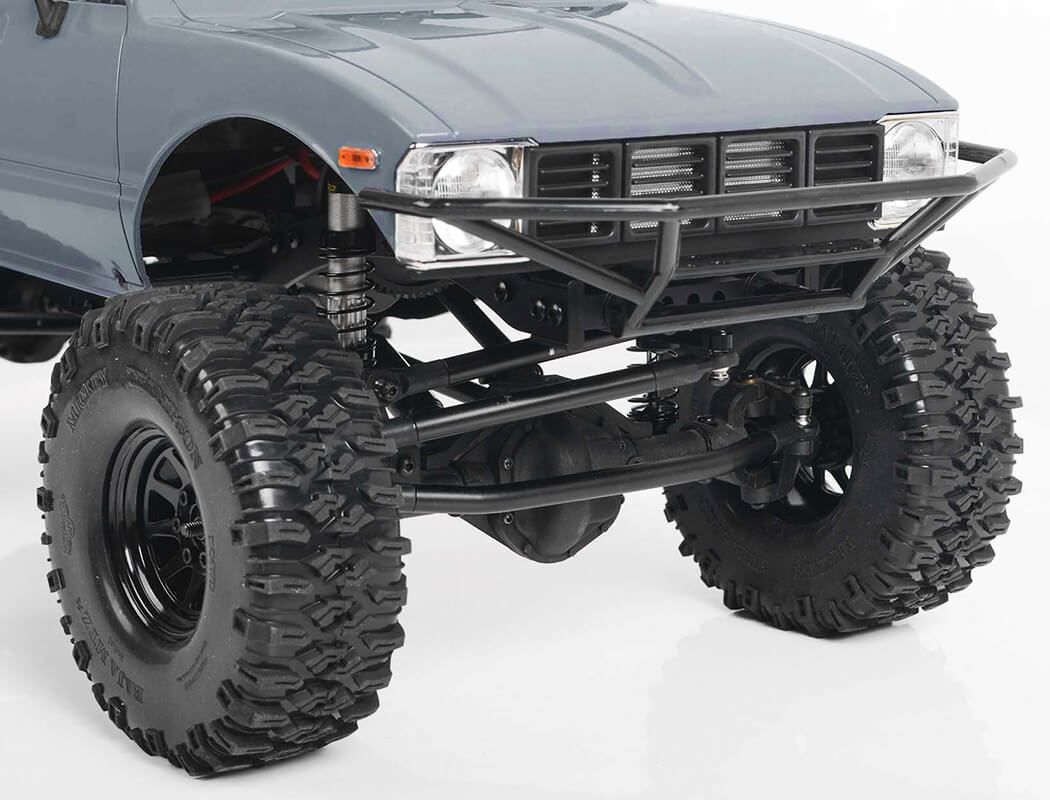

RC4WD C2X CLASS 2 COMPETITION TRUCK W/ MOJAVE II 4 DOOR BODY

Description

Features

• RC4WD D44 Narrow Front And Rear Axles
• Custom Designed For Looks And Performance
• Twister High Torque Metal Gear Digital Servo

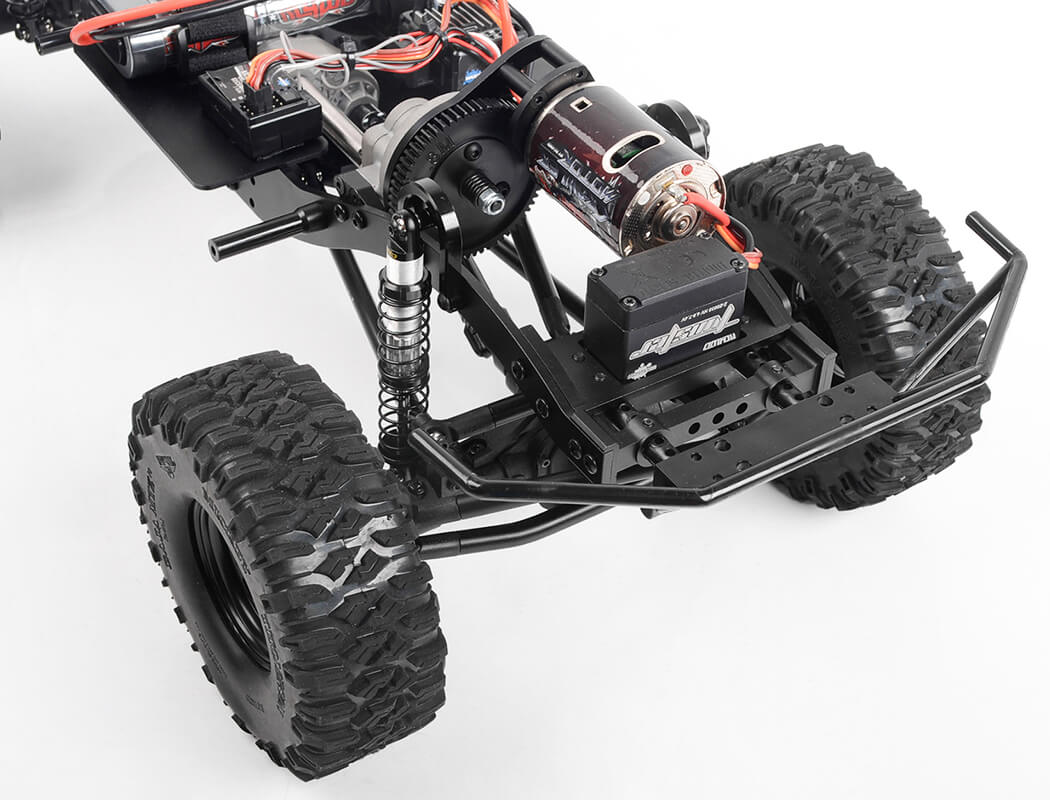

• Chassis Mounted Steering Servo

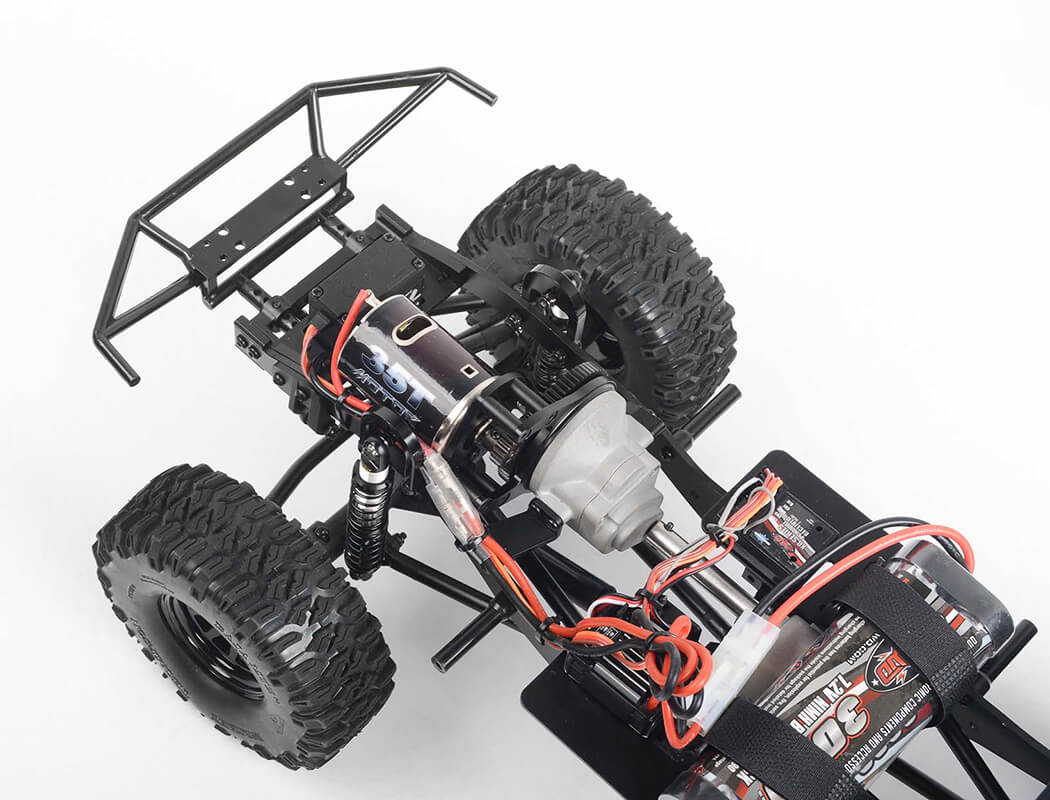

• 540 Crawler Brushed Motor 35T
• Rock Crawler RRD Emulsion Scale Dual Spring Shocks
• Mickey Thompson 1.9" Scale Tyres
• R3 Single Speed Transmission
• CNC Machined And Bent Aluminum Chassis Frame

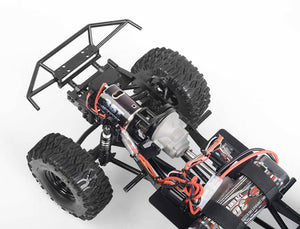

• Center Mounted Realistic 4X4 Transfer Case

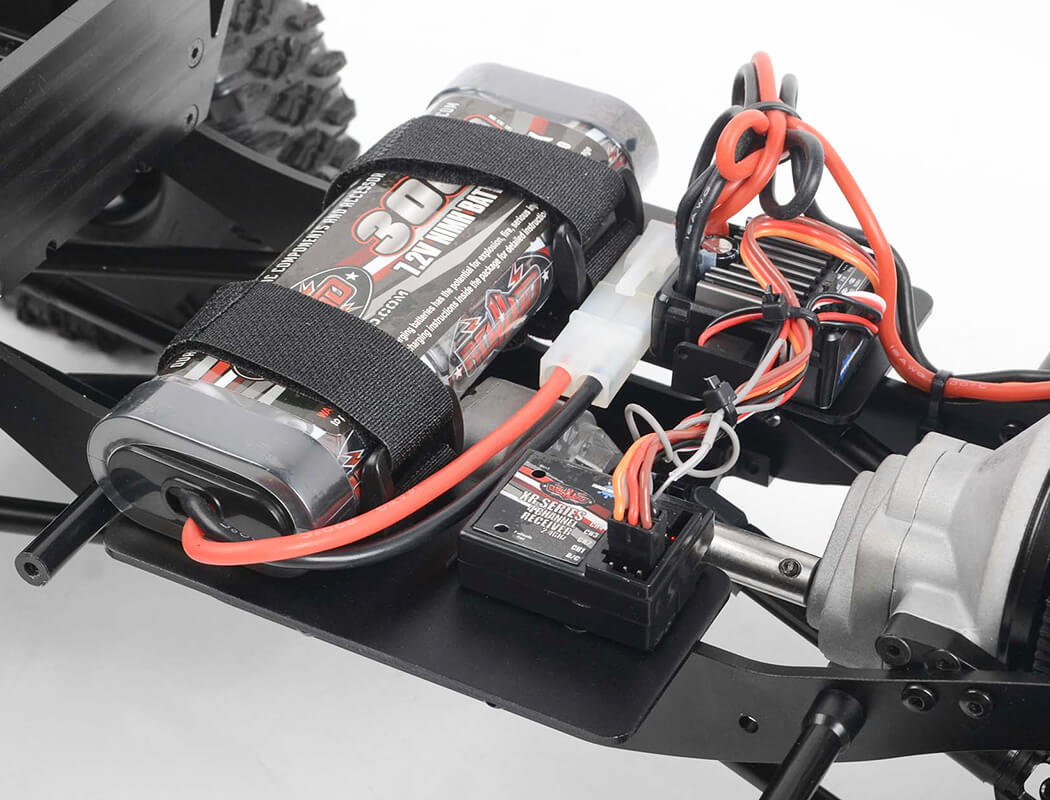

• Outcry III Waterproof ESC
• Scale Off-road Style Custom Delrin Bed
• 4 Link Rear And 3-Link W/ Panhard Bar Front Suspension
• OEM Stamped Steel 1.9" Beadlock Wheels

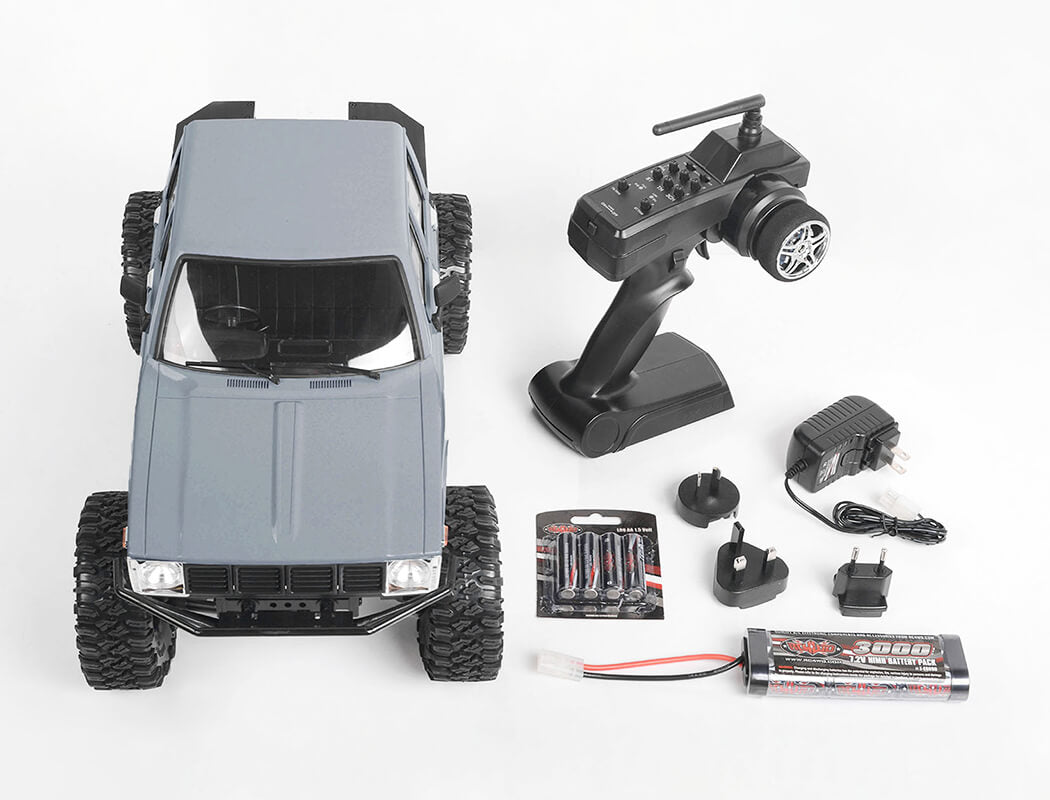

• 6-Cell 3000mAh NIMH Battery Pack
• NIMH Peak Battery Charger

Specifications

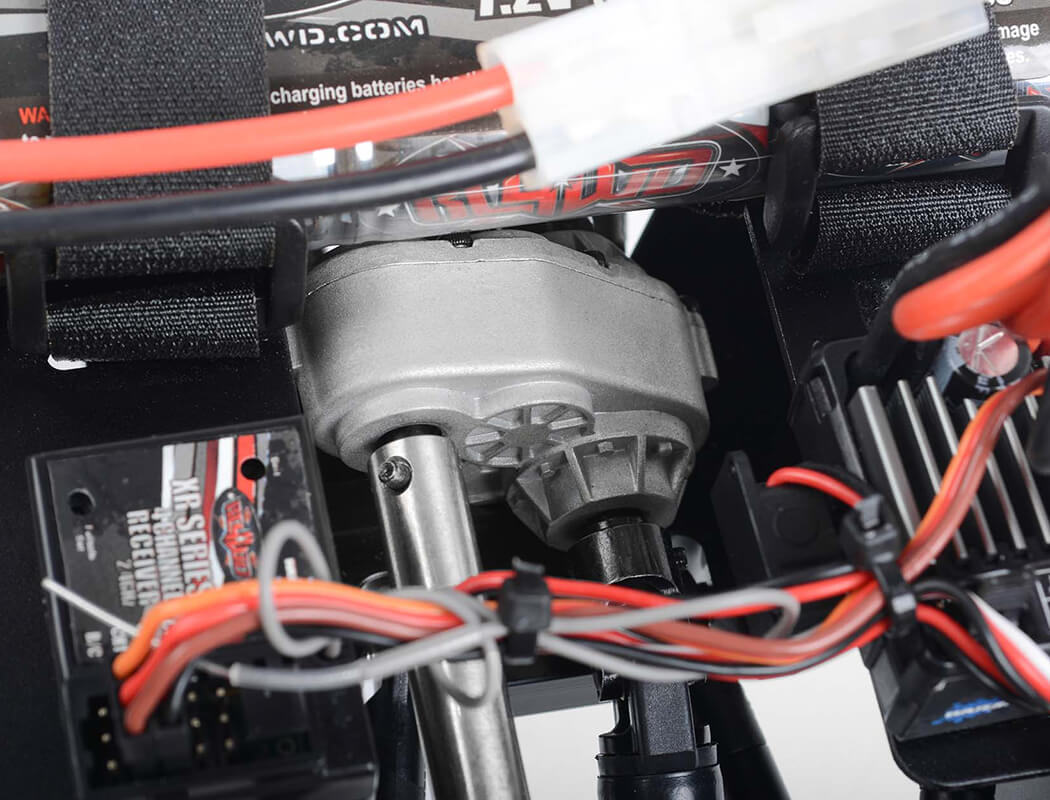

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

D44 Plastic Complete Rear Axle
Ratio: 38/13 = 2.92:1
Width at pin: 182.5mm

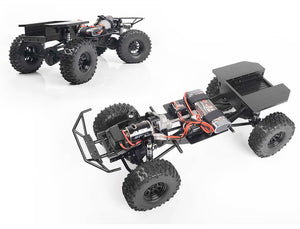

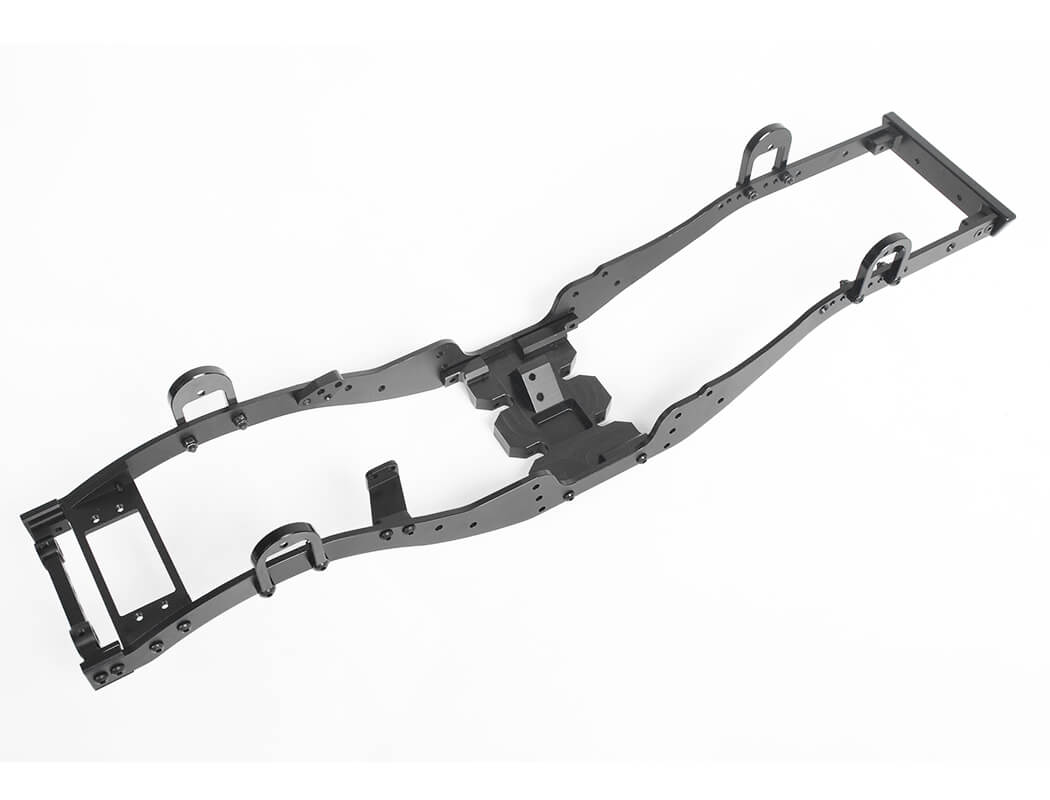

C2X Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Ultra Durable High Quality Steel Yokes

Wheels
Name: OEM 1.9" Stamped Steel Beadlock Wheels
Hub: 12mm Hex
Width:24.3mm
OD: 48.3mm
Features: Stamped Steel, Aluminum Hubs, Internal Beadlock, Scale 6 Lug Design

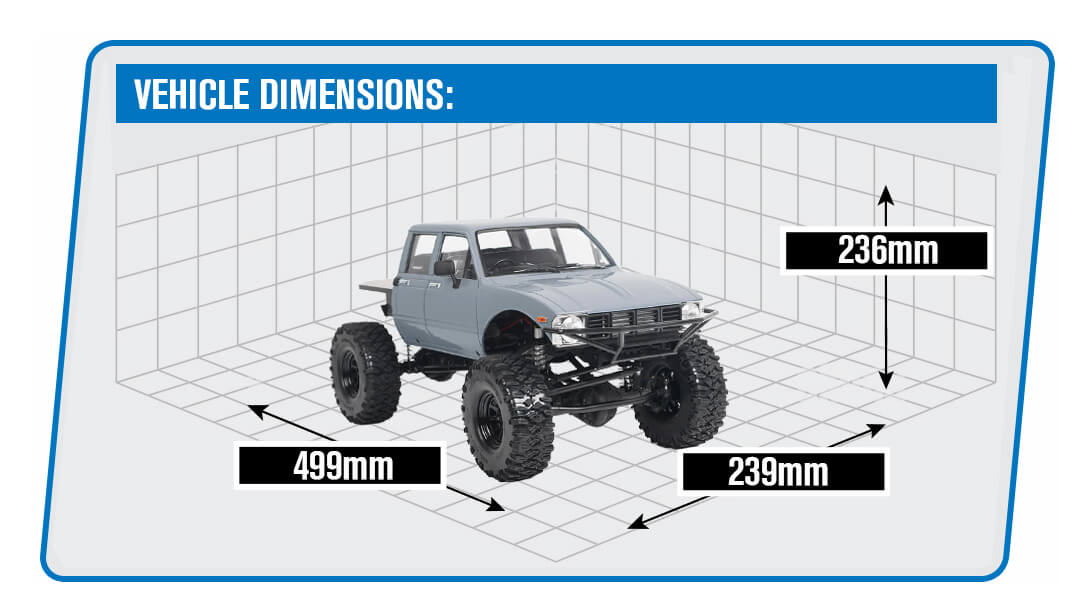

Truck Dimensions
Wheelbase: 318mm (12.5")
Length: 499mm( 19.6")
Width: 239mm (9.4")
Height: 236mm (9.3")
Ground Clearance: 74mm (2.9")
Final Drive Ratio: 34.9:1
Weight: 7.60Lbs/3.45Kg
